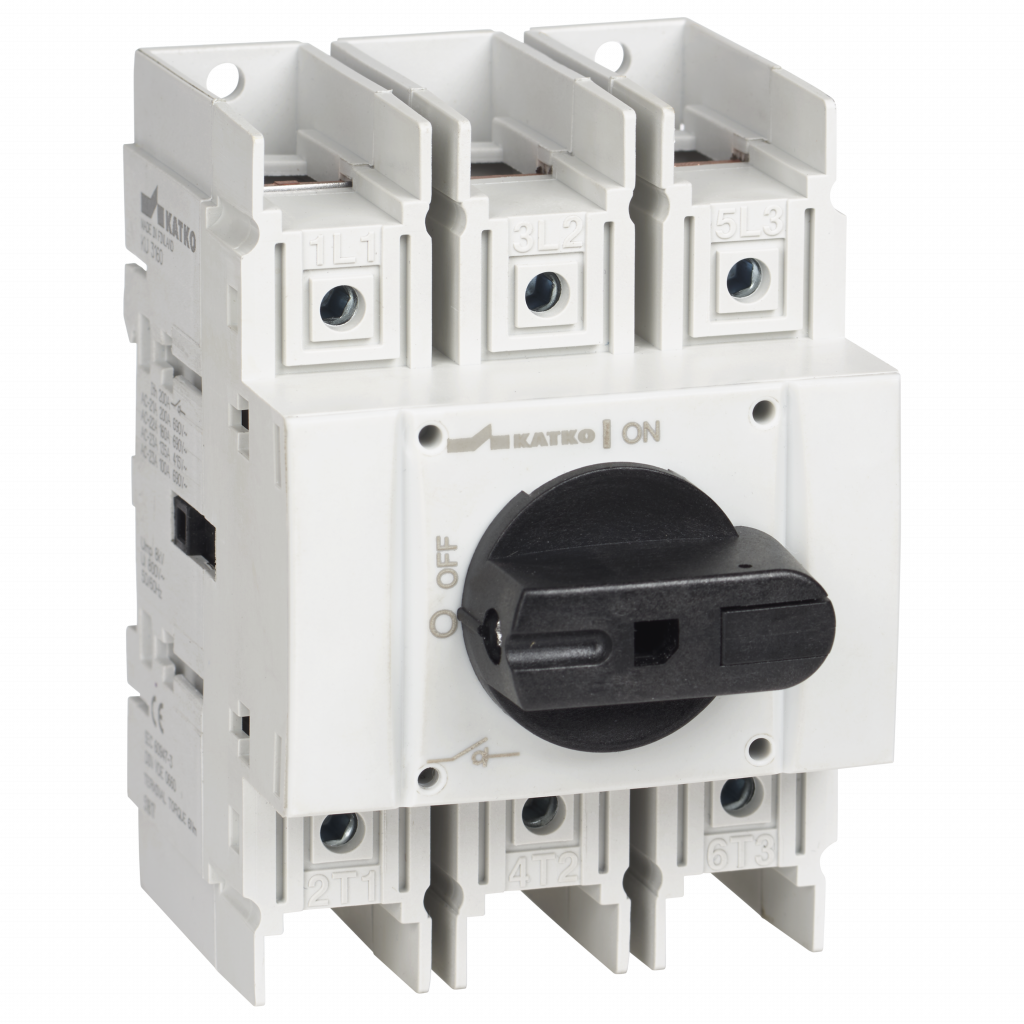

Katko UL 98 listed load break switches 30–100A are modular solutions for safe and reliable load switching in industrial and building installations. Designed for 600 VAC applications, they provide clear disconnection and dependable operation where compliance and safety are essential.
The switches feature silver contact technology, operator-independent switching speed and a lockable OFF position to enhance safety. With high short-circuit withstand capability and UL 98 certification, these load break switches deliver reliable performance in demanding North American applications.
GTIN
6419410203729
Ampere rating 600V
100
HP 600V
75

Product details and documents
Technical data
Ampere rating 600V
100.0
Depth
87 mm
ETIM Class
EC000216
GTIN
6419410203729
Height
100 mm
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name
UL98-listed,Rotary switch, 3-pole
Net weight
0.31 kg
Number of poles
3
Product type
KU 3100UL98
Short product description
Load break switch 3x100A UL98-listed
Technical name
3x100A 400V 55kW
UL
UL98
Volume
0.609 l
Width
70 mm
Wire size Cu
14-1/0 AWG
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
87 mm
Package size 1 GTIN code
6419410203729
Package size 1 height
100 mm
Package size 1 volume
0.7569 l
Package size 1 weight
0.3074 kg
Package size 1 width
87 mm
Sales unit
1
