Katko UL 98 listed load break switches 30–100A are modular solutions for safe and reliable load switching in industrial and building installations. Designed for 600 VAC applications, they provide clear disconnection and dependable operation where compliance and safety are essential.
The switches feature silver contact technology, operator-independent switching speed and a lockable OFF position to enhance safety. With high short-circuit withstand capability and UL 98 certification, these load break switches deliver reliable performance in demanding North American applications.
GTIN
6419410203798
Ampere rating 600V
60
HP 600V
60

Product details and documents
Technical data
Ampere rating 600V
60.0
Depth
103 mm
ETIM Class
EC000216
GTIN
6419410203798
Height
100 mm
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
Long product name

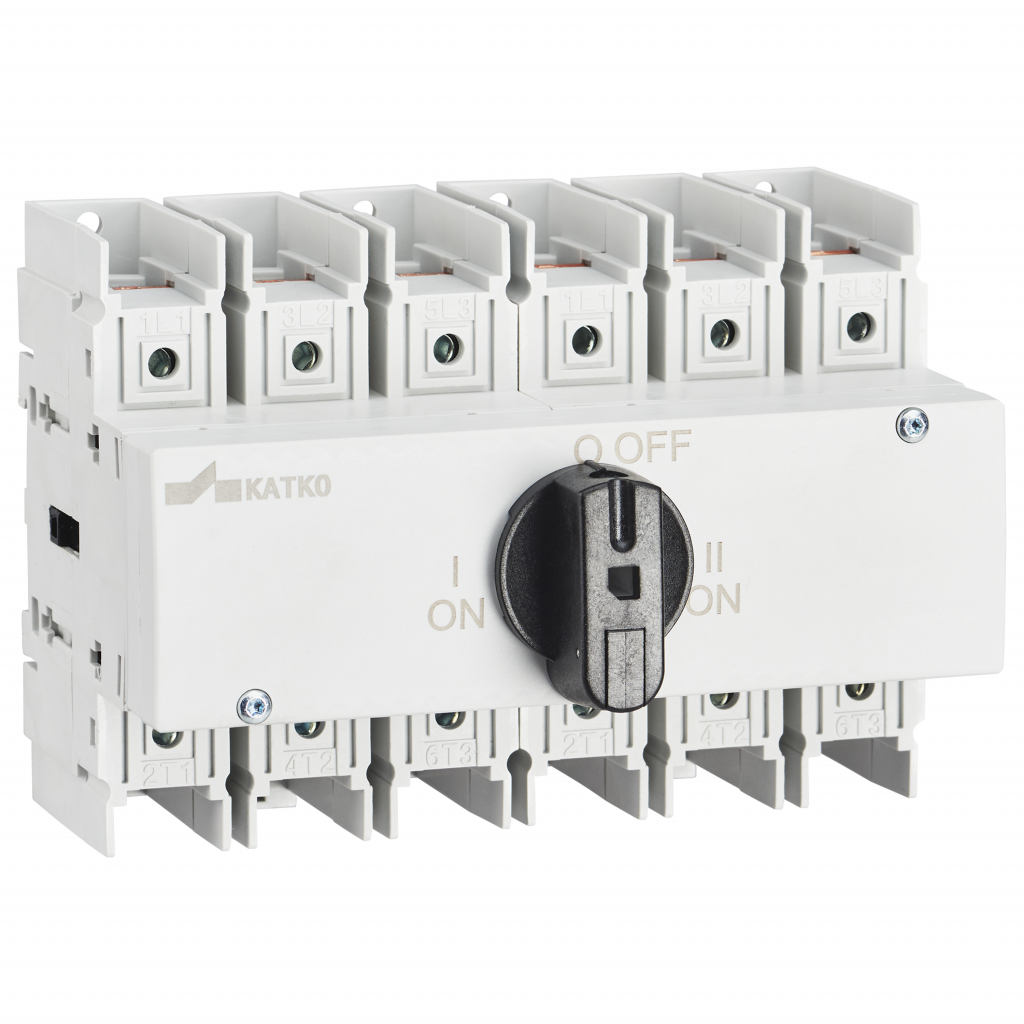

UL98-listed,Rotary switch, Changeover switch with 1-0-2 positions, 3-pole
Net weight
0.43 kg
Number of poles
3
Product type
KU 360COUL98
Short product description
Change-over switch 1-0-2 3x60A UL98-listed
Technical name
3x40A 400V 30kW
UL
UL98
Volume
1.442 l
Width
140 mm
Wire size Cu
14-1/0 AWG
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
103 mm
Package size 1 GTIN code
6419410203798
Package size 1 height
100 mm
Package size 1 volume
1.0609 l
Package size 1 weight
0.4293 kg
Package size 1 width
103 mm
Sales unit
1
Downloadables
- Dimensional drawings media (baceea3c7210bb077f91632926d7474d61887a0d_LoadSafe_KU3P_100_160_CO_Dim.png)
- Brochures (4c8f06d638a121ff864ef932f16f3b2de91e7803_KATKO_LoadSafe_catalogue_102024_en.pdf)
- Brochures (4e35c4a88ba0a39ae59459765a5755dd5d53529c_KATKO_LoadSafe_catalogue_082022_fi.pdf)
- Installation manuals (81a5fc0ca58463107a82e453f734c61166ea232c_KATKO_LoadSafe_KU_100_160_installation_manual_80_en.pdf)
- Installation manuals (072850cf2babfa92cb5ebfe8d8af3426440dcbb1_KATKO_LoadSafe_KU_100_160_accessories_installation_manual_77_en.pdf)
