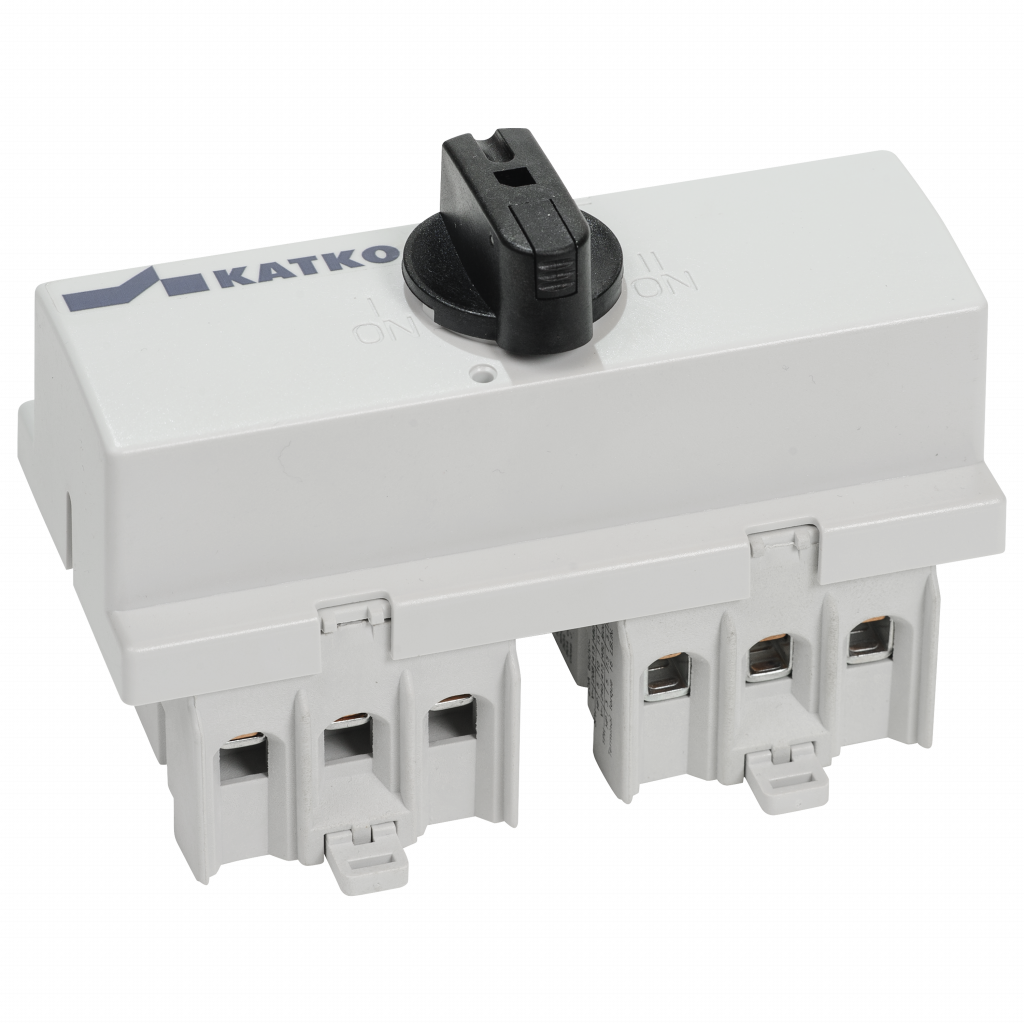

KU 380VV

Change-over switch 1-0-2 3x80A

KU 380VV

Katko LoadSafe changeover switches 16–125A (N) provide flexible and reliable power source switching for a wide range of electrical distribution applications. Available in multiple configurations and compatible with a broad selection of accessories, they support both standard installations and demanding industrial use.

Clear operation and robust design ensure safe switching and dependable performance over long service life.

Numer produktu
22672
E-number FI
3609260
GTIN
6419410226728
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 690V (A)
80
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
134 mm
ETIM Class
EC000216
E-number FI
3609260
GTIN
6419410226728
Height
93 mm
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
0.5274 kg
Nom. values w/cable size (mm²)
35
Number of poles
3
Product type
KU 380VV
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.7
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ith (A)
100
Short product description
Change-over switch 1-0-2 3x80A
Switch type
Load Break Switch
Technical name
3x80A 690V AC-22
Terminals bolt size (Cu mm²)
2.5..35
Volume
0.5608 l
Width
45 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
134 mm
Package size 1 GTIN code
6419410226728
Package size 1 height
93 mm
Package size 1 volume
1.6699 l
Package size 1 weight
0.5274 kg
Package size 1 width
134 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
