KU 4160PW SV

Load break switch 4x160A with direct handle

KU 4160PW SV

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

Numer produktu
20553
E-number FI
3609230
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 690V (A)
160
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410205532
Depth
150 mm
ETIM Class
EC000216
E-number FI
3609230
Height
113 mm
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
1.9119 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KU 4160PW SV
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
1280
Rated breaking cap. ICN AC-23A 690V (A)
1280
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
160
Rated operational current AC-23A 690V (A)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
132
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
200
Short product description
Load break switch 4x160A with direct handle
Switch type
Load Break Switch
Technical name
4x160A 690V AC-22
Terminals bolt size (Cu mm²)
M8
Volume
3.2544 l
Width
192 mm

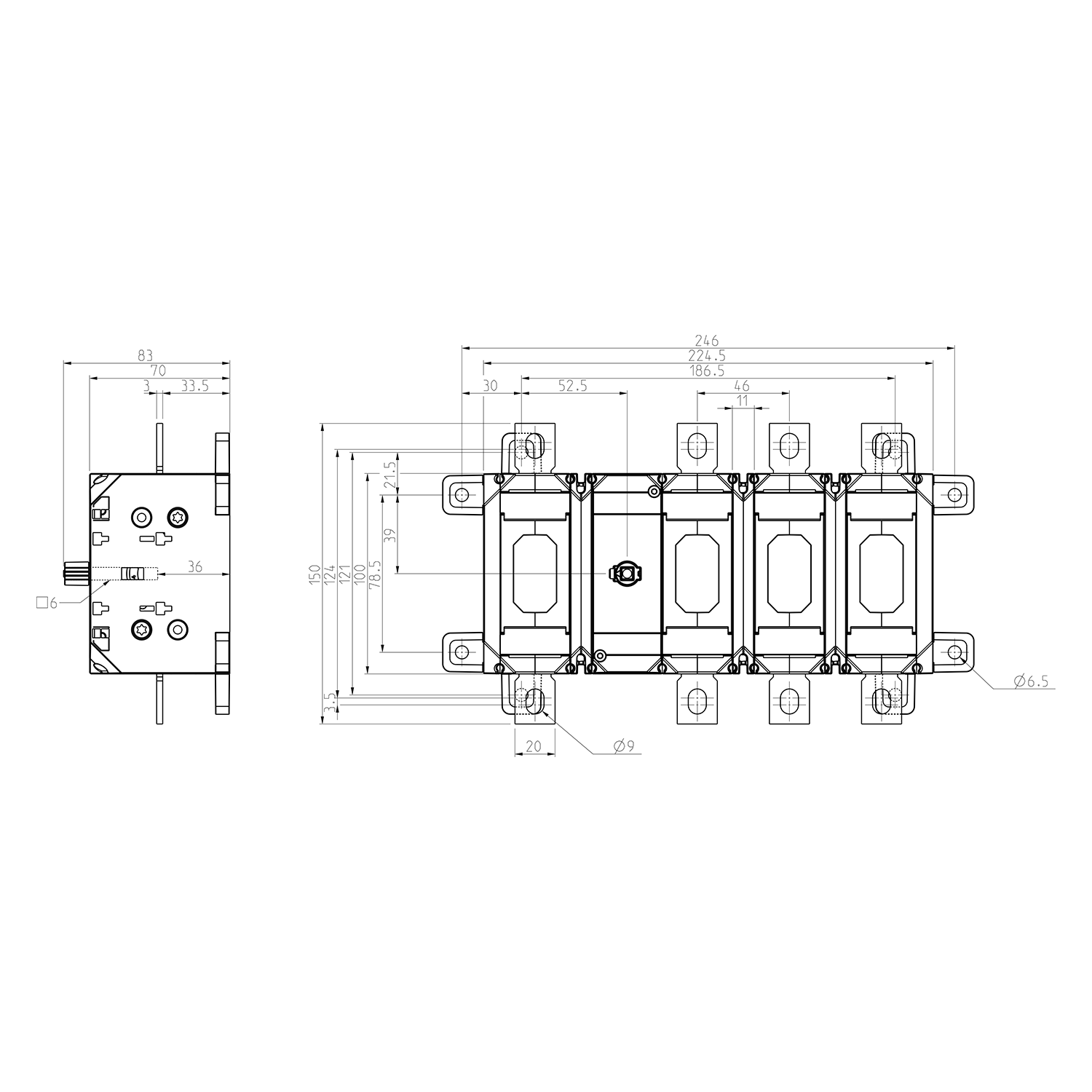

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410205532
Package size 1 height
113 mm
Package size 1 volume
2.5425 l
Package size 1 weight
1.9119 kg
Package size 1 width
150 mm
Sales unit
1

Downloadables

Unlock content
