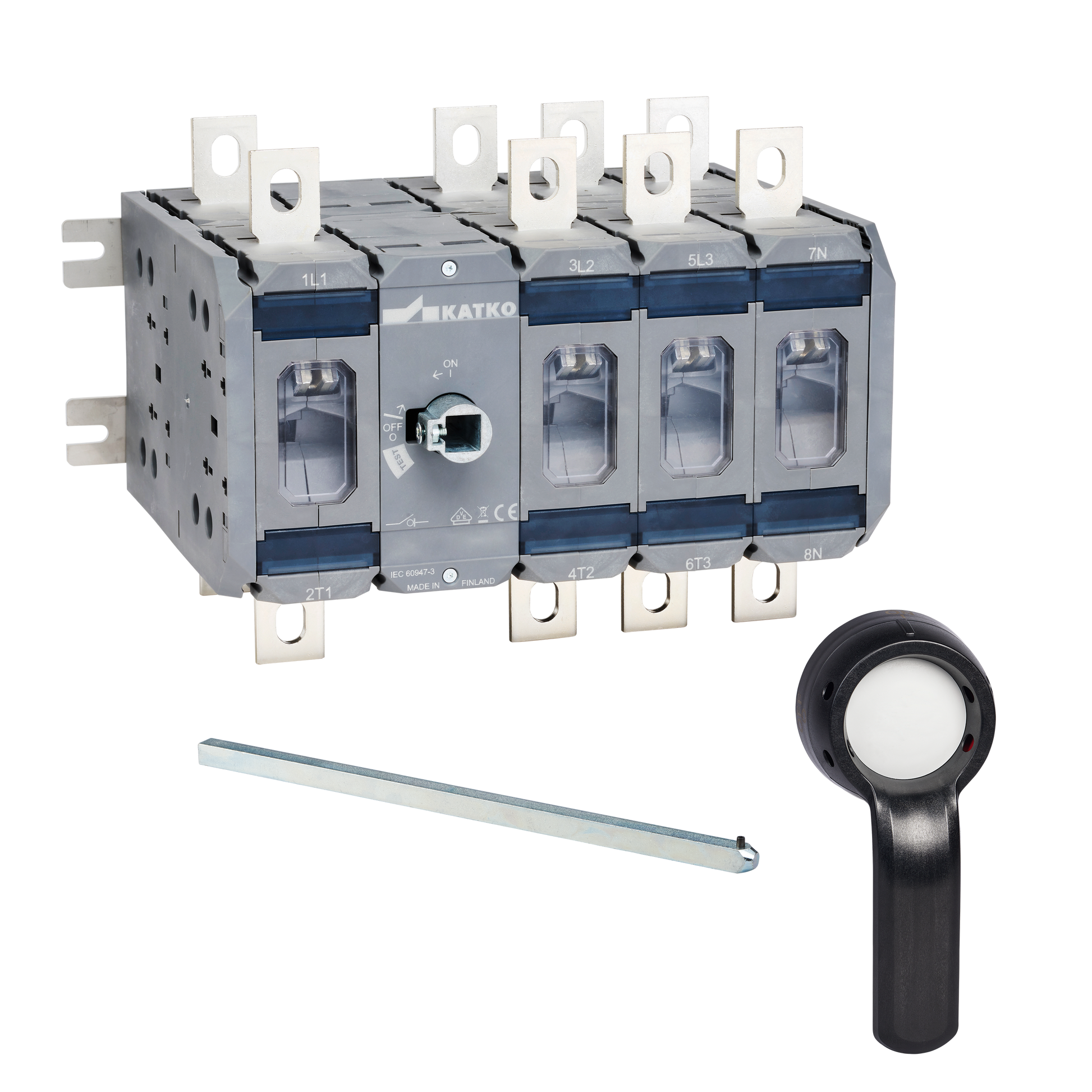

KU 4315CO LVK228LKX150

Change-over switch 1-0-2 4x315A

KU 4315CO LVK228LKX150

KATKO LoadSafe changeover switches 160–800A are high-capacity solutions designed for demanding industrial and power distribution applications where continuity of supply is critical. They support reliable switching between power sources in high-current systems.

Built for durability and long-term performance, these switches deliver dependable operation in installations where safety, reliability and uptime cannot be compromised.

Numer produktu
30026
E-number FI
3602933
GTIN
6419410300268
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 690V (A)
315
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410300268
colour
Grey/Black
Depth
185 mm
ETIM Class
EC000216
E-number FI
3602933
Height
185 mm
item_relevance
2631
Max. term. torque (Nm)
30..44
Mech. endurance (no. of oper.)
10000
Net weight
7.6362 kg
Nom. values w/cable size (mm²)
185
Number of poles
4
Product type
KU 4315CO LVK228LKX150
Rated breaking cap. ICN AC-23A 415V (A)
2520
Rated breaking cap. ICN AC-23A 500V (A)
2520
Rated breaking cap. ICN AC-23A 690V (A)
2520
Rated fused short-ckt current back-up fuse opt 1 (A)
400
Rated fused short-ckt current peak value (kA)
42
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
315
Rated operational current AC-21A 500V (A)
315
Rated operational current AC-21A 690V (A)
315
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 500V (A)
315
Rated operational current AC-22A 690V (A)
315
Rated operational current AC-23A 415V (A)
315
Rated operational current AC-23A 500V (A)
315
Rated operational current AC-23A 690V (A)
315
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
315
Rated short-ckt. making cap. Icm 690V (kA)
27.5
Rated short-time withstand current 1s Icw 1000V (kA)
13.5
Rated therm. current Ith (A)
315
Short product description
Change-over switch 1-0-2 4x315A
Switch type
Load Break Switch
Terminals bolt size (Cu mm²)
M10
Volume
8.4878 l
Width
248 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
185 mm
Package size 1 GTIN code
6419410300268
Package size 1 height
185 mm
Package size 1 volume
6.3316 l
Package size 1 weight
7.6362 kg
Package size 1 width
185 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.

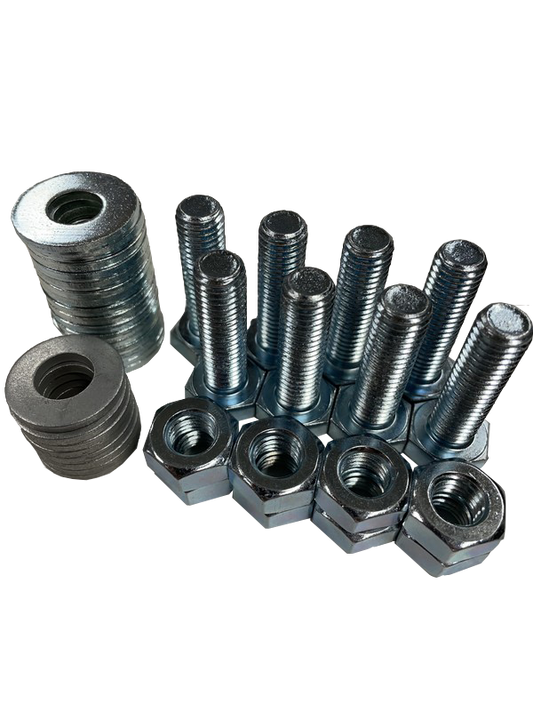

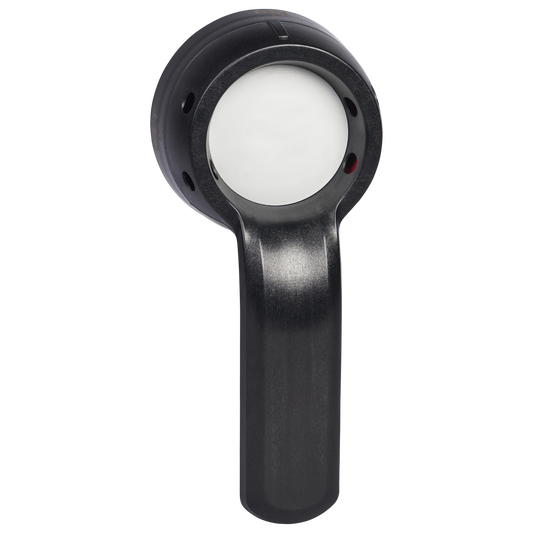

Related accessories
