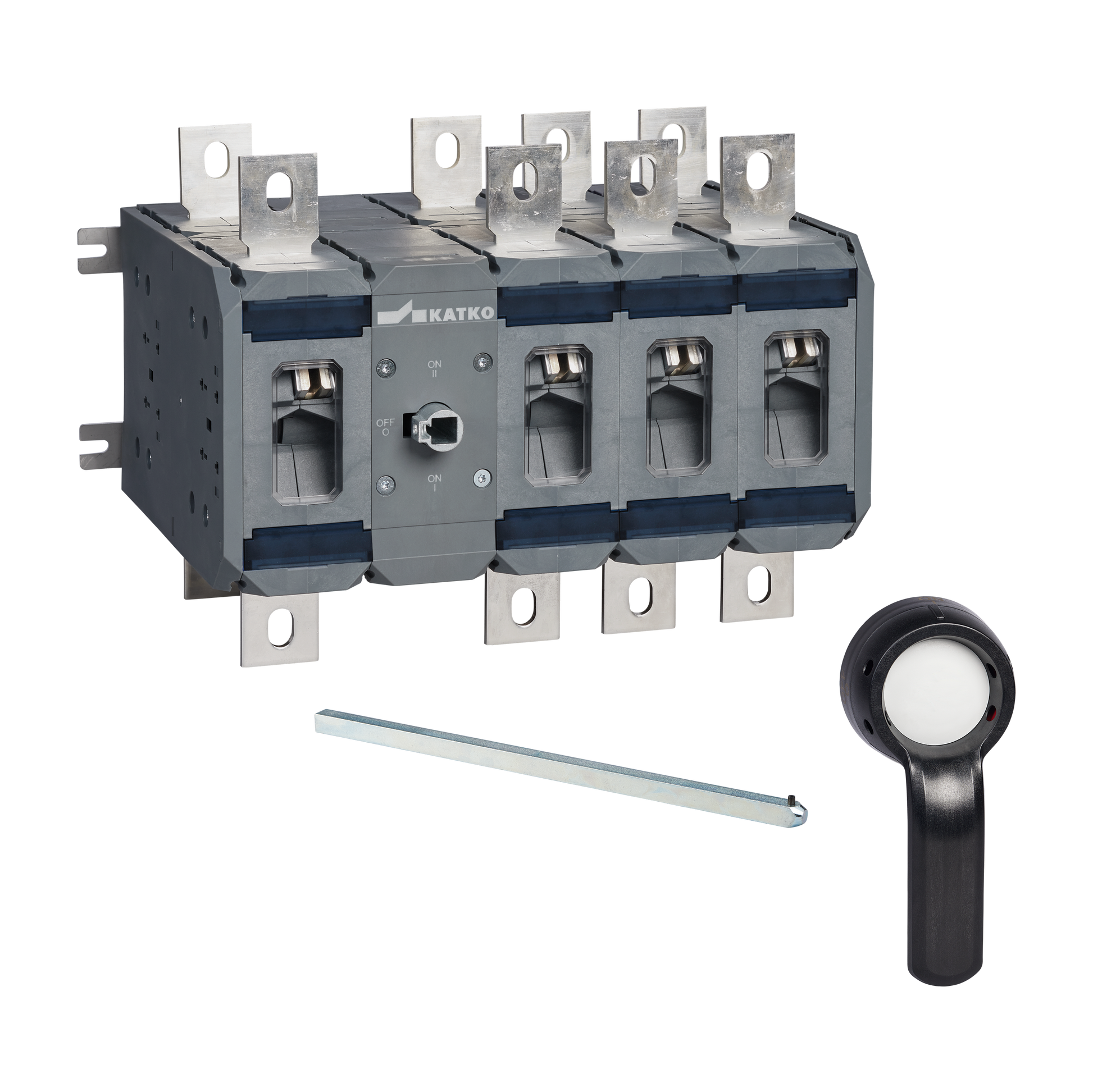

KU 4800CO LVK228LKX150

Change-over switch 1-0-2 4x800A

KU 4800CO LVK228LKX150

KATKO LoadSafe changeover switches 160–800A are high-capacity solutions designed for demanding industrial and power distribution applications where continuity of supply is critical. They support reliable switching between power sources in high-current systems.

Built for durability and long-term performance, these switches deliver dependable operation in installations where safety, reliability and uptime cannot be compromised.

Numer produktu
48373
E-number FI
3602849
GTIN
6419410483732
Rated operational current AC-22A 415V (A)
800
Rated operational current AC-22A 690V (A)
800
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410483732
colour
Grey/Black
Depth
366 mm
ETIM Class
EC000216
E-number FI
3602849
Height
253 mm
item_relevance
906
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Net weight
17.0928 kg
Nom. values w/cable size (mm²)
2*300
Number of poles
4
Product type
KU 4800CO LVK228LKX150
Rated breaking cap. ICN AC-23A 415V (A)
6400
Rated breaking cap. ICN AC-23A 500V (A)
6400
Rated breaking cap. ICN AC-23A 690V (A)
6400
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
800
Rated operational current AC-21A 500V (A)
800
Rated operational current AC-21A 690V (A)
800
Rated operational current AC-22A 415V (A)
800
Rated operational current AC-22A 500V (A)
800
Rated operational current AC-22A 690V (A)
800
Rated operational current AC-23A 1000V (A)
400
Rated operational current AC-23A 240V (A)
800
Rated operational current AC-23A 415V (A)
800
Rated operational current AC-23A 500V (A)
800
Rated operational current AC-23A 690V (A)
800
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
560
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
800
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ith (A)
800
Short product description
Change-over switch 1-0-2 4x800A
Switch type
Load Break Switch
Terminals bolt size (Cu mm²)
M12
Volume
23.9829 l
Width
259 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
366 mm
Package size 1 GTIN code
6419410483732
Package size 1 height
253 mm
Package size 1 volume
33.8909 l
Package size 1 weight
17.0928 kg
Package size 1 width
366 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
