KU 6100

Load break switch 6x100A

KU 6100

Katko LoadSafe load break switches 100–160 A are robust solutions for medium-capacity power distribution and motor isolation applications. Featuring a modular design and compatibility with a wide selection of accessories, they support a broad range of installation requirements. Switch technology based on silver contacts ensures safe and durable operation, while compliance with international safety and quality standards guarantees consistent performance in demanding industrial environments.

Numer produktu
20352
E-number FI
3600794
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 690V (A)
100
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410203521
Depth
140 mm
ETIM Class
EC000216
E-number FI
3600794
Height
103 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
1.1331 kg
Nom. values w/cable size (mm²)
70
Number of poles
6
Product type
KU 6100
Rated breaking cap. ICN AC-23A 415V (A)
800
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ith (A)
125
Short product description
Load break switch 6x100A
Switch type
Load Break Switch
Technical name
6x100A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
Volume
1.442 l
Width
100 mm

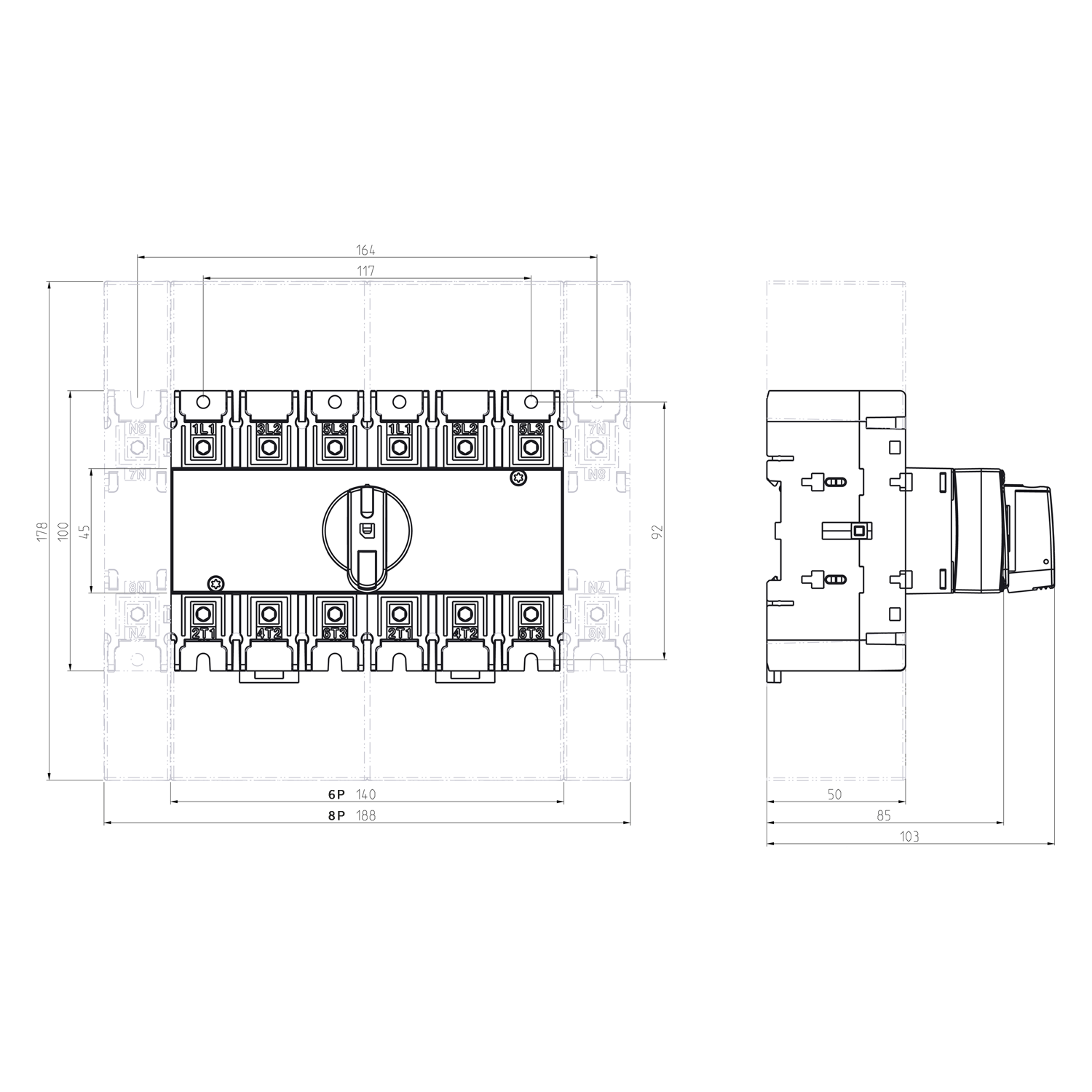

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
140 mm
Package size 1 GTIN code
6419410203521
Package size 1 height
103 mm
Package size 1 volume
2.0188 l
Package size 1 weight
1.1331 kg
Package size 1 width
140 mm
Sales unit
1
