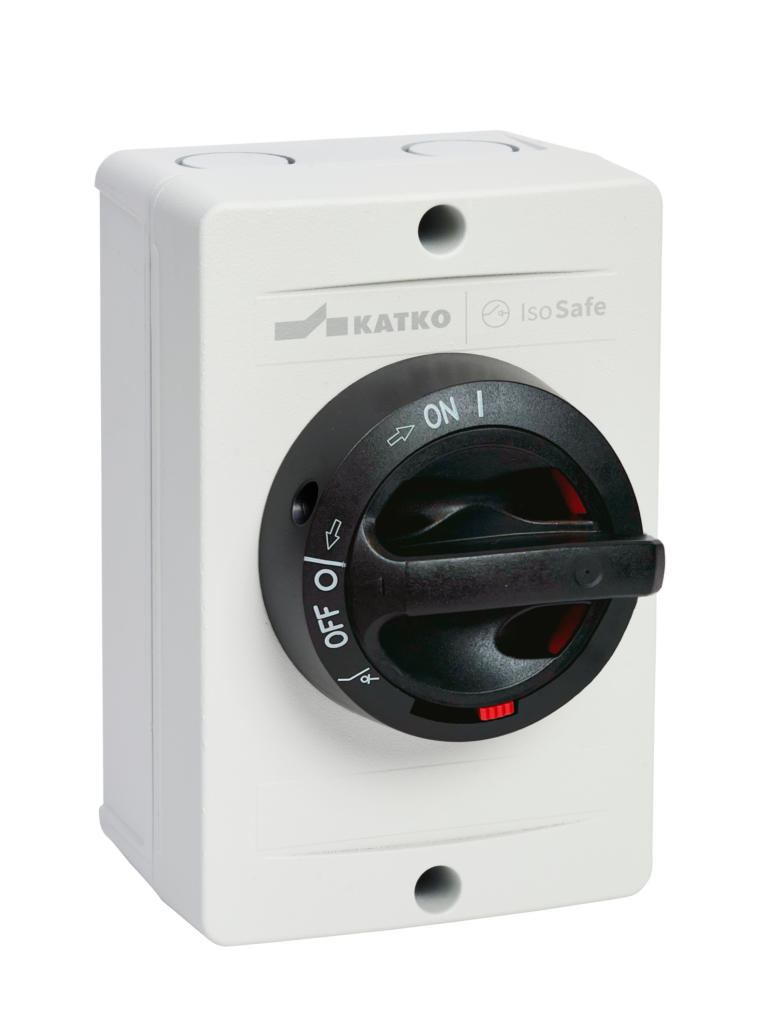

- KUA 316 1V A2EX 2XM25MEX M16MEX

- KUA 316 1V A2EX 2XM25MEX M16MEX

- KUA 316 1V A2EX 2XM25MEX M16MEX

E-number FI
3602802
GTIN
6419410305836
Rated operational current AC-23A 415V (A)
20
Enclosure type
Aluminium enclosure
Enclosure
A2EX
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M25 (11,0-17,0 mm), metal EX; 1 x M16 (5,0-10,0 mm), metal EX
Depth
79.5 mm
EMC
false
Enclosure
A2EX
Enclosure type
Aluminium enclosure
ETIM Class
EC000522
EX
true
E-number FI
3602802
GTIN
6419410305836
Height
158.5 mm
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
1.1411 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
- KUA 316 1V A2EX 2XM25MEX M16MEX
Rated breaking cap. ICN AC-23A 415V (A)
160
Rated breaking cap. ICN AC-23A 500V (A)
160
Rated breaking cap. ICN AC-23A 690V (A)
160
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6.1
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
20
Rated operational current AC-23A 500V (A)
20
Rated operational current AC-23A 690V (A)
20
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
15
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Switch type
Load Break Switch
Technical name
3x20A 400V ATEX II 3D
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3105 l
Width
104 mm
