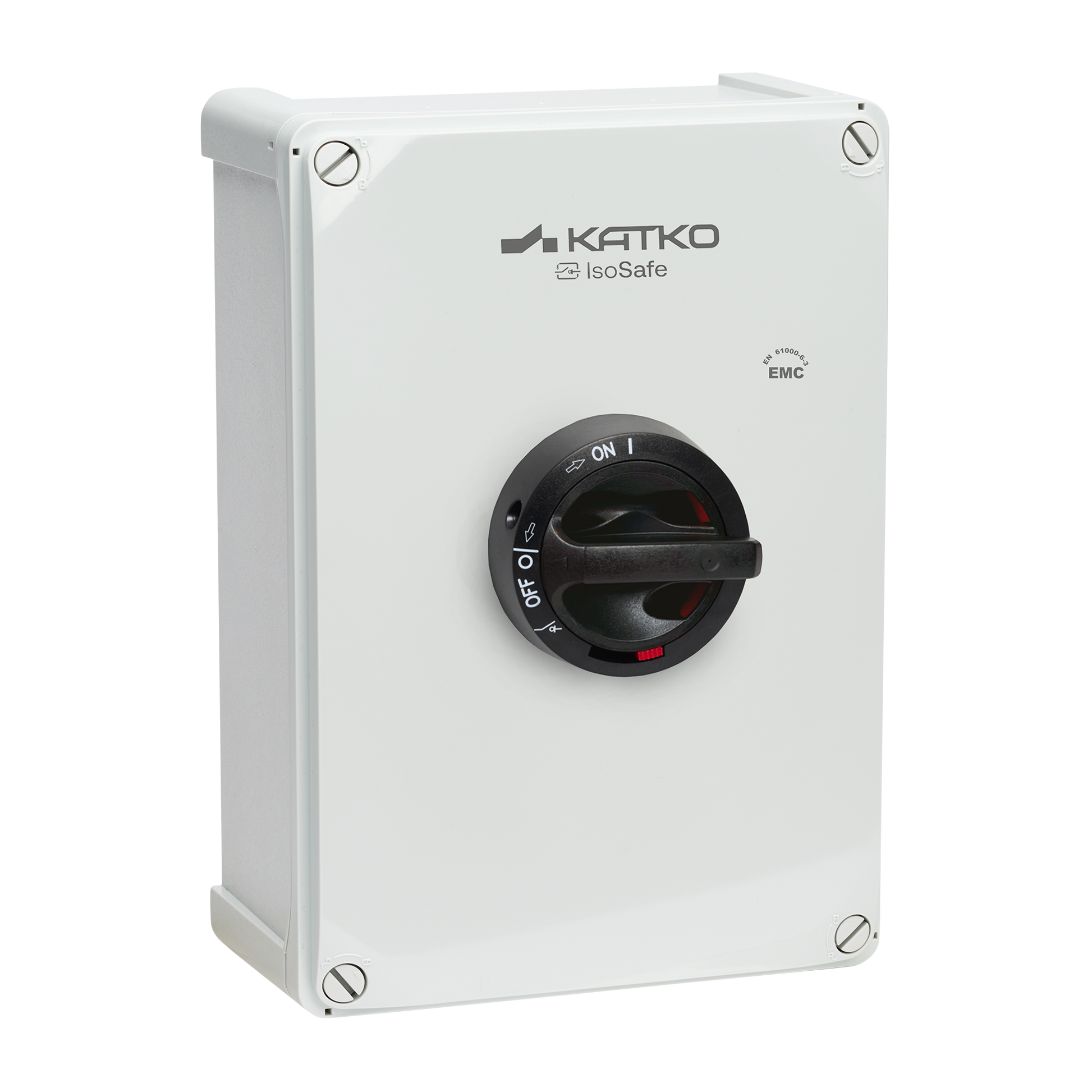

KUM 380 1V M4EMC 2XM40MEMC M16P

Isolating switch EMC 3x80A IP66 1NO/1NC

KUM 380 1V M4EMC 2XM40MEMC M16P

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

Numer produktu
36022
E-number FI
3603089
Rated operational current AC-23A 415V (A)
80
Enclosure type
Polycarbonate
Enclosure
M4 (190 x 270 x 100 mm)
Mounted auxiliary contacts
1NO/1NC
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410360224
Cable entries
2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), plastic
Depth
100 mm
EMC
true
Enclosure
M4 (190 x 270 x 100 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3603089
Height
270 mm
IP rating
IP66
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Mounted auxiliary contacts
1NO/1NC
Net weight
2.1562 kg
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
KUM 380 1V M4EMC 2XM40MEMC M16P
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
80
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Isolating switch EMC 3x80A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
3x80A 400V 45kW
Terminals bolt size (Cu mm²)
6..70
Volume
5.13 l
Width
190 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
100 mm
Package size 1 GTIN code
6419410360224
Package size 1 height
270 mm
Package size 1 volume
5.13 l
Package size 1 weight
2.1562 kg
Package size 1 width
190 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
