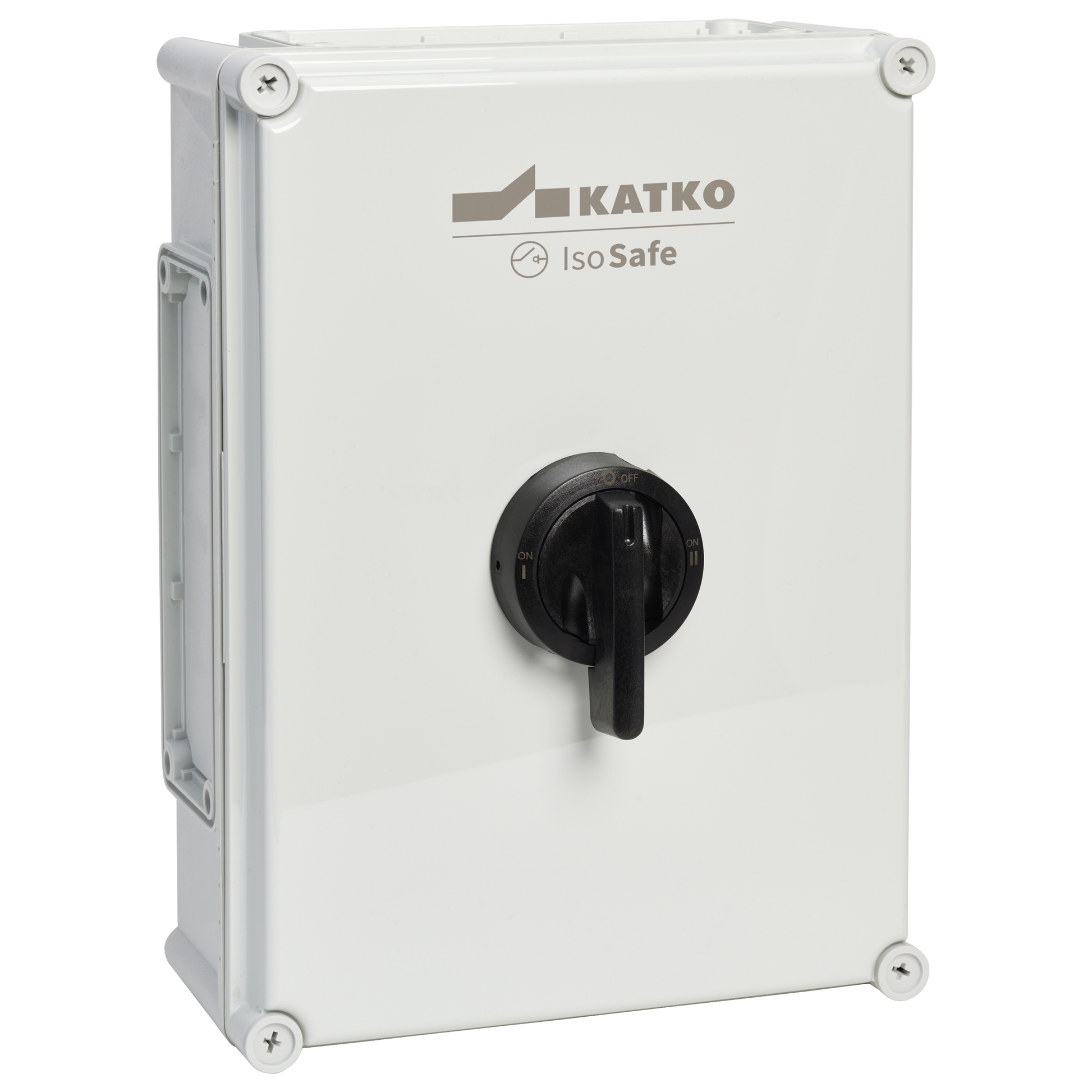

KUM 380CO MF01 3XM40P

Change-over switch 3x80A IP66

KUM 380CO MF01 3XM40P

Designed for safe and reliable power source switching, KATKO enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.

Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.

Numer produktu
26430
E-number FI
3610362
Rated operational current AC-23A 415V (A)
80
Enclosure type
Polycarbonate
Enclosure
MF01 (280 x 380 x 130 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410264300
Cable entries
3 x M40 (19,0-28,0 mm), plastic
colour
Grey/Black
Depth
130 mm
EMC
false
Enclosure
MF01 (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3610362
Height
380 mm
IP rating
IP66
item_relevance
5000
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
4.3524 kg
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
KUM 380CO MF01 3XM40P
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
80
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Change-over switch 3x80A IP66
Switch type
Load Break Switch
Terminals bolt size (Cu mm²)
6..70
Volume
13.832 l
Width
280 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
130 mm
Package size 1 GTIN code
6419410264300
Package size 1 height
380 mm
Package size 1 volume
13.832 l
Package size 1 weight
4.3524 kg
Package size 1 width
280 mm
Sales unit
1
