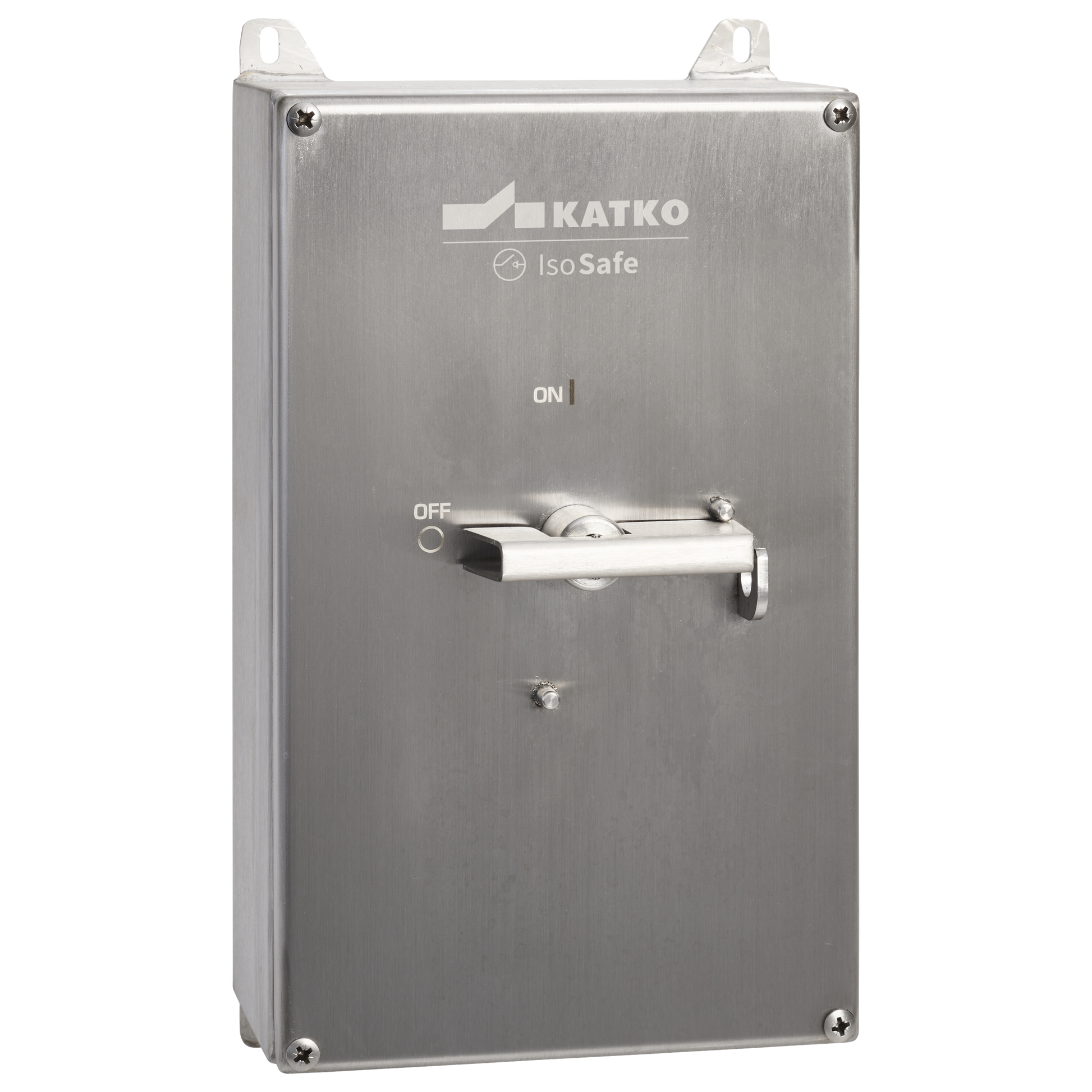

KUR 463 1V RA4R 2XM40M M16M

Isolating switch 4x63A IP66 1NO/1NC

KUR 463 1V RA4R 2XM40M M16M

Katko IsoSafe stainless steel enclosed safety switches are available in AISI 304 and AISI 316L, providing reliable isolation for demanding environments where corrosion resistance, hygiene and long service life are essential. The stainless steel enclosure withstands moisture, chemicals and aggressive cleaning agents, making it well suited for food, pharmaceutical and process industry applications, as well as harsh industrial environments.

A practical design and dependable safety features support safe operation and easy maintenance. Designed and manufactured in Finland, IsoSafe stainless steel switches are based on Katko’s extensive experience in demanding applications, meet international safety and quality standards, and deliver reliable electrical distribution where durability and performance matter.

Numer produktu
20009
E-number FI
3600324
Rated operational current AC-23A 415V (A)
63
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA4R (160 x 260 x 90 mm)
Mounted auxiliary contacts
1NO/1NC
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M40 (19,0-28,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
delivery_time
10
Depth
90 mm
EMC
false
Enclosure
RA4R (160 x 260 x 90 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
E-number FI
3600324
GTIN
6419410200094
Height
260 mm
IP rating
IP66
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO/1NC
Net weight
2.9101 kg
Nom. values w/cable size (mm²)
35
Number of poles
4
Product type
KUR 463 1V RA4R 2XM40M M16M
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.7
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
100
Rated therm. current Ith (A)
100
Short product description
Isolating switch 4x63A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
4x63A 400V 30kW
Terminals bolt size (Cu mm²)
2,5..35
Volume
3.744 l
Width
160 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
90 mm
Package size 1 GTIN code
6419410200094
Package size 1 height
260 mm
Package size 1 volume
3.744 l
Package size 1 weight
2.9101 kg
Package size 1 width
160 mm
Sales unit
1
