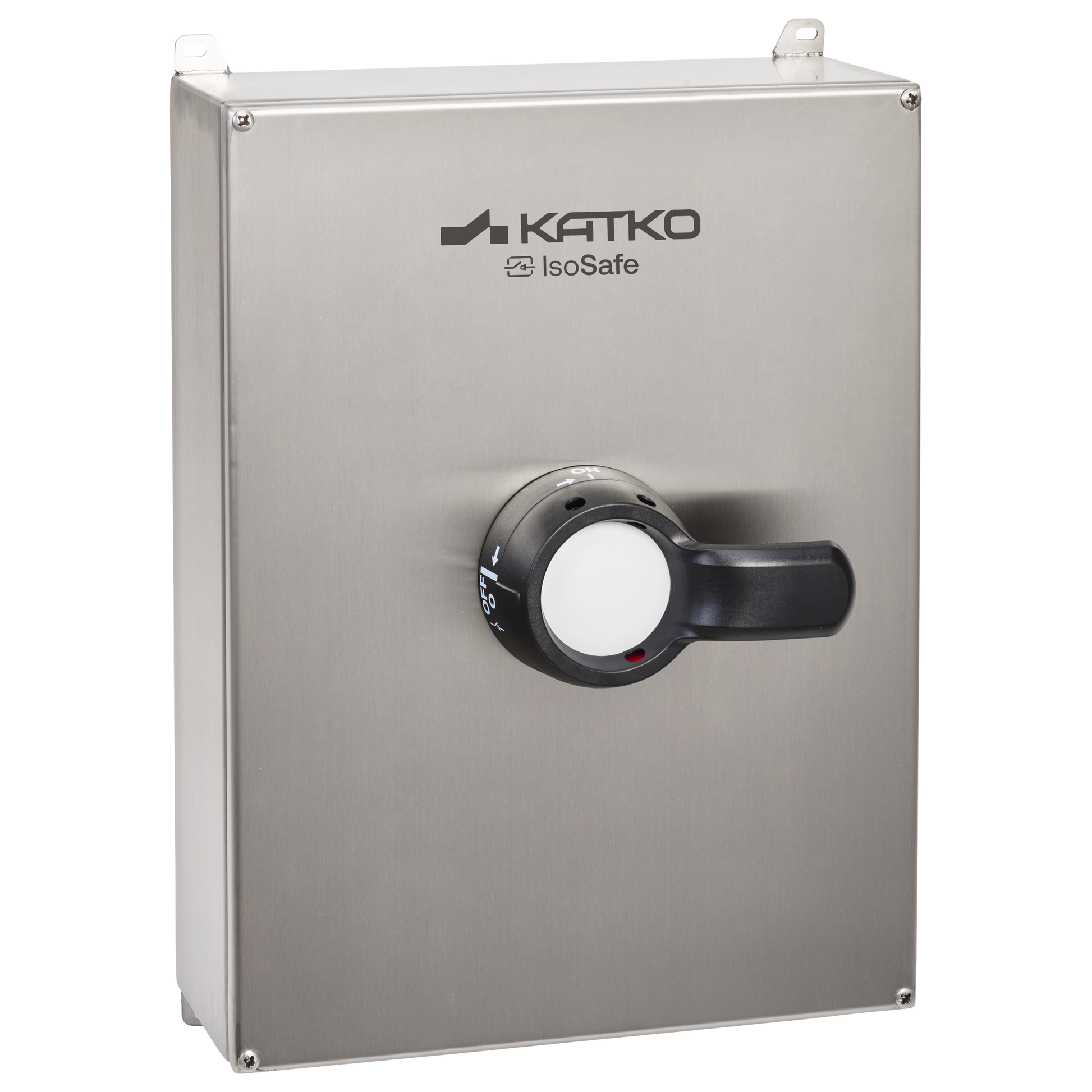

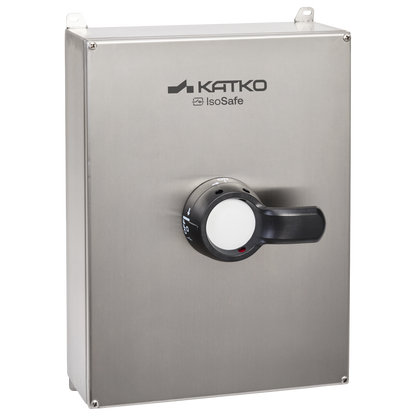

Isolating switch 6x80A IP66 1NO/1NC

KUR 680 1V RA5 4XM40M M16M

Isolating switch 6x80A IP66 1NO/1NC

Katko IsoSafe stainless steel enclosed safety switches are available in AISI 304 and AISI 316L, providing reliable isolation for demanding environments where corrosion resistance, hygiene and long service life are essential. The stainless steel enclosure withstands moisture, chemicals and aggressive cleaning agents, making it well suited for food, pharmaceutical and process industry applications, as well as harsh industrial environments.

A practical design and dependable safety features support safe operation and easy maintenance. Designed and manufactured in Finland, IsoSafe stainless steel switches are based on Katko’s extensive experience in demanding applications, meet international safety and quality standards, and deliver reliable electrical distribution where durability and performance matter.

E-number FI
3600879
GTIN
6419410372999
Rated operational current AC-23A 415V (A)
80
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA5 (300 x 400 x 120 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
4 x M40 (19,0-28,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Depth
120 mm
EMC
false
Enclosure
RA5 (300 x 400 x 120 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
E-number FI
3600879
GTIN
6419410372999
Height
400 mm
IP rating
IP66
Long product name
6-pole, Auxiliary contact 1NO/1NC, Acid-resistant stainless steel enclosure (AISI 316L); W300 x H400 x D120, Cable entries: 4 x M40 (19,0-28,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
7.3412 kg
Nom. values w/cable size (mm²)
70
Number of poles
6
Product type
KUR 680 1V RA5 4XM40M M16M
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
80
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Isolating switch 6x80A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
6x80A 400V 45kW
Terminals bolt size (Cu mm²)
6..70
Volume
14.4 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Sales unit
1
