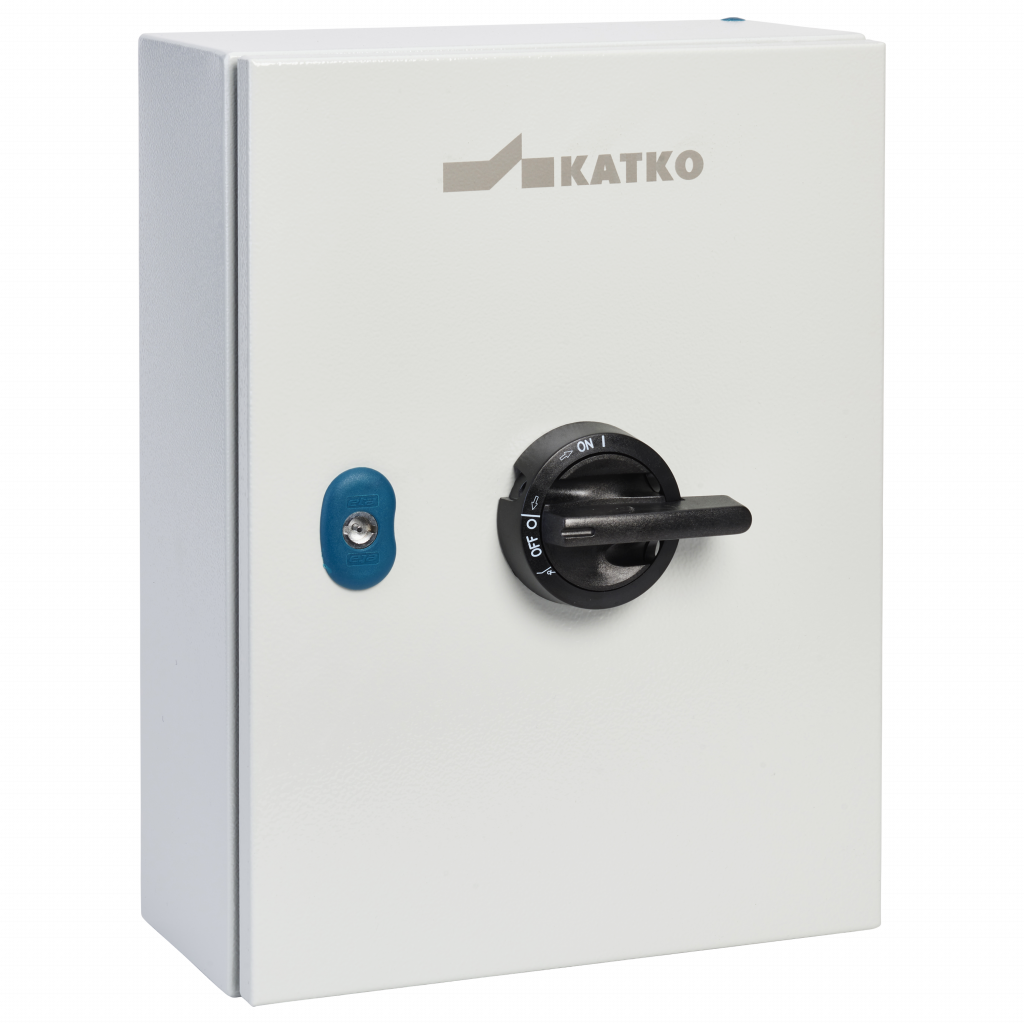

Isolating switch EMC 3x160A IP66 1NO/1NC

KUT 3160 1V T5EMC 2XM40MEMC M16M

Isolating switch EMC 3x160A IP66 1NO/1NC

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

E-number FI
3600855
GTIN
6419410372739
Rated operational current AC-23A 415V (A)
160
Enclosure type
Painted sheet steel
Enclosure
T5 (300 x 400 x 150 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Depth
150 mm
EMC
true
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
E-number FI
3600855
GTIN
6419410372739
Height
400 mm
IP rating
IP66
Long product name
3-pole, Auxiliary contact 1NO/1NC, Sheet steel enclosure; W300 x H400 x D150,EMC shielded, Cable entries: 2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
8.353 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KUT 3160 1V T5EMC 2XM40MEMC M16M
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch EMC 3x160A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
3x160A 400V 90kW
Terminals bolt size (Cu mm²)
6..70
Volume
18 l
Width
300 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410327623
Package size 1 height
760 mm
Package size 1 volume
106.4 l
Package size 1 weight
15.104 kg
Package size 1 width
560 mm
Sales unit
1
