Isolating switch 6x630A IP66 1NO/1NC

KUT 6630 1V T10 4XM63LM M16M

Isolating switch 6x630A IP66 1NO/1NC

Katko IsoSafe sheet steel enclosed safety switches are designed for demanding industrial applications where mechanical strength and operational reliability are critical. The robust sheet steel enclosure provides excellent protection against impact and external stress, ensuring safe and dependable operation in harsh environments.

Clear construction and reliable safety features support safe use and maintenance even in heavy-duty applications. Designed and manufactured in Finland, IsoSafe sheet steel switches reflect decades of industrial experience, meet international safety and quality standards, and are trusted wherever reliability cannot be compromised.

E-number FI
3600699
GTIN
6419410372500
Rated operational current AC-23A 415V (A)
630
Enclosure type
Painted sheet steel
Enclosure
T10 (800 x 1200 x 300 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
4 x M63L (37,0-53,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Depth
300 mm
EMC
false
Enclosure
T10 (800 x 1200 x 300 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
E-number FI
3600699
GTIN
6419410372500
Height
1200 mm
IP rating
IP66
Long product name
6-pole, Auxiliary contact 1NO/1NC, Sheet steel enclosure; W800 x H1200 x D300, Cable entries: 4 x M63L (37,0-53,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Net weight
61.6704 kg
Nom. values w/cable size (mm²)
2*185
Number of poles
6
Product type
KUT 6630 1V T10 4XM63LM M16M
Rated breaking cap. ICN AC-23A 415V (A)
5040
Rated breaking cap. ICN AC-23A 500V (A)
5040
Rated breaking cap. ICN AC-23A 690V (A)
5040
Rated fused short-ckt current back-up fuse opt 1 (A)
630
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
630
Rated operational current AC-21A 500V (A)
630
Rated operational current AC-21A 690V (A)
630
Rated operational current AC-22A 415V (A)
630
Rated operational current AC-22A 500V (A)
630
Rated operational current AC-22A 690V (A)
630
Rated operational current AC-23A 415V (A)
630
Rated operational current AC-23A 500V (A)
630
Rated operational current AC-23A 690V (A)
630
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
355
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
630
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ithe (A)
630
Rated therm. current Ith (A)
630
Short product description
Isolating switch 6x630A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
6x630A 400V 355kW
Terminals bolt size (Cu mm²)
M12
Volume
288 l
Width
800 mm

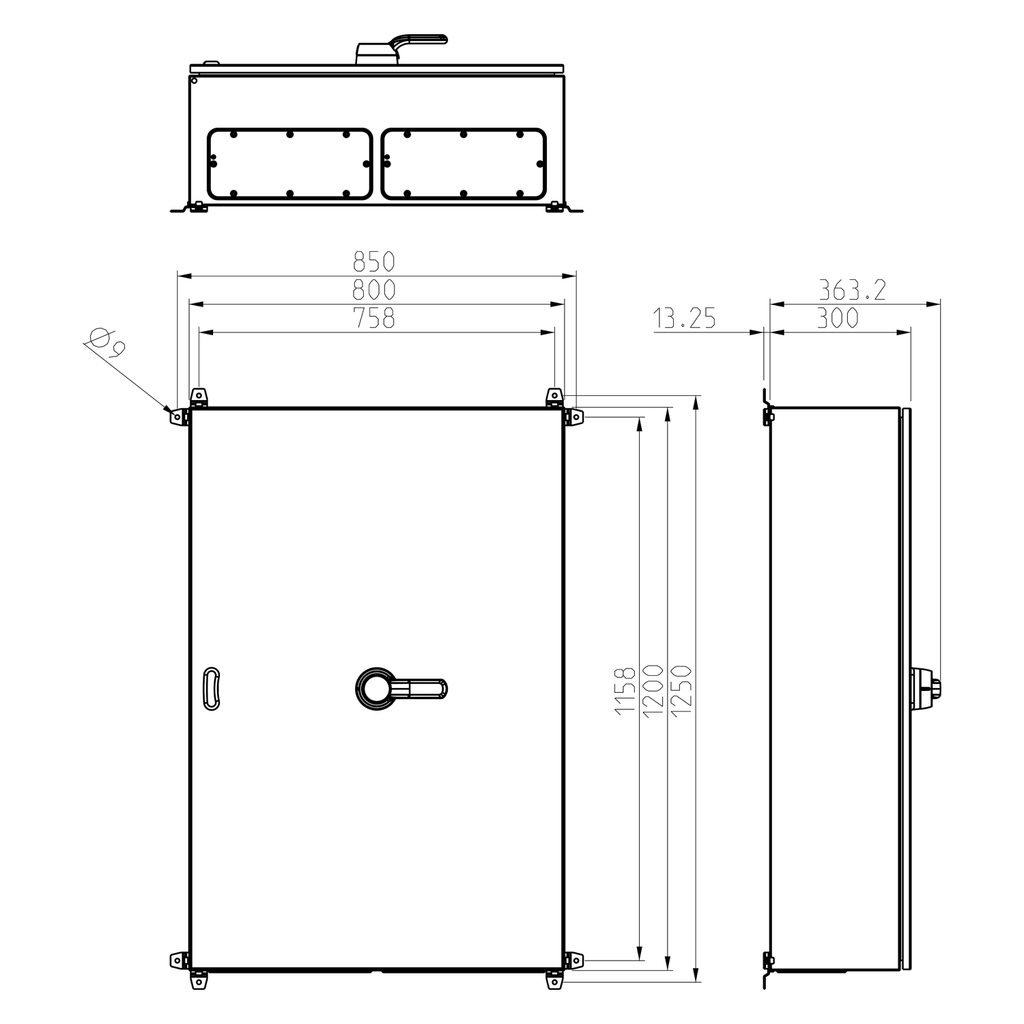

Dimensional drawing

Logistical data

Package size 1
1
Sales unit
1
