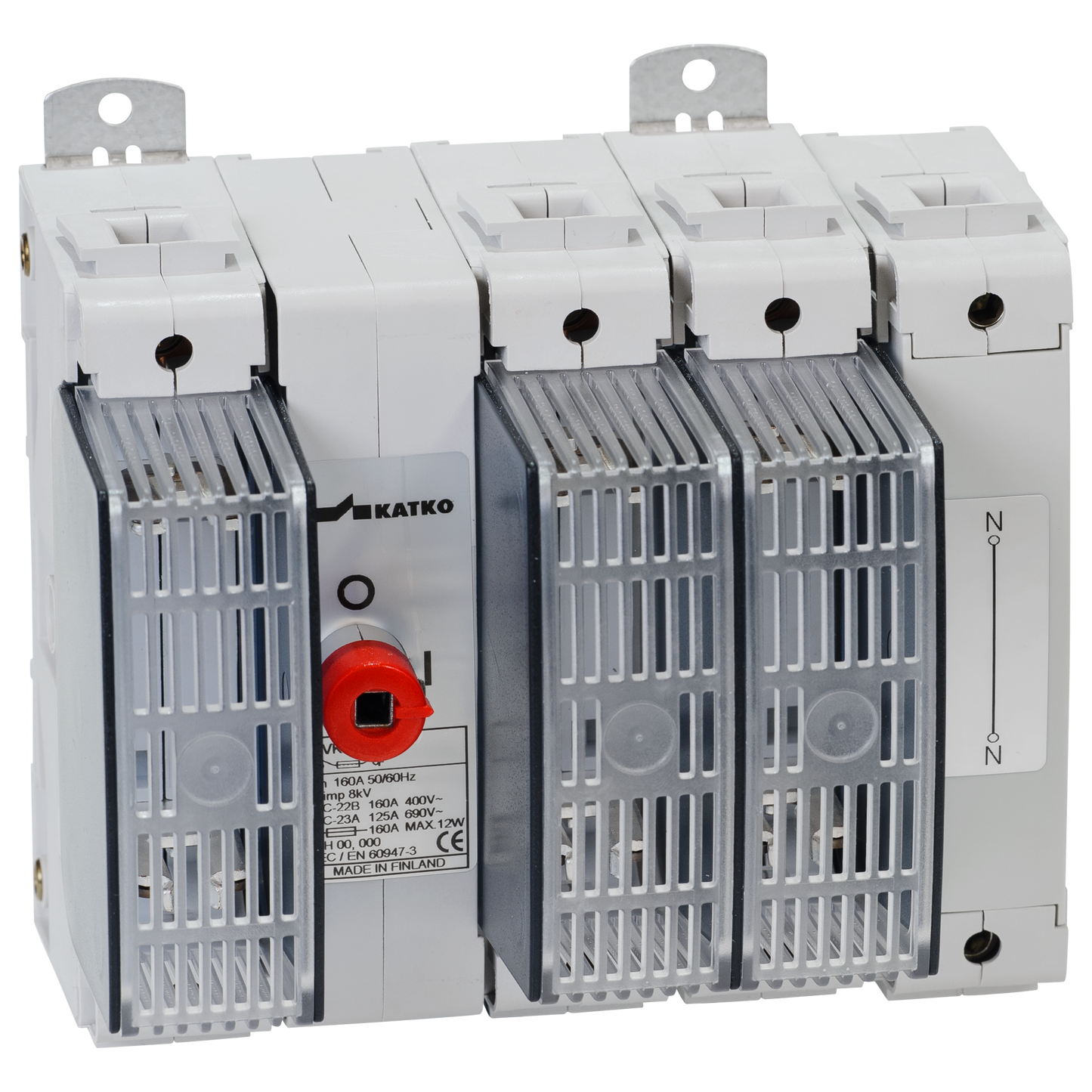

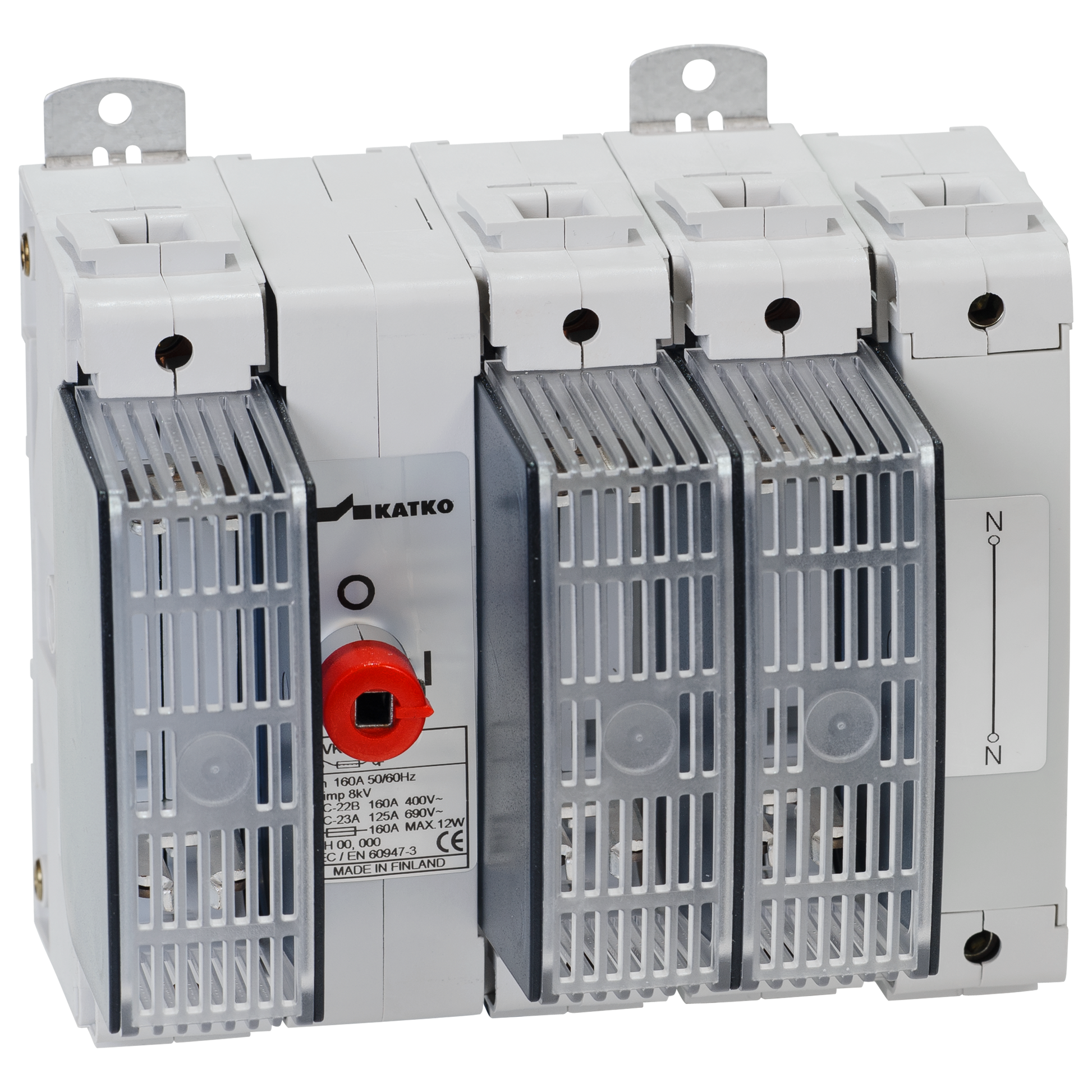

KVKE 3100NT L220AD12TLK12 SS

Switch fuse 3x100A solid neutral DIN 000/00

KVKE 3100NT L220AD12TLK12 SS

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

Numer produktu
28438
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 690V (A)
100
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
167 mm
ETIM Class
EC001040
Fuse type DIN
000/00
GTIN
6419410284384
Height
95 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
1.8485 kg
Nom. values w/cable size (mm²)
35
Number of poles
3
Product type
KVKE 3100NT L220AD12TLK12 SS
Rated breaking cap. ICN AC-23A 415V (A)
800
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
100
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ith (A)
100
Short product description
Switch fuse 3x100A solid neutral DIN 000/00
Switch type
Switch Fuse
Terminals bolt size (Cu mm²)
6..70
Volume
2.6177 l
Width
165 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
167 mm
Package size 1 GTIN code
6419410284384
Package size 1 height
95 mm
Package size 1 volume
2.6177 l
Package size 1 weight
1.8485 kg
Package size 1 width
165 mm
Sales unit
1
