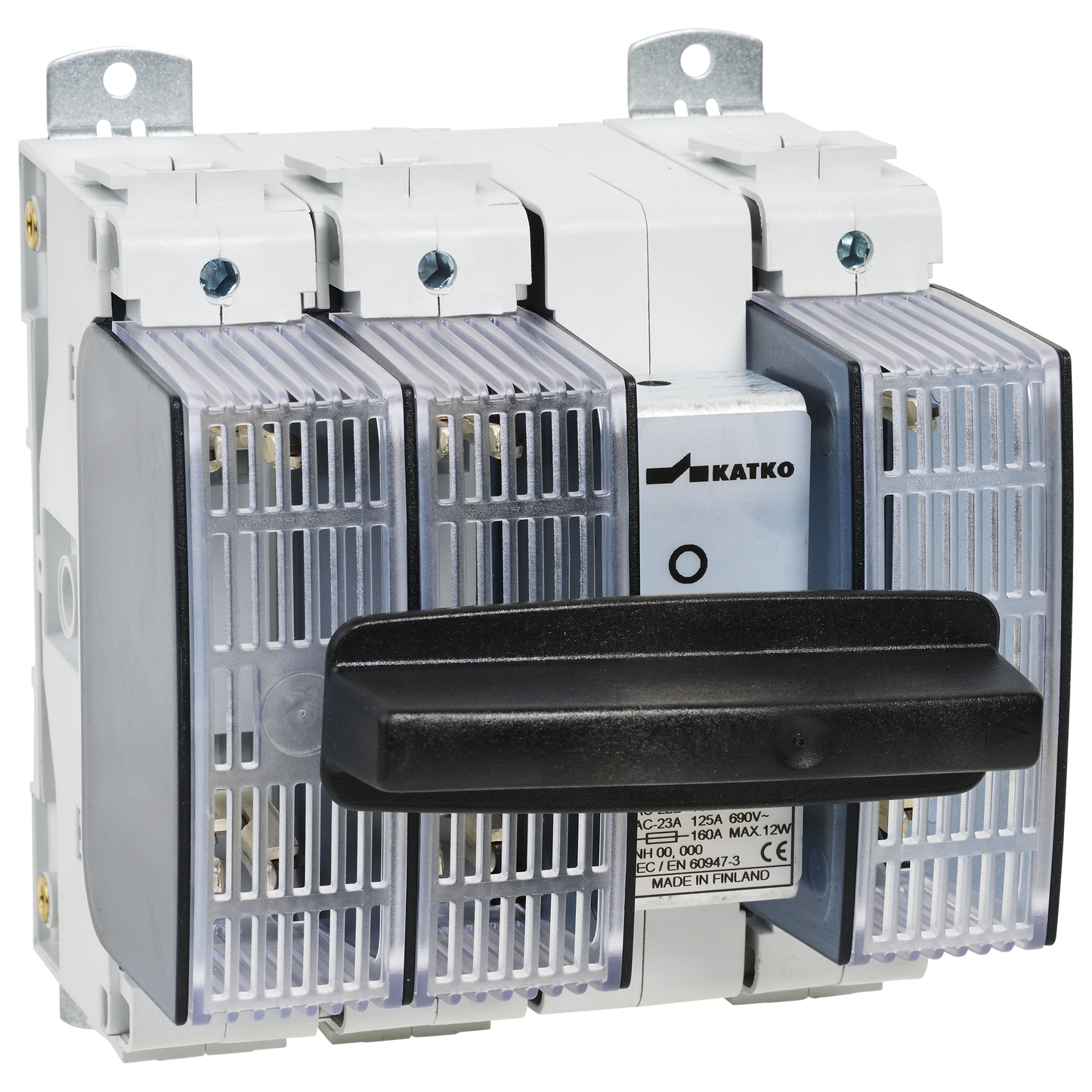

Switch fuse 3x125A DIN 000/00 with direct handle

KVKE 3125 SV11

Switch fuse 3x125A DIN 000/00 with direct handle

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

E-number FI
3662210
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 690V (A)
125
Pokaż kompletne dane

Product details and documents

Technical data

Depth
94 mm
ETIM Class
EC001040
E-number FI
3662210
Fuse type BS88
A2-A3
Fuse type DIN
000/00
Fuse type fixing centres (mm)
73
Fuse type screw size
M5
Fuse type torque (Nm)
3
GTIN
6419410287217
Height
134 mm
Long product name
3-pole, Includes direct handle mechanism
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
0.7141 kg
Nom. values w/cable size (mm²)
50
Number of poles
3
Product type
KVKE 3125 SV11
Rated breaking cap. ICN AC-23A 415V (A)
1000
Rated breaking cap. ICN AC-23A 500V (A)
1000
Rated breaking cap. ICN AC-23A 690V (A)
1000
Rated fused short-ckt current back-up fuse opt 1 (A)
125
Rated fused short-ckt current peak value (kA)
12
Rated fused short-ckt current RMS Ik opt 1 (kA)
80
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 500V (A)
125
Rated operational current AC-22A 690V (A)
125
Rated operational current AC-23A 415V (A)
125
Rated operational current AC-23A 500V (A)
125
Rated operational current AC-23A 690V (A)
125
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
75
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
110
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ith (A)
125
Short product description
Switch fuse 3x125A DIN 000/00 with direct handle
Switch type
Fuse Switch
Technical name
3x125 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
1.6627 l
Width
132 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
94 mm
Package size 1 GTIN code
6419410287217
Package size 1 height
134 mm
Package size 1 volume
1.6627 l
Package size 1 weight
0.7141 kg
Package size 1 width
132 mm
Sales unit
1
