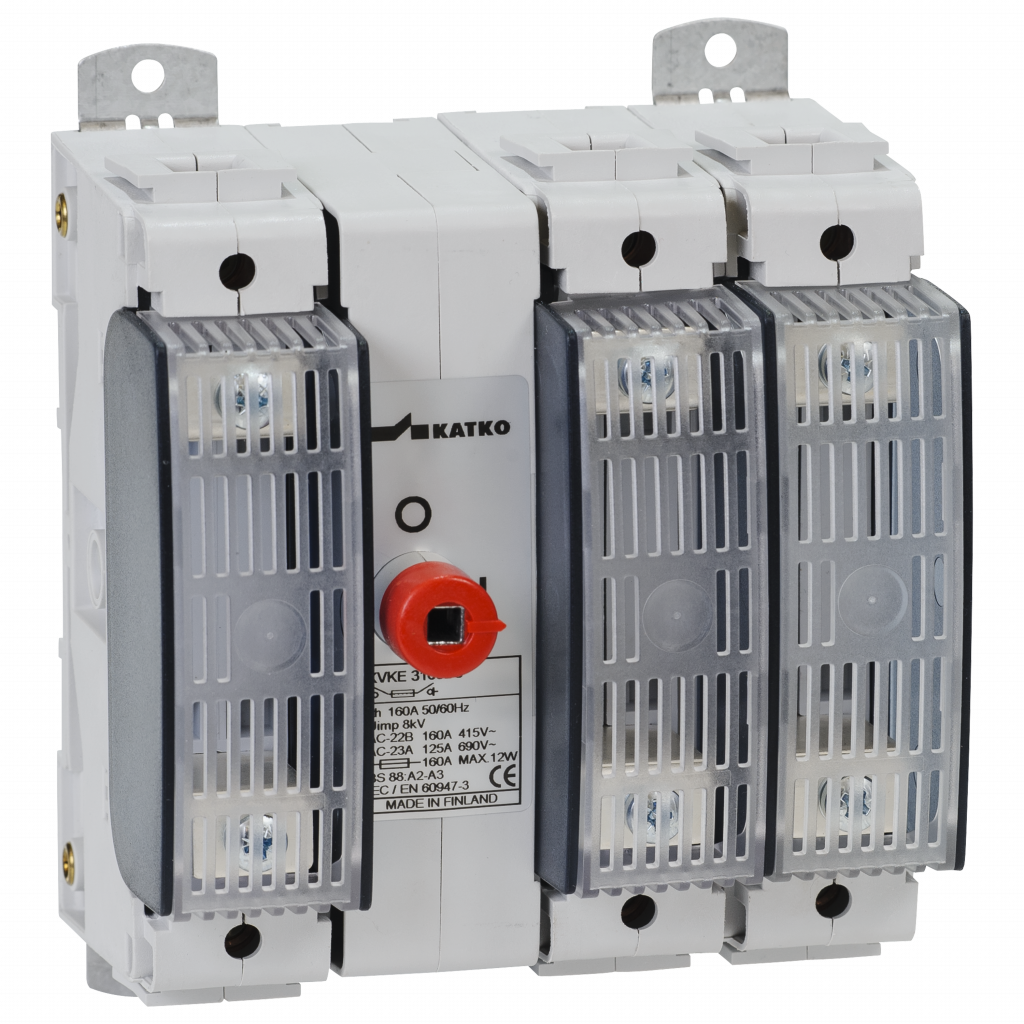

KVKE 320BS L180AD11TLK10 SS

KVKE 320BS L180AD11TLK10 SS

KVKE 320BS L180AD11TLK10 SS

Rated operational current AC-22A 415V (A)
20
Pokaż kompletne dane

Product details and documents

Technical data

Depth
91.5 mm
ETIM Class
EC001040
Fuse type BS88
A1
Fuse type DIN
10x38
Fuse type fixing centres (mm)
44.5
Fuse type screw size
M4
Fuse type torque (Nm)
1.8
GTIN
6419410285220
Height
102 mm
Long product name
3-pole, Includes shaft 180 mm, Handle, Fuse covers
Max. term. torque (Nm)
2.2
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
KVKE 320BS L180AD11TLK10 SS
Rated breaking cap. ICN AC-23A 415V (A)
160
Rated fused short-ckt current back-up fuse opt 1 (A)
32
Rated fused short-ckt current peak value (kA)
2.9
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
20
Rated operational current AC-22A 415V (A)
20
Rated operational current AC-23A 415V (A)
20
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
10
Rated therm. current Ith (A)
20
Switch type
Fuse Switch
Technical name
3x20 400V 10kW
Terminals bolt size (Cu mm²)
2,5..35
Volume
1.008 l
Width
108 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
91.5 mm
Package size 1 GTIN code
6.41941e+12
Package size 1 height
102 mm
Package size 1 volume
1.008 l
Package size 1 width
108 mm
Sales unit
1
