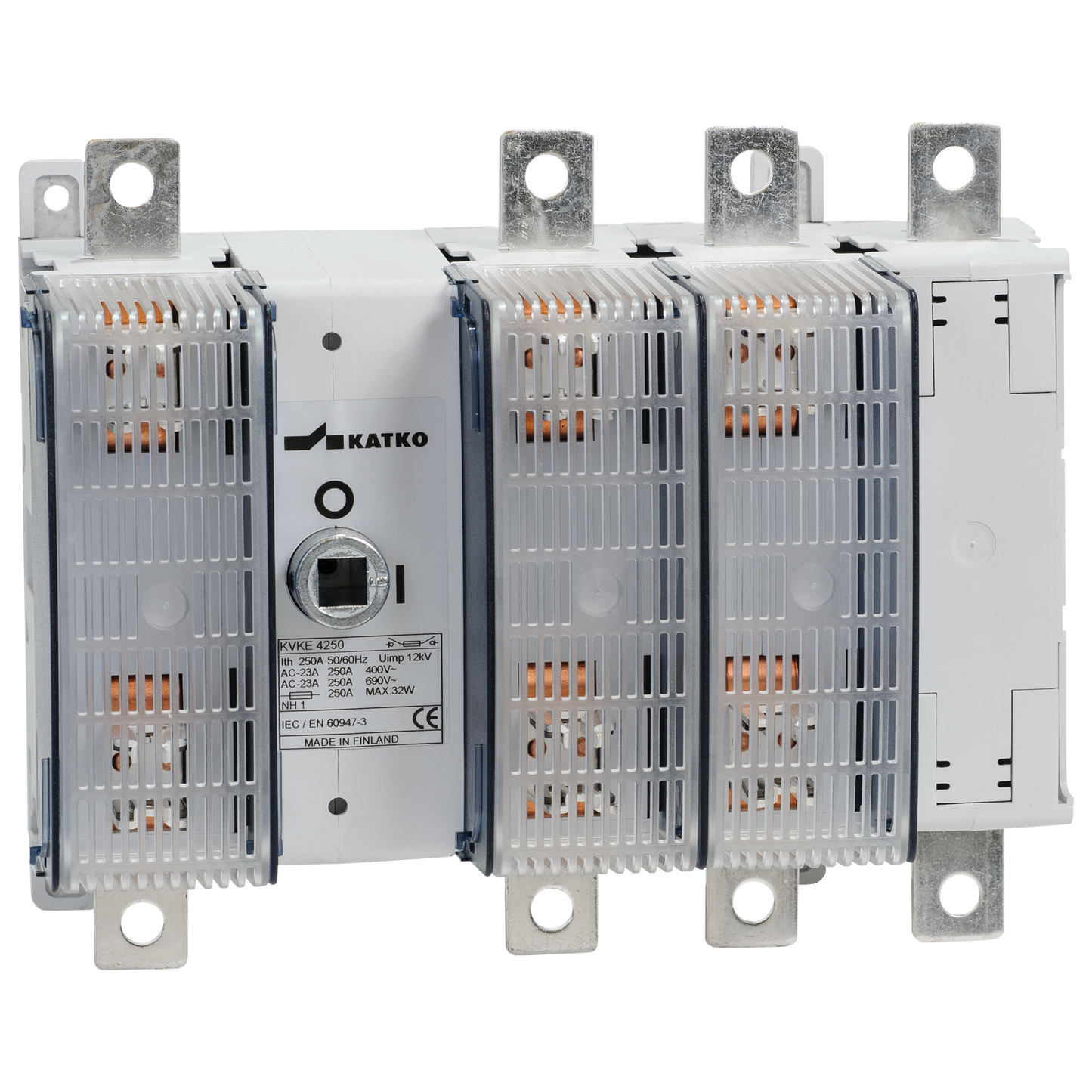

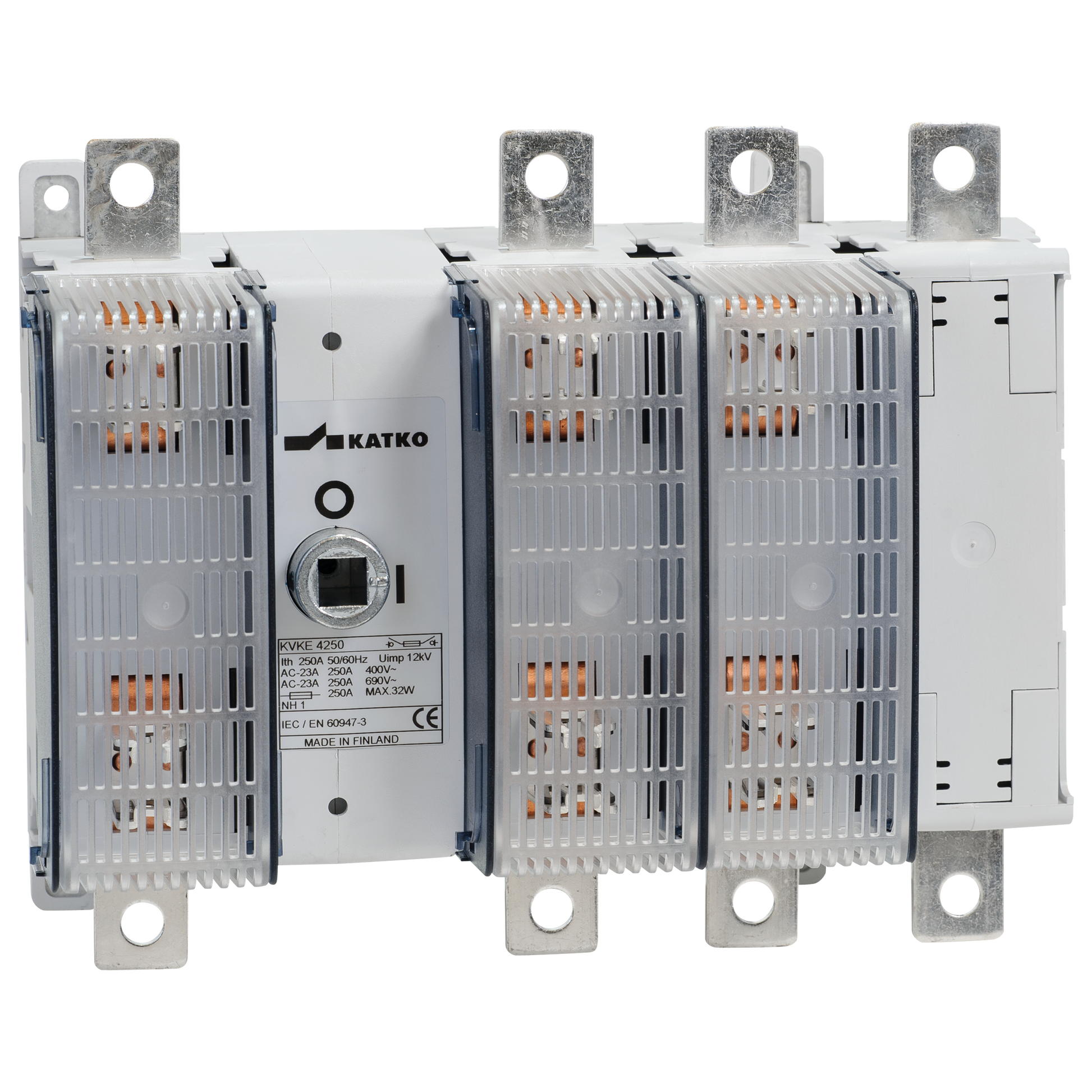

KVKE 4200 LVK228LK14 SS

Switch fuse 4x200A DIN 1

KVKE 4200 LVK228LK14 SS

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

Numer produktu
28769
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 690V (A)
200
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
94 mm
ETIM Class
EC001040
Fuse type DIN
1
GTIN
6419410287699
Height
155 mm
Max. term. torque (Nm)
30..40
Mech. endurance (no. of oper.)
16000
Net weight
4.3726 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KVKE 4200 LVK228LK14 SS
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
200
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
7
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ith (A)
200
Short product description
Switch fuse 4x200A DIN 1
Switch type
Switch Fuse
Terminals bolt size (Cu mm²)
M10
Volume
3.9485 l
Width
271 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
94 mm
Package size 1 GTIN code
6419410287699
Package size 1 height
155 mm
Package size 1 volume
3.9485 l
Package size 1 weight
4.3726 kg
Package size 1 width
271 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
