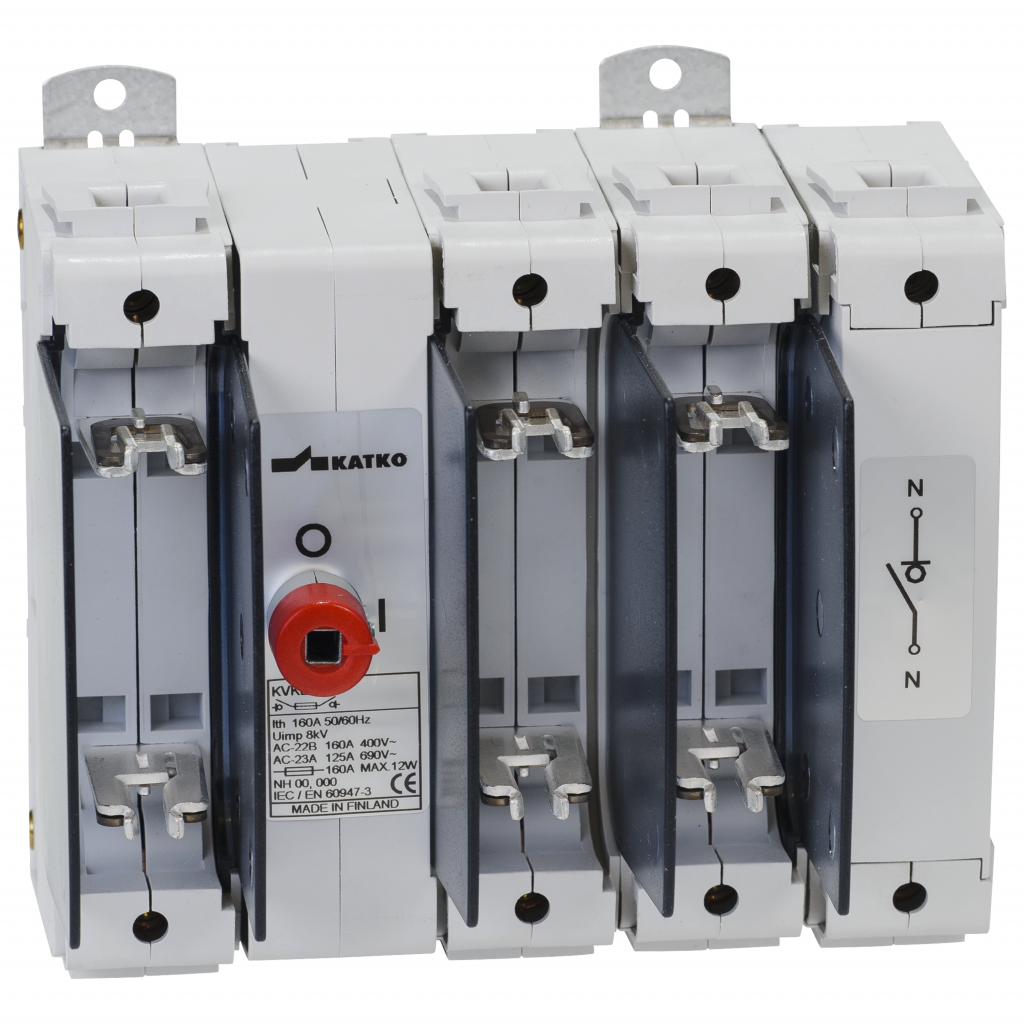

Switch fuse 4x80A DIN 000/00

KVKE 480 L220AD12TLK12 SS

Switch fuse 4x80A DIN 000/00

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 690V (A)
80
Pokaż kompletne dane

Product details and documents

Technical data

Depth
94 mm
ETIM Class
EC001040
Fuse type BS88
A2-A3
Fuse type DIN
000/00
Fuse type fixing centres (mm)
73
Fuse type screw size
M5
Fuse type torque (Nm)
3
GTIN
6419410286142
Height
134 mm
Long product name
4-pole, Includes shaft 220 mm, Handle, Fuse covers
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
1.1285 kg
Nom. values w/cable size (mm²)
25
Number of poles
4
Product type
KVKE 480 L220AD12TLK12 SS
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
12
Rated fused short-ckt current RMS Ik opt 1 (kA)
80
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
80
Rated operational current AC-21A 500V (A)
80
Rated operational current AC-21A 690V (A)
80
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
80
Rated operational current AC-23A 500V (A)
80
Rated operational current AC-23A 690V (A)
80
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
75
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ith (A)
80
Short product description
Switch fuse 4x80A DIN 000/00
Switch type
Fuse Switch
Technical name
4x125 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
2.0783 l
Width
165 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
94 mm
Package size 1 GTIN code
6419410286142
Package size 1 height
134 mm
Package size 1 volume
2.0783 l
Package size 1 weight
1.1285 kg
Package size 1 width
165 mm
Sales unit
1
