Enclosed switch fuse 3x80A DIN 000/00

KVKEM 380 MF11

Enclosed switch fuse 3x80A DIN 000/00

Katko FuseSafe enclosed fuse switches combine reliable switching and fuse protection in a compact, enclosed solution for professional electrical installations. Available with polycarbonate, sheet steel and stainless steel enclosures, the range offers suitable options for a wide variety of industrial, commercial and infrastructure applications.

The enclosed design provides added protection for fuse circuits and electrical connections, supporting safe operation and clear isolation. With durable construction and multiple enclosure material options, Katko enclosed fuse switches deliver dependable performance in environments ranging from standard indoor installations to demanding industrial conditions.

Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 690V (A)
80
Enclosure
MF11 (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
Pokaż kompletne dane

Product details and documents

Technical data

Depth
130 mm
Enclosure
MF11 (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC001040
Fuse type BS88
A2-A3
Fuse type DIN
000/00
Fuse type fixing centres (mm)
73
Fuse type screw size
M5
Fuse type torque (Nm)
3
GTIN
6419410394151
Height
380 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
3.9908 kg
Nom. values w/cable size (mm²)
25
Number of poles
3
Product type
KVKEM 380 MF11
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
12
Rated fused short-ckt current RMS Ik opt 1 (kA)
80
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
80
Rated operational current AC-21A 500V (A)
80
Rated operational current AC-21A 690V (A)
80
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
80
Rated operational current AC-23A 500V (A)
80
Rated operational current AC-23A 690V (A)
80
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
75
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ithe (A)
80
Rated therm. current Ith (A)
80
Short product description
Enclosed switch fuse 3x80A DIN 000/00
Switch type
Switch Fuse
Technical name
3x125 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
13.832 l
Width
280 mm

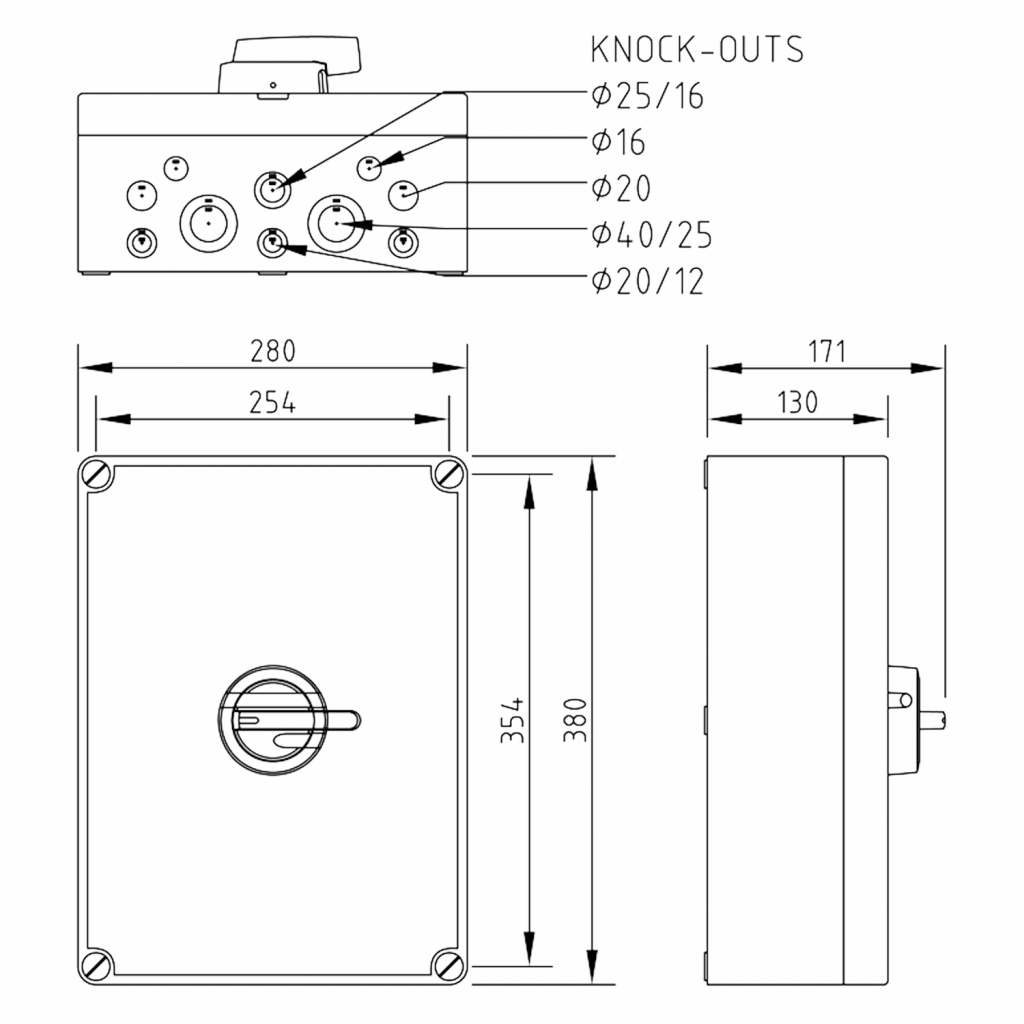

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
130 mm
Package size 1 GTIN code
6419410394151
Package size 1 height
380 mm
Package size 1 volume
13.832 l
Package size 1 weight
3.9908 kg
Package size 1 width
280 mm
Sales unit
1
