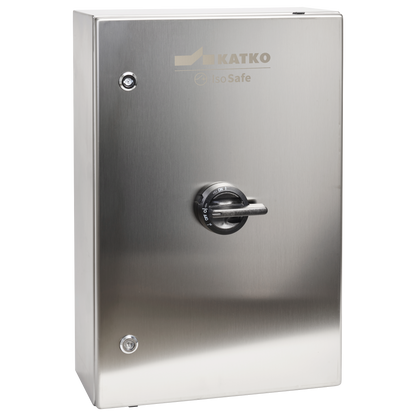

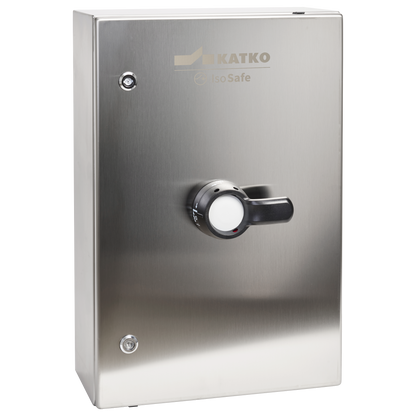

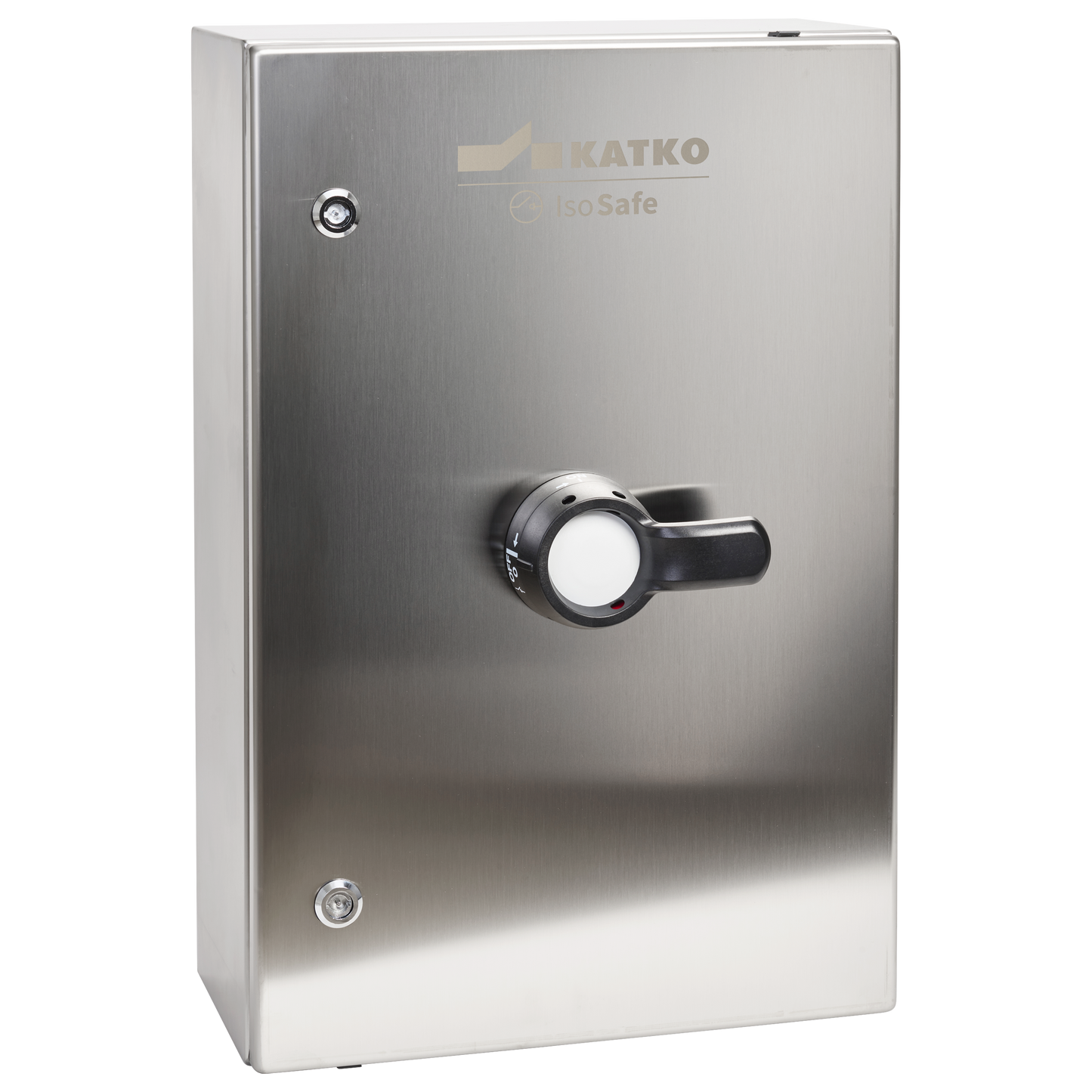

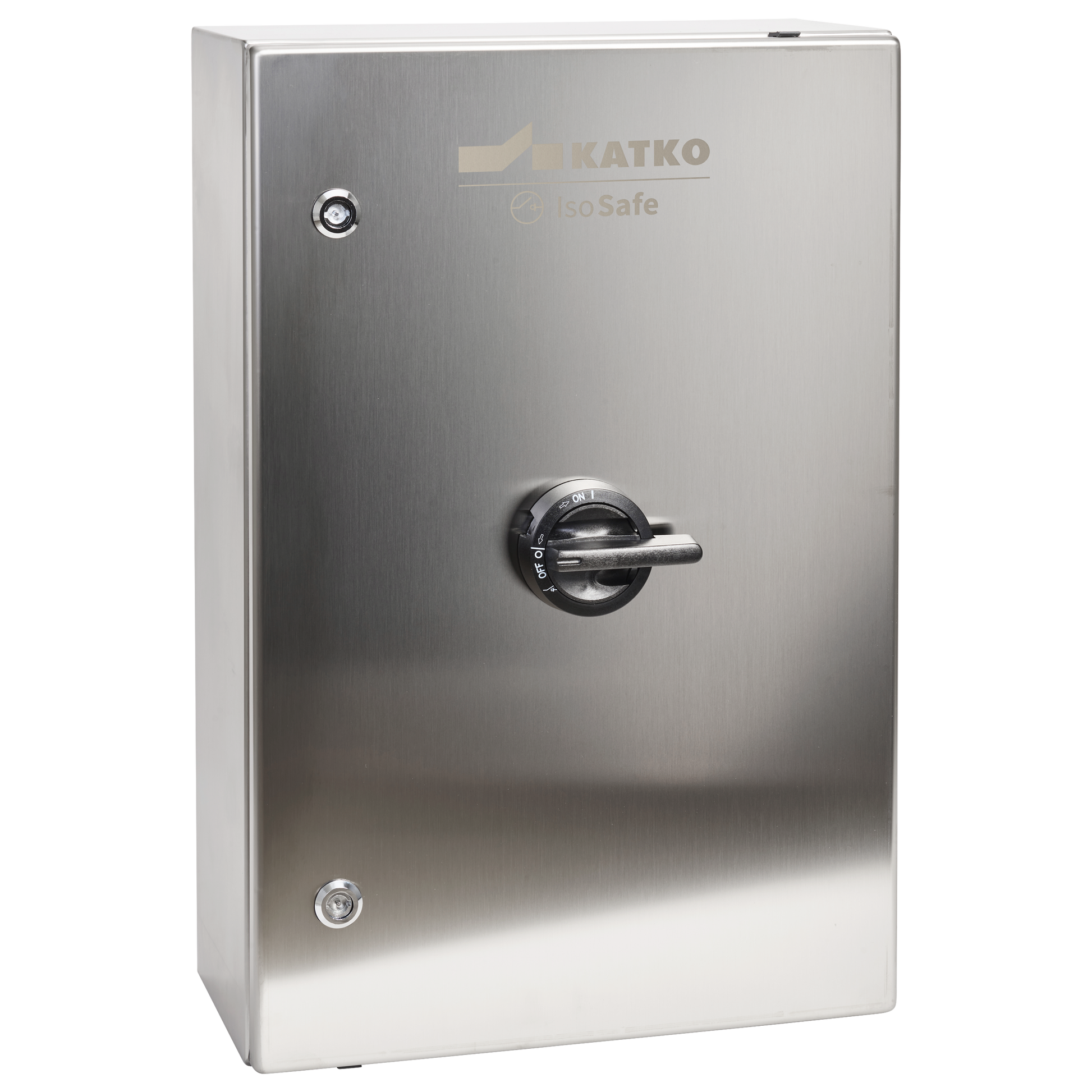

Enclosed Switch fuse 3x200A DIN 1

KVKER 3200 R6

Enclosed Switch fuse 3x200A DIN 1

Katko FuseSafe enclosed fuse switches combine reliable switching and fuse protection in a compact, enclosed solution for professional electrical installations. Available with polycarbonate, sheet steel and stainless steel enclosures, the range offers suitable options for a wide variety of industrial, commercial and infrastructure applications.

The enclosed design provides added protection for fuse circuits and electrical connections, supporting safe operation and clear isolation. With durable construction and multiple enclosure material options, Katko enclosed fuse switches deliver dependable performance in environments ranging from standard indoor installations to demanding industrial conditions.

Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 690V (A)
200
Enclosure
R6 (400 x 600 x 200 mm)
Enclosure type
Stainless steel (AISI 304)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
200 mm
Enclosure
R6 (400 x 600 x 200 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC001040
Fuse type BS88
B1-B2
Fuse type DIN
1
Fuse type fixing centres (mm)
111
Fuse type screw size
M10
Fuse type torque (Nm)
15
GTIN
6419410378106
Height
600 mm
Max. term. torque (Nm)
30..40
Mech. endurance (no. of oper.)
16000
Net weight
17.2487 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KVKER 3200 R6
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
200
Rated fused short-ckt current peak value (kA)
18
Rated fused short-ckt current RMS Ik opt 1 (kA)
80
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 240V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
7
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Enclosed Switch fuse 3x200A DIN 1
Switch type
Switch Fuse
Technical name
3x250 400V 132kW
Terminals bolt size (Cu mm²)
M10
Volume
48 l
Width
400 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
200 mm
Package size 1 GTIN code
6419410378106
Package size 1 height
600 mm
Package size 1 volume
48 l
Package size 1 weight
17.2487 kg
Package size 1 width
400 mm
Sales unit
1
