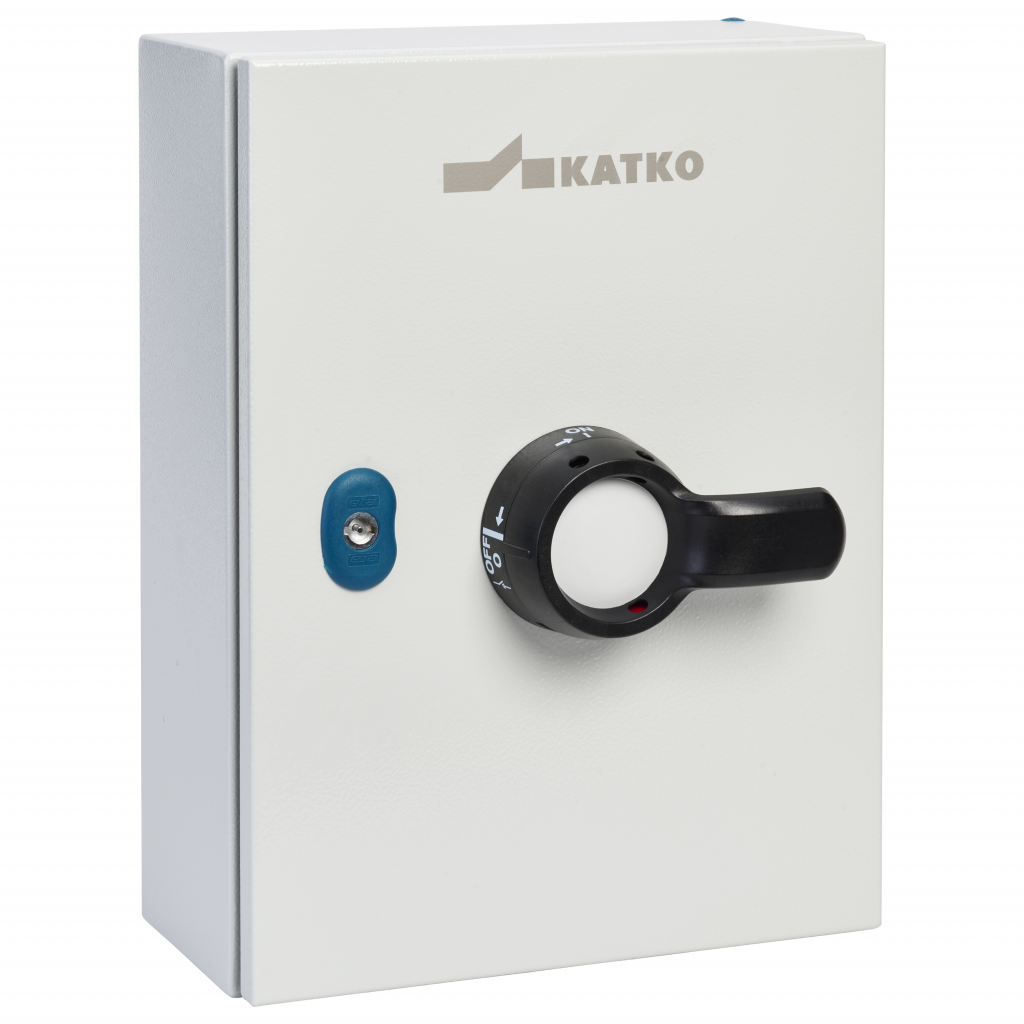

KVKET 3100 T5

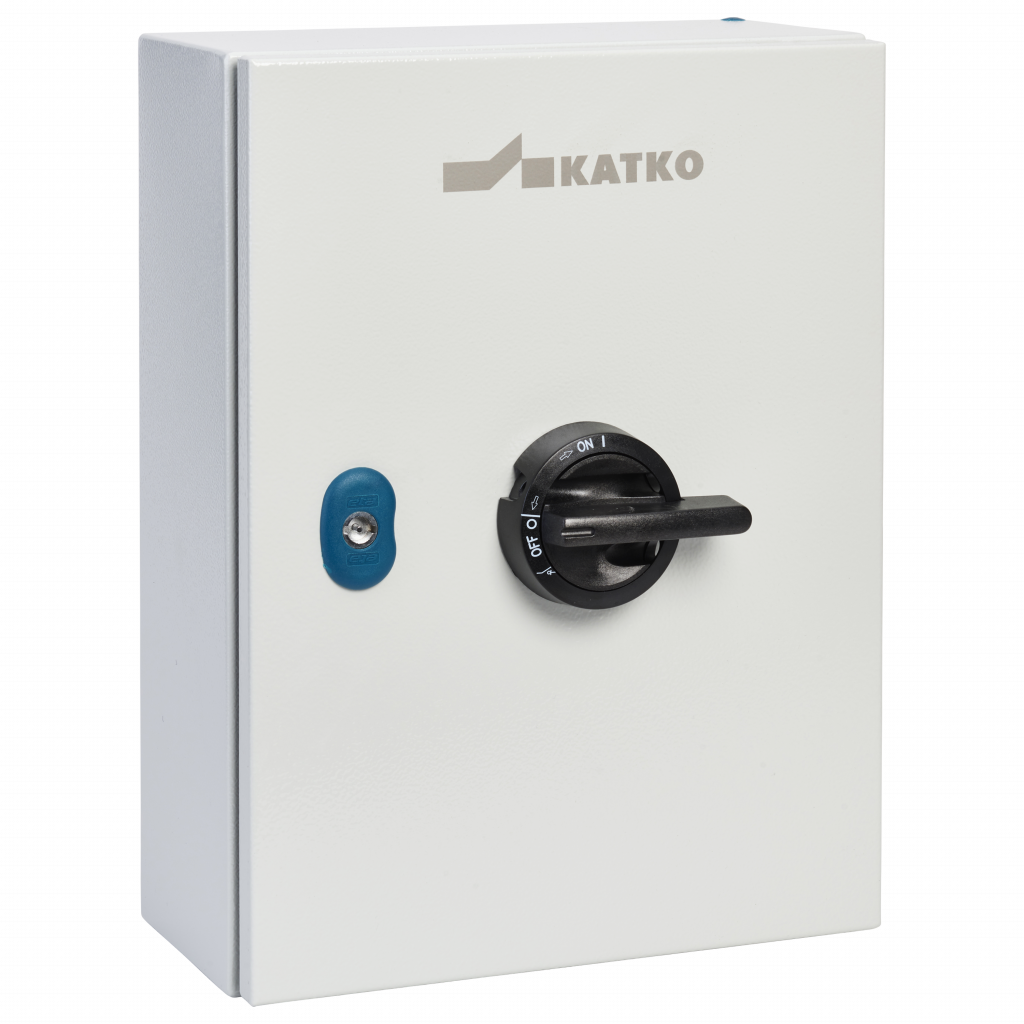

Enclosed switch fuse 3x100A DIN 000/00

KVKET 3100 T5

Katko FuseSafe enclosed switch fuses combine reliable switching and fuse protection in a safe and space-saving solution for professional electrical installations. Available in polycarbonate, steel, and stainless steel enclosures, FuseSafe is suitable for a wide range of industrial, building, and infrastructure applications. Durable enclosure materials ensure reliable performance in both standard indoor installations and demanding industrial environments.

Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 690V (A)
100
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
150 mm
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC001040
Fuse type DIN
000/00
GTIN
6419410223307
Height
400 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
8.887 kg
Nom. values w/cable size (mm²)
35
Number of poles
3
Product type
KVKET 3100 T5
Rated breaking cap. ICN AC-23A 415V (A)
800
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
100
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ithe (A)
100
Rated therm. current Ith (A)
100
Short product description
Enclosed switch fuse 3x100A DIN 000/00
Switch type
Switch Fuse
Terminals bolt size (Cu mm²)
6..70
Volume
18 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410223307
Package size 1 height
400 mm
Package size 1 volume
18 l
Package size 1 weight
8.887 kg
Package size 1 width
300 mm
Sales unit
1
