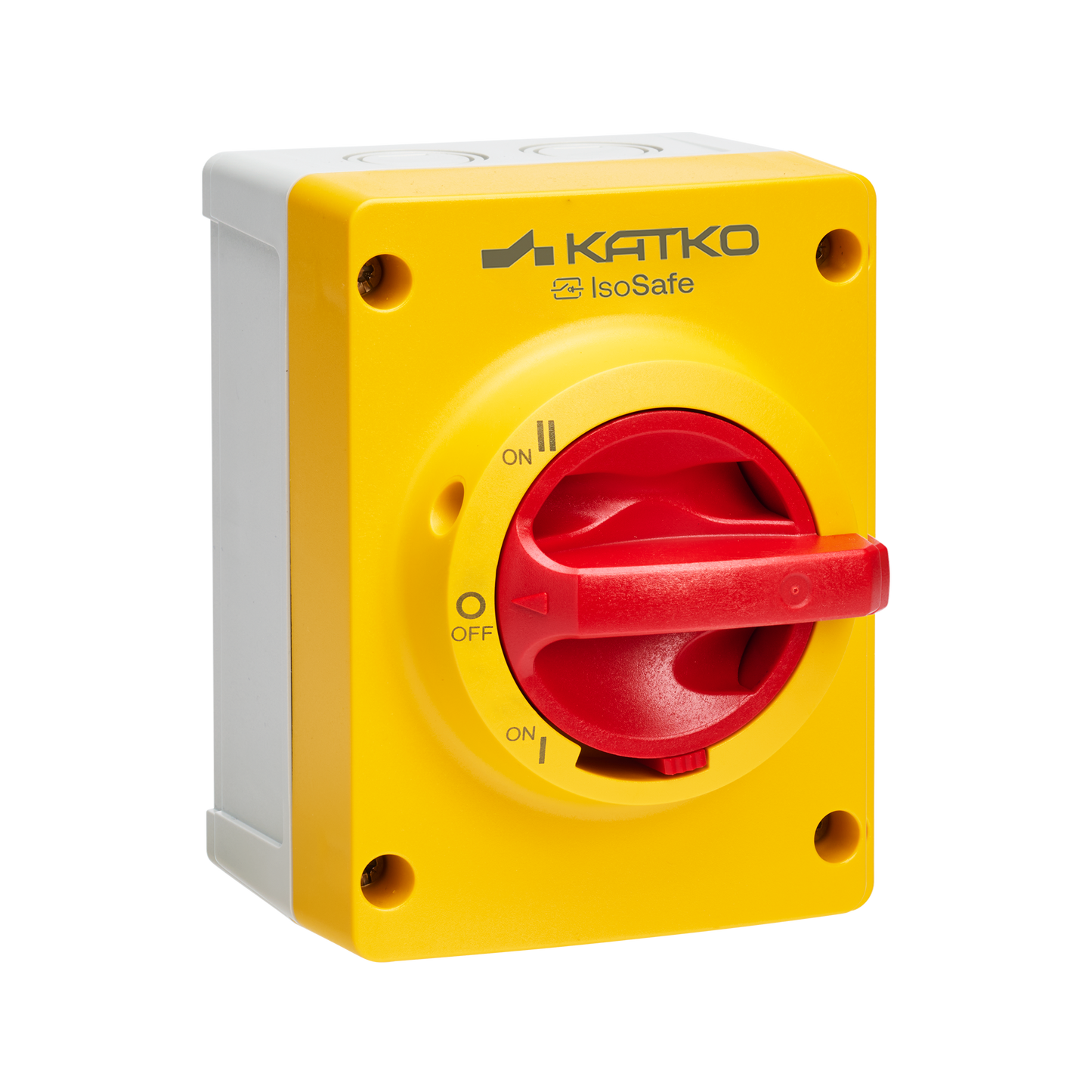

TKM 225VV YR M2 3XM25P

Change-over switch 2x25A IP66

TKM 225VV YR M2 3XM25P

Designed for safe and reliable power source switching, Katko enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.

Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.

Numer produktu
34696
Rated operational current AC-23A 415V (A)
25
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
3 x M25 (11,0-17,0 mm), plastic
delivery_time
15
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410346969
Height
130 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
10
Number of poles
2
Product type
TKM 225VV YR M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Change-over switch 2x25A IP66
Switch type
Cam Switch
Technical name
2x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
79.5 mm
Package size 1 GTIN code
6419410346969
Package size 1 height
158.5 mm
Package size 1 volume
1.3105 l
Package size 1 width
104 mm
Sales unit
1
