Designed for safe and reliable direction control, Katko reverse motor control switches enable controlled forward and reverse operation in motor-driven applications. They ensure clear and secure switching where precise motor direction control is required.
Used in industrial machinery and building systems, these switches are built for frequent switching and demanding operating conditions, delivering dependable performance, clarity of operation, and long-term durability.
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
3 x M25 (11,0-17,0 mm), plastic
Depth
106 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410345238
Height
130.4 mm
IP rating
IP66
Long product name

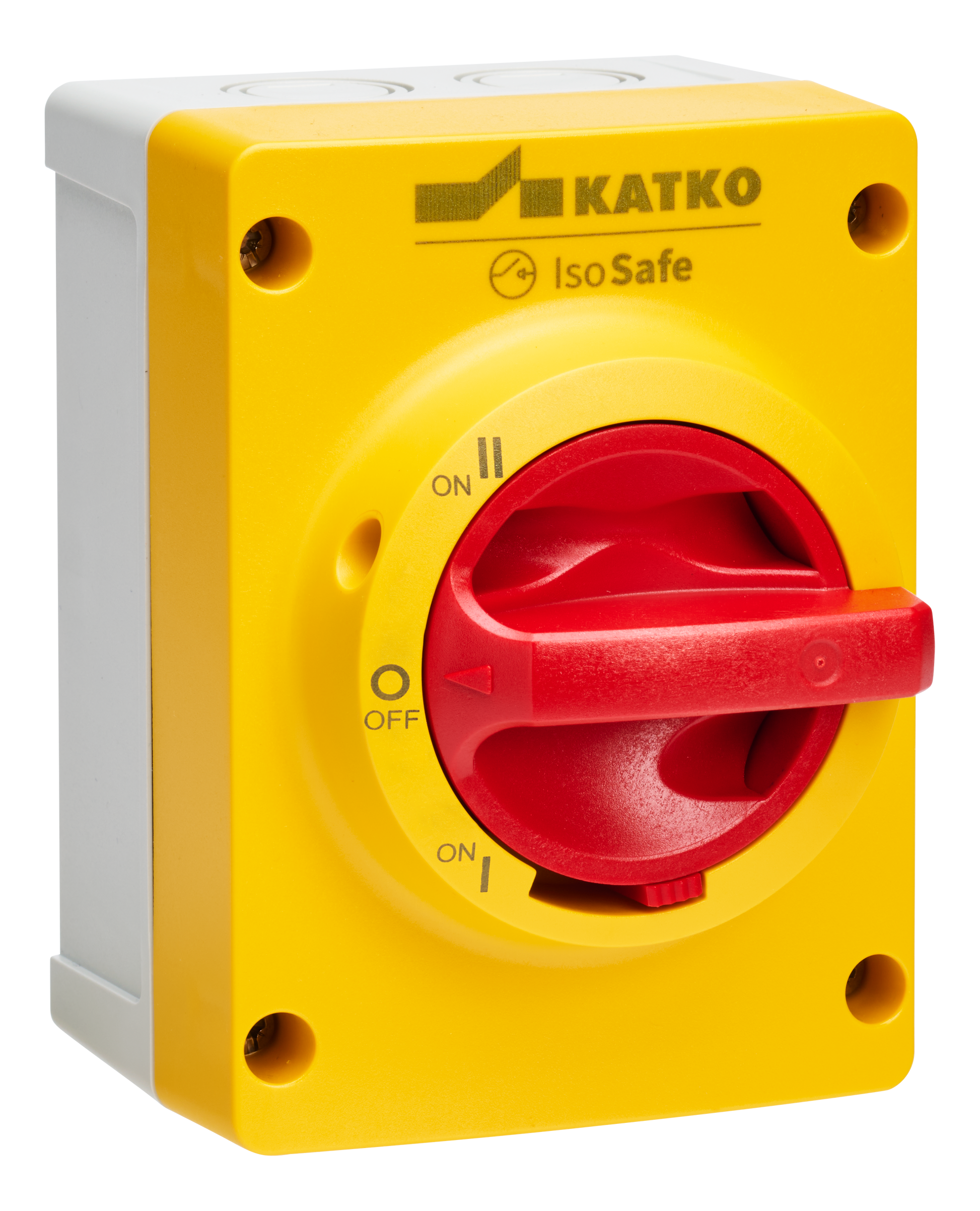

Reversing switch, 3-pole, Yellow-red handle, Polycarbonate enclosure; W96.4 x H130.4 x D106, Cable entries: 3 x M25 (11,0-17,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
TKM 325SK YR M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Reverse switch 3x25A IP66
Switch type
Cam Switch
Technical name
3x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
180 mm
Package size 1 GTIN code
6419410264317
Package size 1 height
560 mm
Package size 1 volume
38.304 l
Package size 1 weight
8.2972 kg
Package size 1 width
380 mm
Sales unit
1
Downloadables
- Dimensional drawings media (8f08801aed79a1e088e56aa7b70ef3f5a1778766_IsoSafe_M2_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Installation manuals (8fbb7a807c2367667dbb5971de2947b07f70822c_KATKO_IsoSafe_TKM_installation_manual_39.pdf)
