Engineered for controlled motor starting, Katko star-delta motor control switches enable reduced inrush current and smooth startup in motor-driven applications. They support safe and reliable operation where controlled acceleration and mechanical stress reduction are essential.
Used in industrial machinery and building systems, these switches are designed to withstand frequent operation and demanding conditions, combining durability, clear switching positions, and long service life.
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
3 x M25 (11,0-17,0 mm), plastic
Depth
106 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410345641
Height
130.4 mm
IP rating
IP66
Long product name

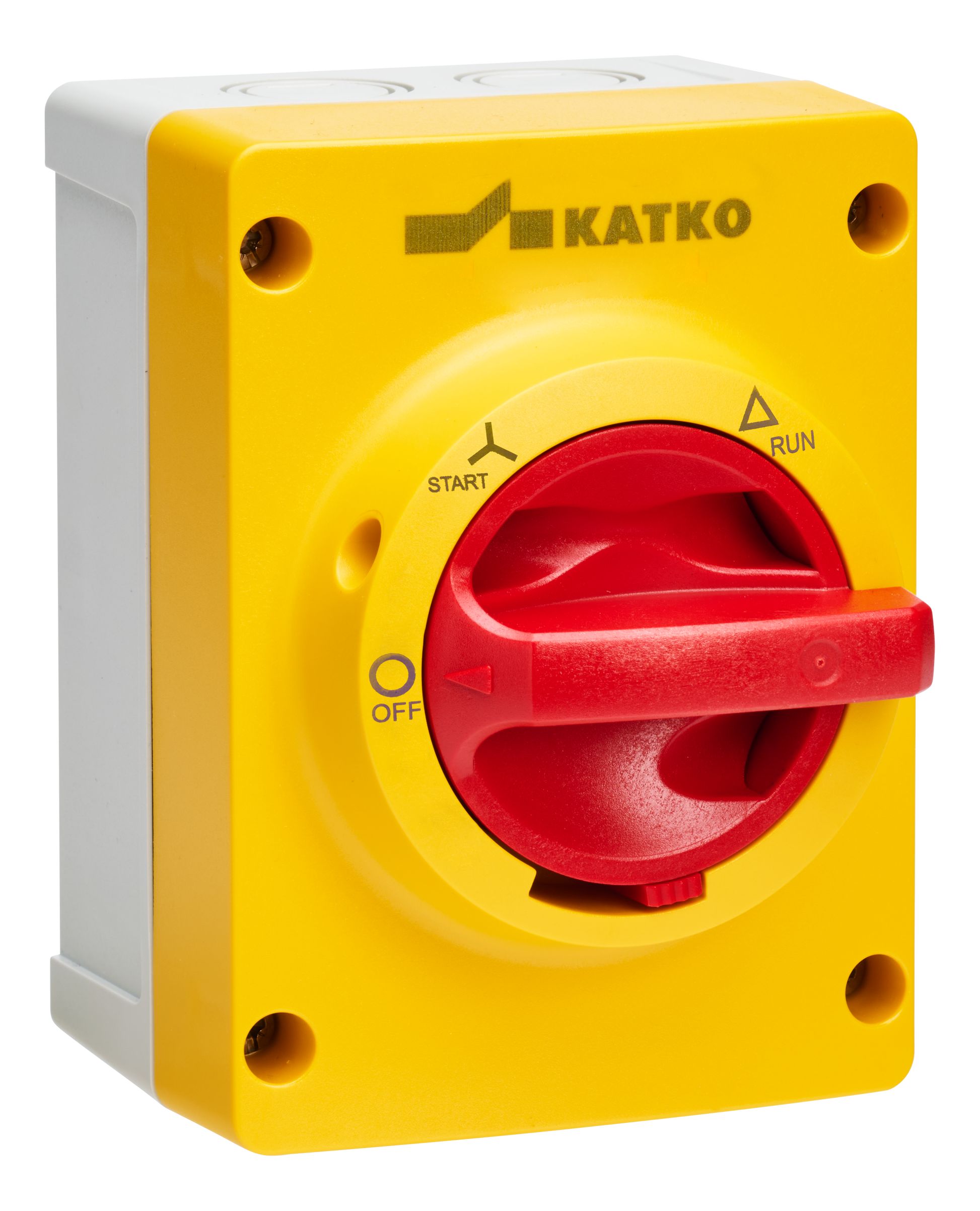

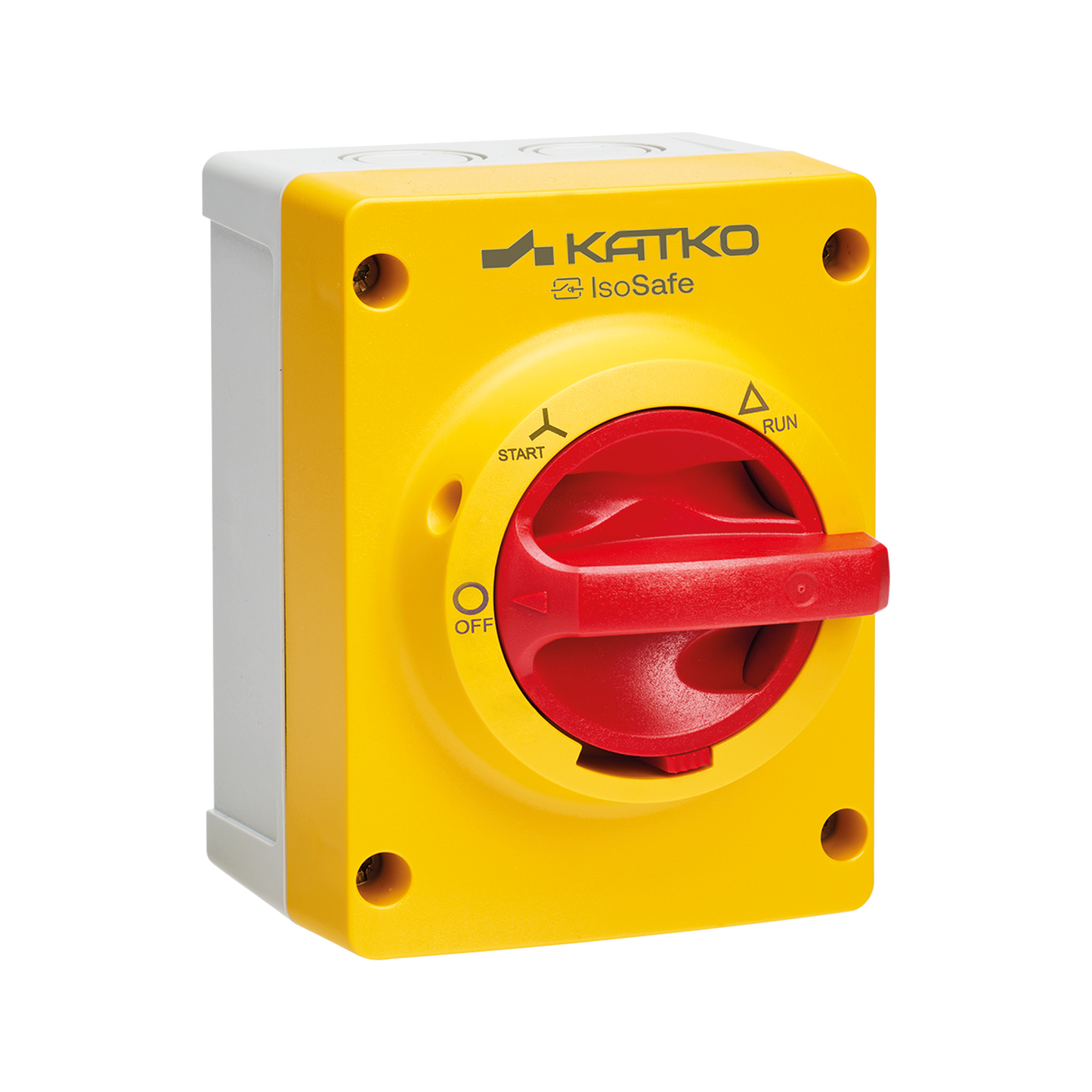

Star-delta switch, 3-pole, Yellow-red handle, Polycarbonate enclosure; W96.4 x H130.4 x D106, Cable entries: 3 x M25 (11,0-17,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
TKM 340TK YR M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
18.5
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Star delta switch 3x40A IP66
Switch type
Cam Switch
Technical name
3x40A 400V 18.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
120 mm
Package size 1 GTIN code
6419410295793
Package size 1 height
200 mm
Package size 1 volume
3.6 l
Package size 1 width
150 mm
Sales unit
1
Downloadables
- Dimensional drawings media (8f08801aed79a1e088e56aa7b70ef3f5a1778766_IsoSafe_M2_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
Related accessories
-
Protective roof for M2 enclosures, AlZn
Product typeKSL10
