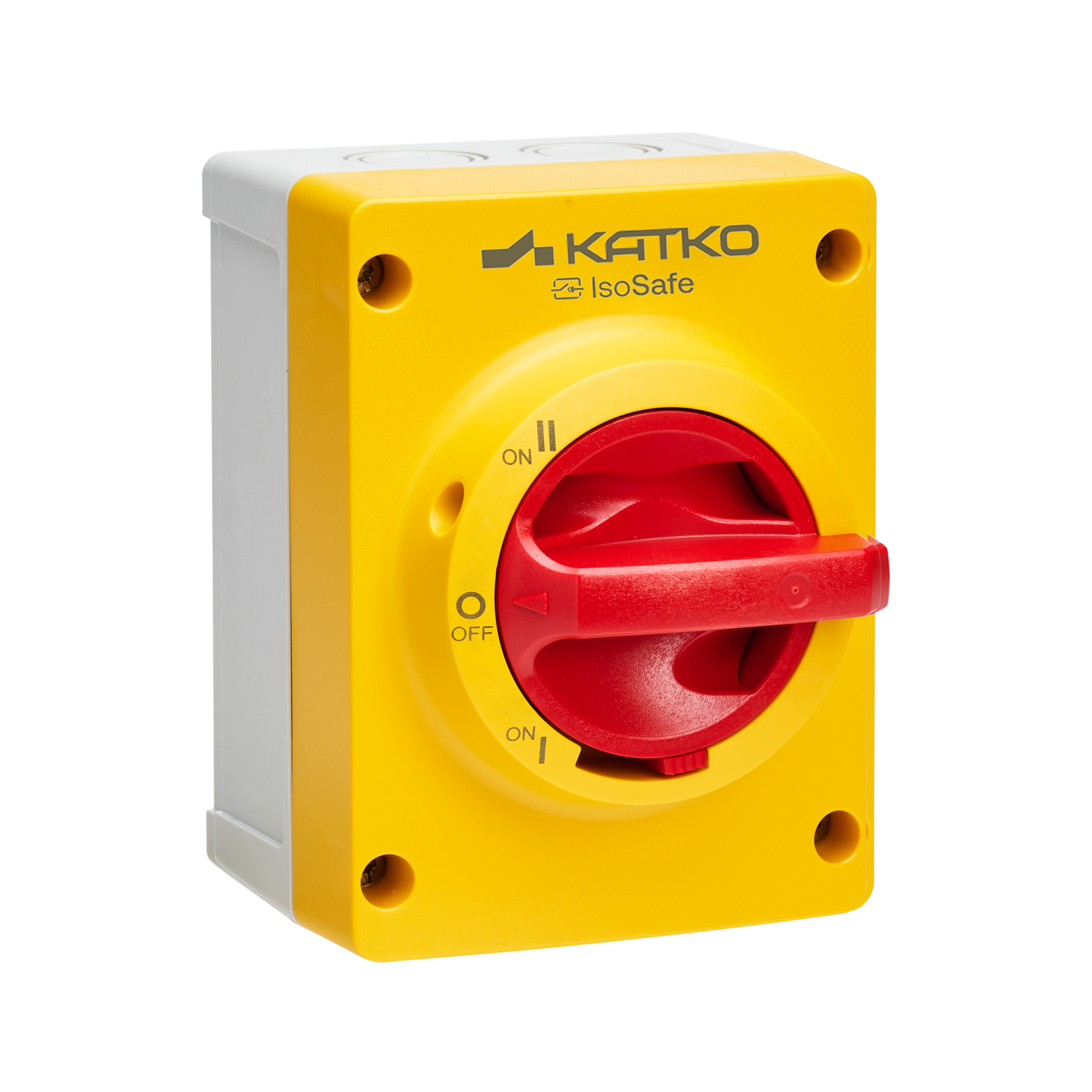

TKM 416VV YR M2 3XM25P

Change-over switch 4x16A IP66

TKM 416VV YR M2 3XM25P

Designed for safe and reliable power source switching, Katko enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.

Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.

Numer produktu
34706
Rated operational current AC-23A 415V (A)
16
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
3 x M25 (11,0-17,0 mm), plastic
delivery_time
15
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410347065
Height
130 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
4
Number of poles
4
Product type
TKM 416VV YR M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
16
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Change-over switch 4x16A IP66
Switch type
Cam Switch
Technical name
4x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 GTIN code
6419410347065
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
