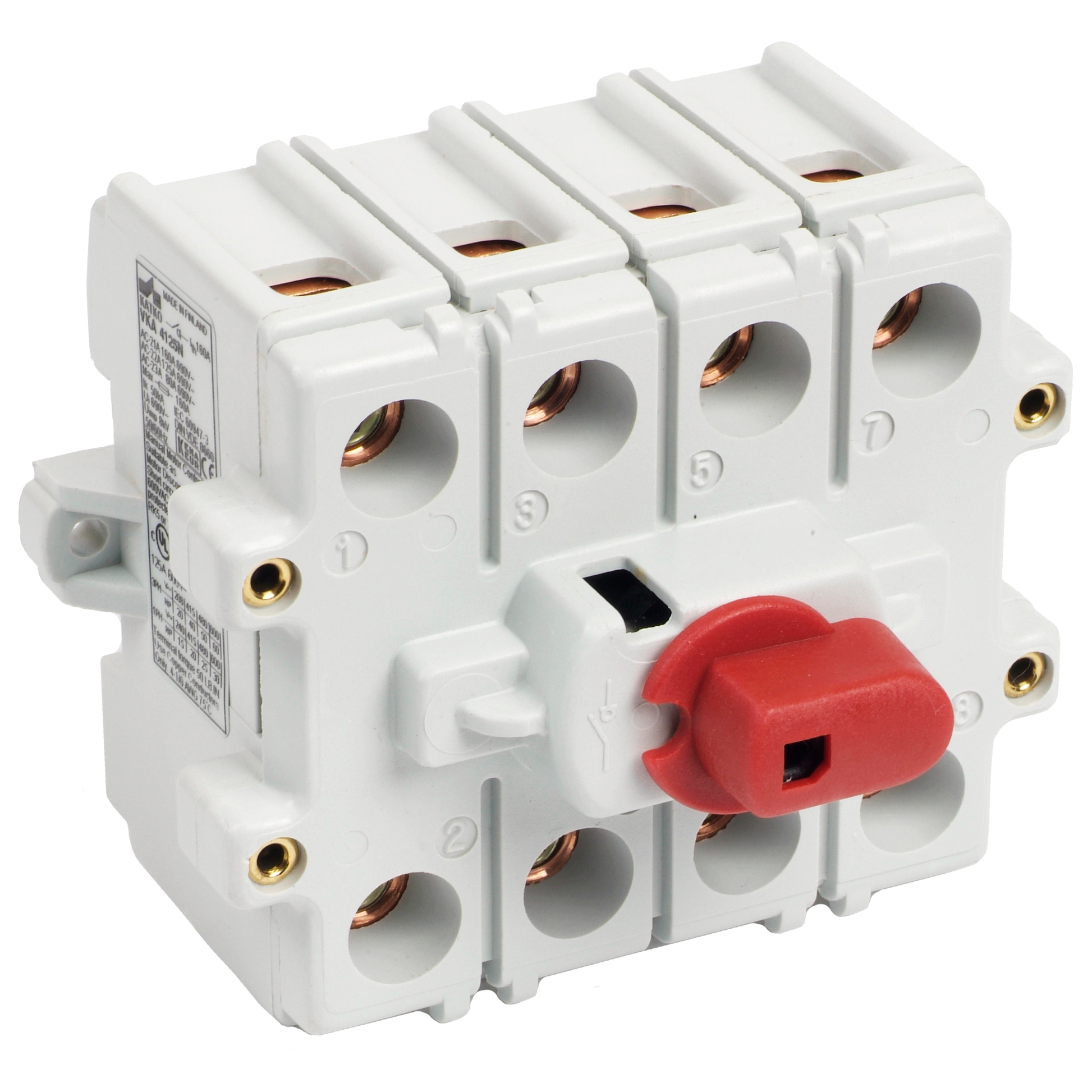

Load break switch 4x125A

VKA 4125N

Load break switch 4x125A

E-number FI
3635096
GTIN
6419410218600
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 690V (A)
125
Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
125.0
Depth
85 mm
ETIM Class
EC000216
E-number FI
3635096
GTIN
6419410218600
Height
85 mm
HP 208V
20.0
HP 415V
25.0
HP 480V
50.0
HP 600V
60.0
Long product name
Rotary switch, 4-pole
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
0 kg
Nom. values w/cable size (mm²)
70
Number of poles
4
Product type
VKA 4125N
Rated breaking cap. ICN AC-23A 415V (A)
800
Rated breaking cap. ICN AC-23A 500V (A)
640
Rated breaking cap. ICN AC-23A 690V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
13.7
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 500V (A)
125
Rated operational current AC-22A 690V (A)
125
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
80
Rated operational current AC-23A 690V (A)
80
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
5.1
Rated short-time withstand current 1s Icw 690V (kA)
3.5
Rated therm. current Ith (A)
160
Short product description
Load break switch 4x125A
Switch type
Load Break Switch
Technical name
4x125A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
UL
UL 60947-4-1A
Volume
0.7225 l
Width
100 mm
Wire size Cu
8-1/0 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
85 mm
Package size 1 GTIN code
6419410218600
Package size 1 height
85 mm
Package size 1 volume
0.6141 l
Package size 1 weight
0 kg
Package size 1 width
85 mm
Sales unit
1
