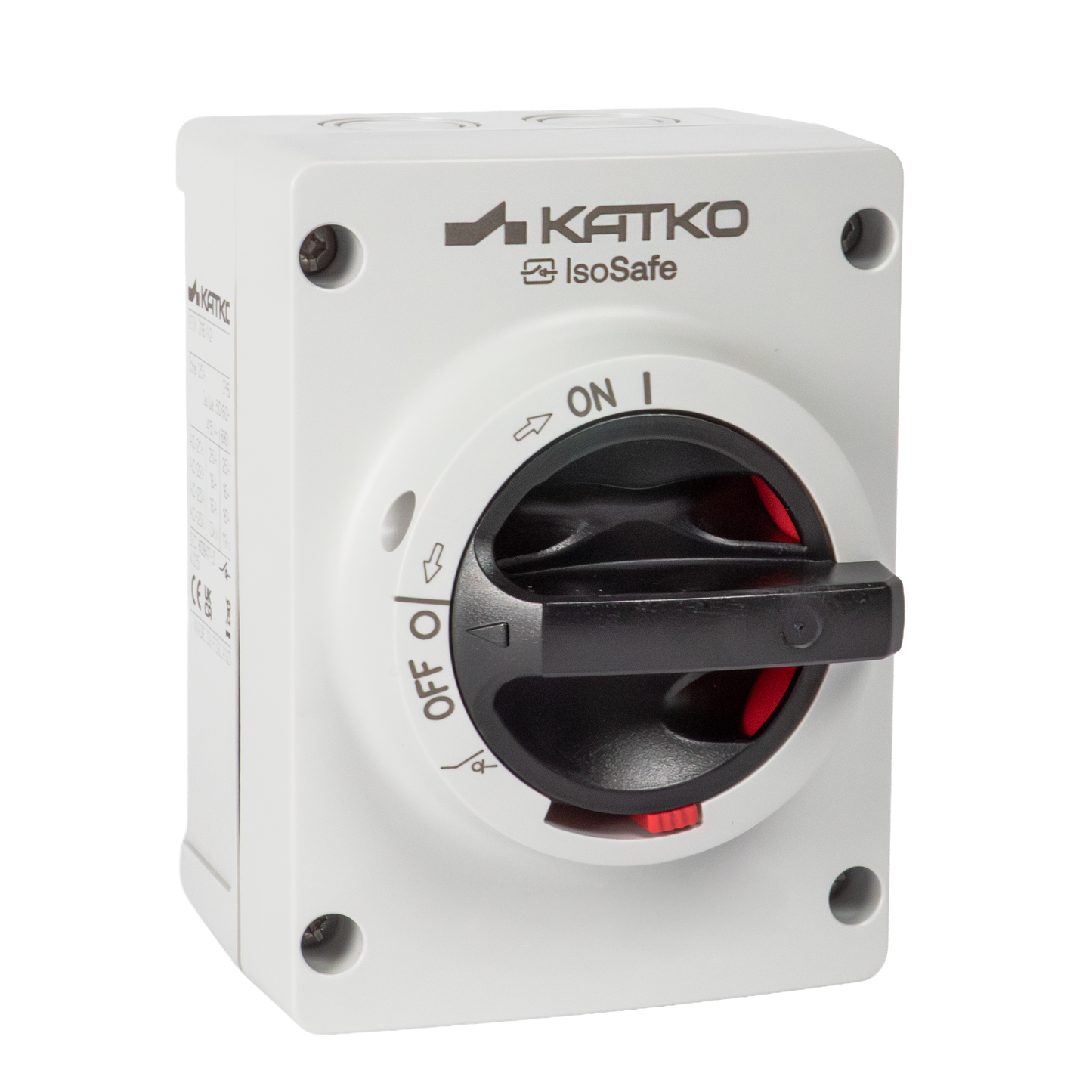

ISF 316NOUL M2

Manual motor controller 3x16A 1NO

ISF 316NOUL M2

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

E-number FI
GTIN
6419410344835
Ampere rating 600V
16
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
Mounted auxiliary contacts
1NO

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
16.0
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3662656
GTIN
6419410344835
Height
130 mm
HP 208V
3.0
HP 480V
7.5
HP 600V
10.0
IP rating
IP66
Long product name
UL-listed, 3-pole, Fixed 1NO auxiliary contact, Polycarbonate enclosure; W96.4 x H130.4 x D106
Mounted auxiliary contacts
1NO
Net weight
0.4693 kg
Number of poles
3
Product type
ISF 316NOUL M2
Short product description
Manual motor controller 3x16A 1NO
Technical name
3x16A 400V 7.5kW
UL
UL 60947-4-1A
Volume
1.2979 l
Width
96 mm
Wire size Cu
14-8 AWG

Dimensional drawing

Logistical data

Package size 1 depth
170 mm
Package size 1 GTIN code
6419410344835
Package size 1 height
400 mm
Package size 1 volume
20.4 l
Package size 1 weight
0.4693 kg
Package size 1 width
300 mm
