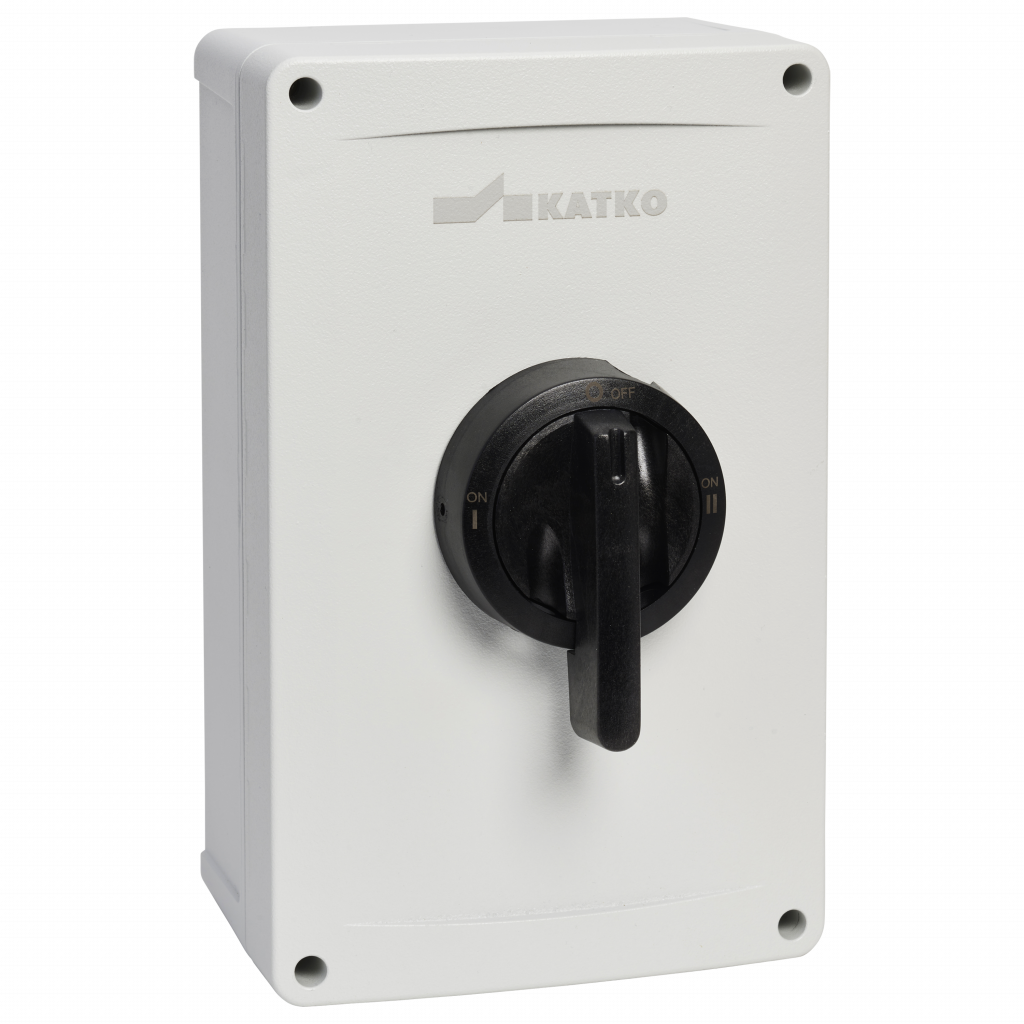

KEA 480VV A4

Change-over switch 4x63A IP66

KEA 480VV A4

Designed for safe and reliable power source switching, KATKO enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.

Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.

Product Number
33228
Rated operational current AC-23A 415V (A)
63
Enclosure type
Aluminium
Enclosure
A4 (162 x 262 x 108 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410332283
colour
Grey/Black
Depth
108 mm
EMC
false
Enclosure
A4 (162 x 262 x 108 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
Height
262 mm
IP rating
IP66
item_relevance
5000
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
3.0781 kg
Nom. values w/cable size (mm²)
35
Number of poles
4
Product type
KEA 480VV A4
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.2
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
3.1
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
100
Rated therm. current Ith (A)
100
Short product description
Change-over switch 4x63A IP66
Switch type
Load Break Switch
Terminals bolt size (Cu mm²)
2.5..35
Volume
4.584 l
Width
162 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410332283
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
3.0781 kg
Package size 1 width
162 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
