GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Depth
81 mm
EMC
false
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410304402
Height
130.4 mm
IP rating
IP66
Long product name
4-pole, Polycarbonate enclosure; W96.4 x H130.4 x D81
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.4664 kg
Nom. values w/cable size (mm²)
4
Number of poles
4
Product type

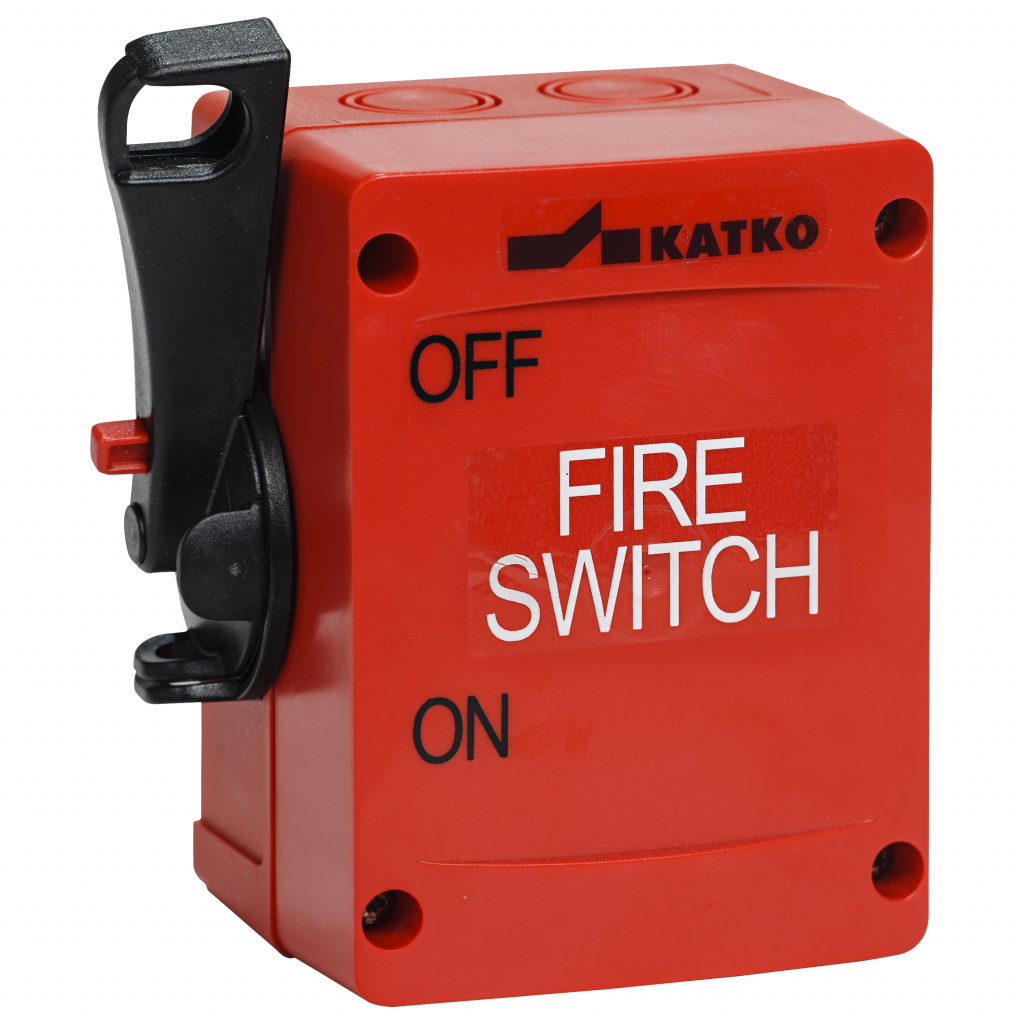

KEF 425 M M2S
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated short-ckt. making cap. Icm 415V (kA)
1.6
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch 4x25A IP66
Switch type
Load Break Switch
Technical name
4x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.0182 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
113 mm
Package size 1 GTIN code
6419410349731
Package size 1 height
258 mm
Package size 1 volume
3.4985 l
Package size 1 weight
1.8974 kg
Package size 1 width
120 mm
Sales unit
1
Downloadables
- Dimensional drawings media (a4173a1ebe04eca140932acc4e31eeff475cd39f_IsoSafe_M2S_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- STEP files (322559a083dddadf19fcab5d57be4fdefe16e5b1_IsoSafe_M2S.zip)
- DWG files (6a69789bd787b29db5082c8632e78b000faa0c39_IsoSafe_M2S_LKKE.zip)
- Installation manuals (c05736ed77b25d3075dd65bf60d0453e4a4537f6_KATKO_IsoSafe_KEF_installation_manual_47_en.pdf)
