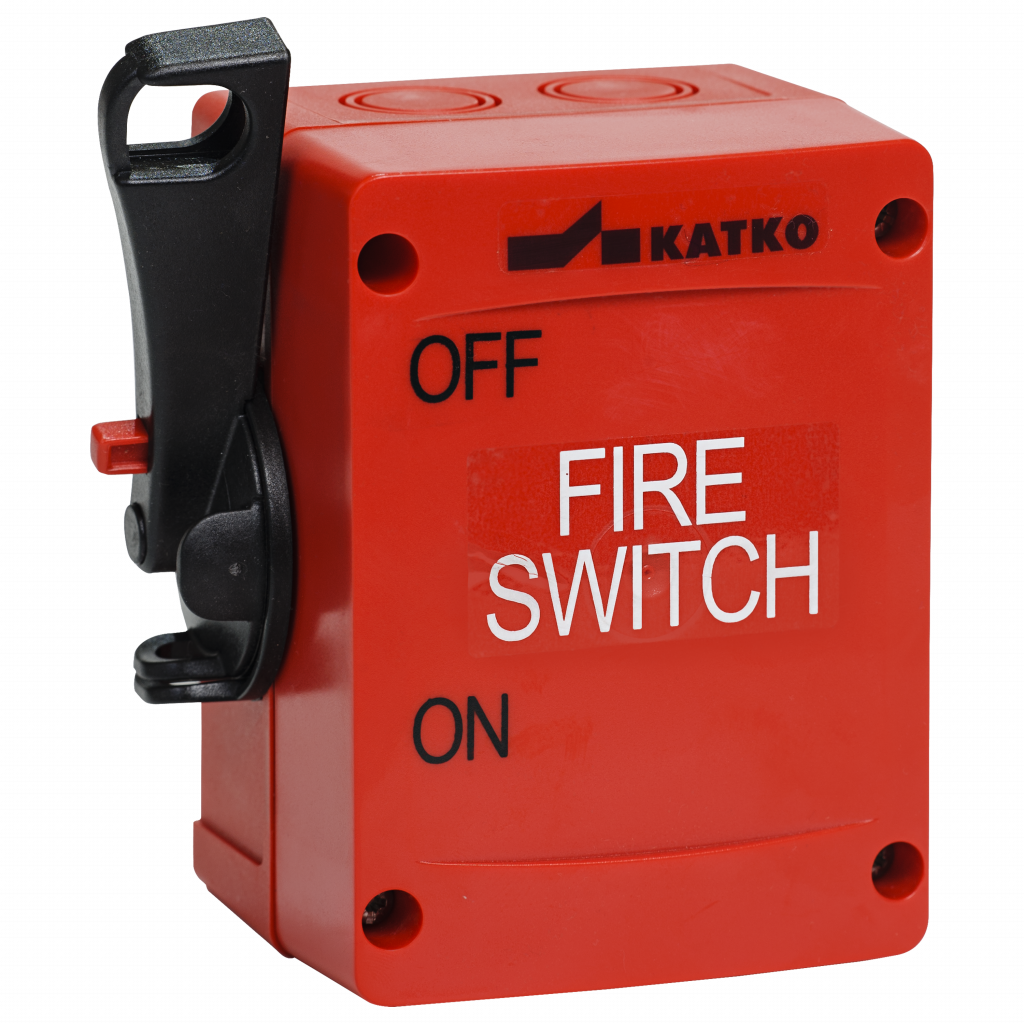

KEF 440 M M2S

Isolating switch 4x40A IP66

KEF 440 M M2S

Product Number
30441
Rated operational current AC-23A 415V (A)
40
Enclosure type
Polycarbonate
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410304419
Depth
81 mm
EMC
false
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
Height
130.4 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.4742 kg
Nom. values w/cable size (mm²)
10
Number of poles
4
Product type
KEF 440 M M2S
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated short-ckt. making cap. Icm 415V (kA)
1.6
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating switch 4x40A IP66
Switch type
Load Break Switch
Technical name
4x40A 400V 22kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.0182 l
Width
96.4 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
81 mm
Package size 1 GTIN code
6419410304419
Package size 1 height
130.4 mm
Package size 1 volume
1.0182 l
Package size 1 weight
0.4742 kg
Package size 1 width
96.4 mm
Sales unit
1
