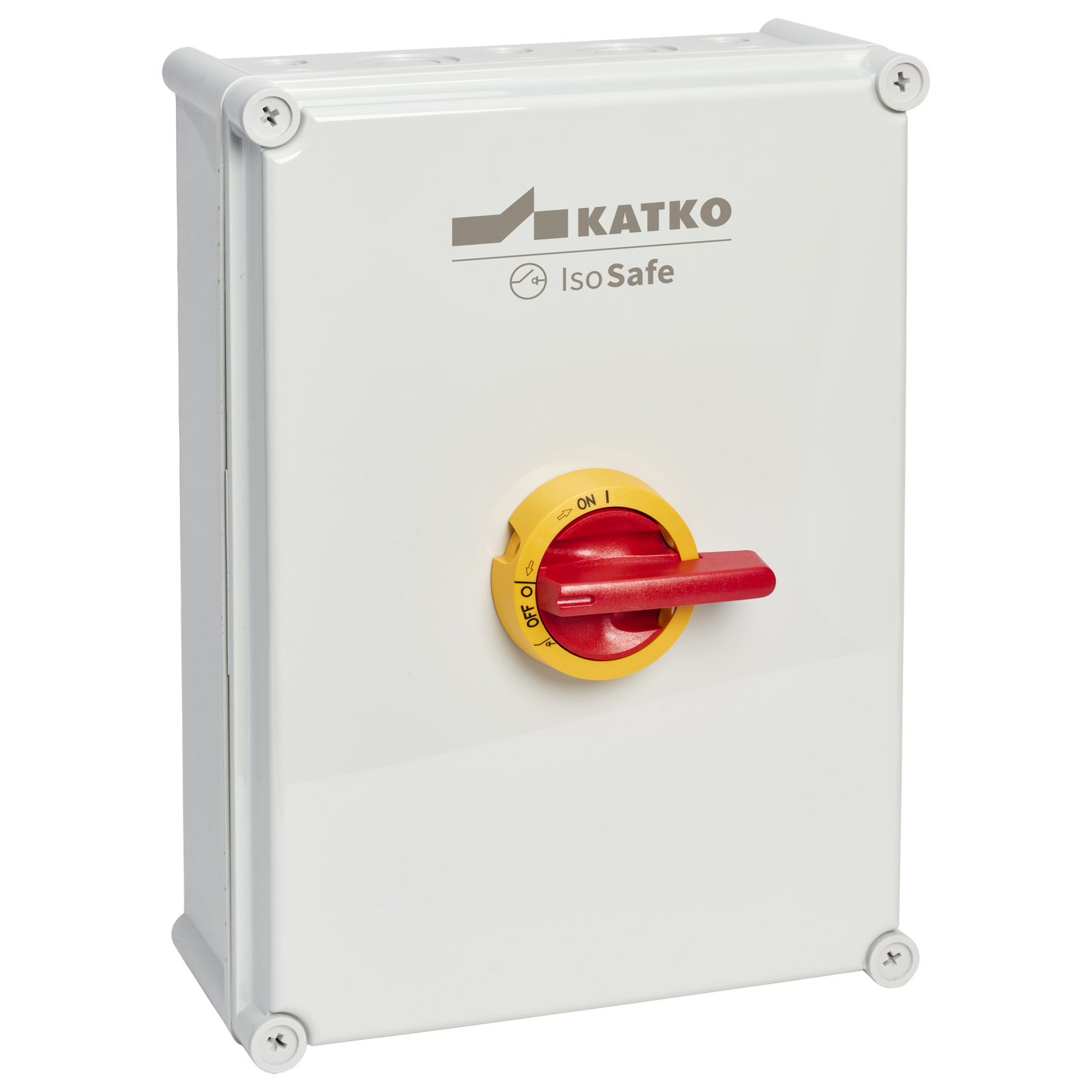

Manual motor controller 3x100A

KEM 3100UL98 YR MF11UL

Manual motor controller 3x100A

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.

Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.

GTIN
6419410315743
Ampere rating 600V
100
Enclosure type
Polycarbonate
Enclosure
MF11UL (280 x 380 x 130 mm)
View full details

Product details and documents

Technical data

Ampere rating 600V
100.0
Depth
130 mm
EMC
false
Enclosure
MF11UL (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315743
Height
380 mm
HP 208V
1.5
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
Long product name
UL98-listed, 3-pole, Yellow-red handle, Polycarbonate enclosure; W280 x H380 x D130
Net weight
2.9462 kg
Number of poles
3
Product type
KEM 3100UL98 YR MF11UL
Short product description
Manual motor controller 3x100A
Technical name
3x100A 400V 55kW
UL
UL98
Volume
13.832 l
Width
280 mm
Wire size Cu
8-1/0 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1 depth
106 mm
Package size 1 GTIN code
6419410353943
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 weight
0.3633 kg
Package size 1 width
96.4 mm

Downloadables

    No downloadable files available for this product.
