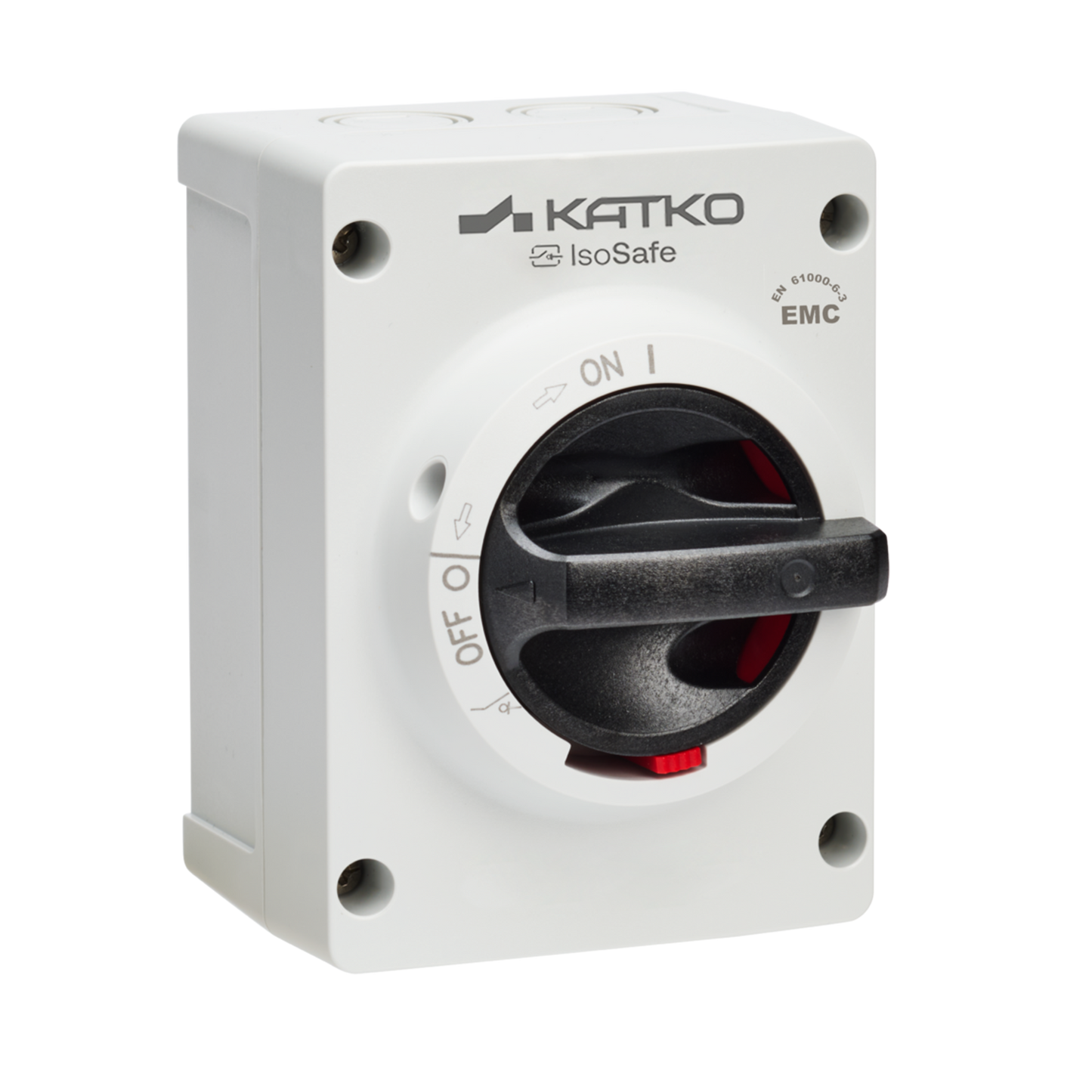

Isolating switch EMC 3x40A IP66

KEM 340 M2EMC 2XM25MEMC

Isolating switch EMC 3x40A IP66

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410275696
Rated operational current AC-23A 415V (A)
40
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
View full details

Product details and documents

Technical data

Cable entries
2 x M25 (11,0-17,0 mm), metal EMC
Depth
106 mm
EMC
true
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410275696
Height
130.4 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W96.4 x H130.4 x D106,EMC shielded, Cable entries: 2 x M25 (11,0-17,0 mm), metal EMC
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.441 kg
Nom. values w/cable size (mm²)
16
Number of poles
3
Product type
KEM 340 M2EMC 2XM25MEMC
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
4.5
Rated fused short-ckt current RMS Ik opt 1 (kA)
25
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
63
Rated therm. current Ith (A)
63
Short product description
Isolating switch EMC 3x40A IP66
Switch type
Load Break Switch
Technical name
3x40A 400V 22kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410336731
Package size 1 height
400 mm
Package size 1 volume
18 l
Package size 1 weight
8.808 kg
Package size 1 width
300 mm
Sales unit
1

Downloadables

    No downloadable files available for this product.
