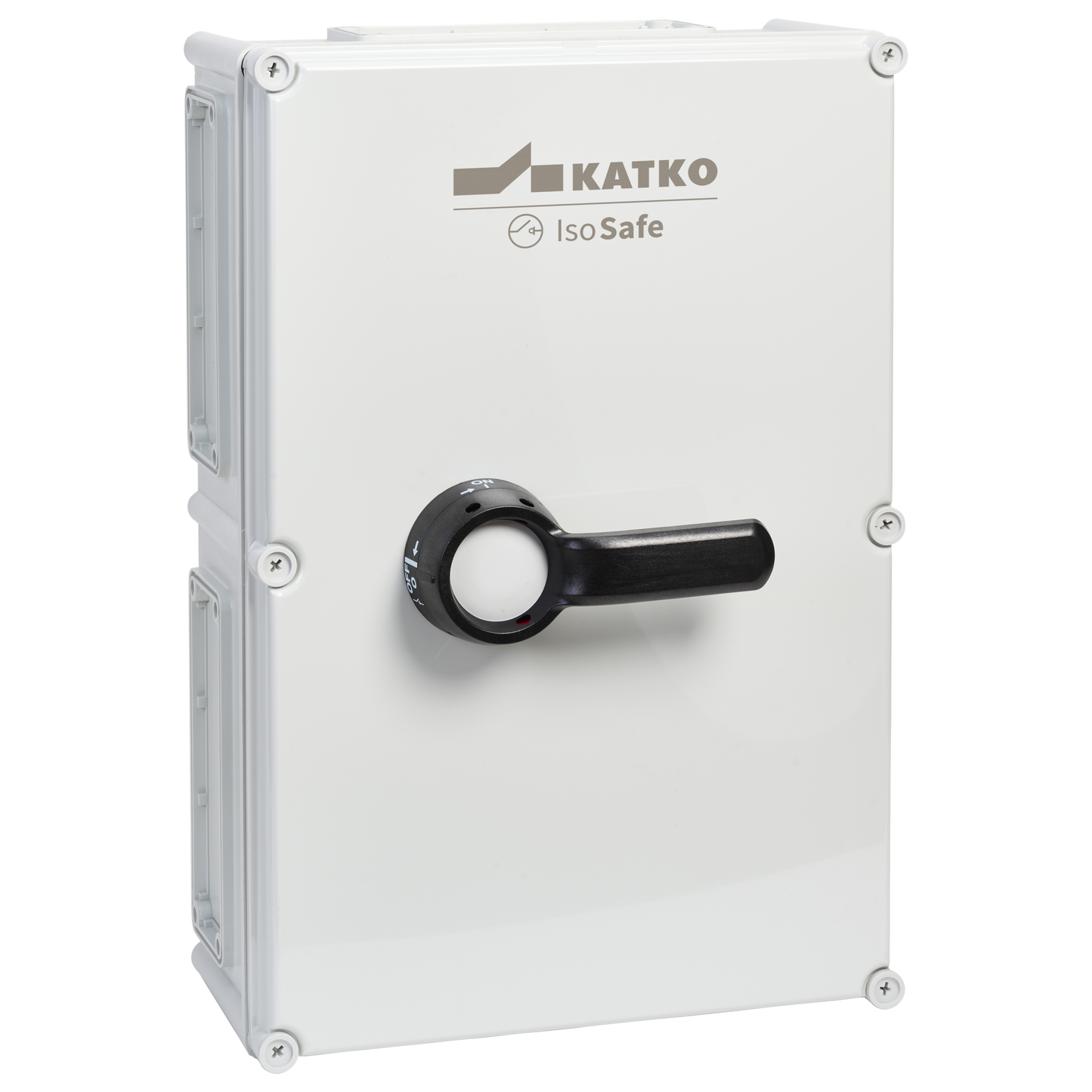

KEM 3400 MF03

Isolating switch 3x400A IP66

KEM 3400 MF03

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410325001
Rated operational current AC-23A 415V (A)
400
Enclosure type
Polycarbonate
Enclosure
MF03 (380 x 560 x 180 mm)
View full details

Product details and documents

Technical data

Depth
180 mm
EMC
false
Enclosure
MF03 (380 x 560 x 180 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410325001
Height
560 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W380 x H560 x D180
Max. term. torque (Nm)
30..44
Mech. endurance (no. of oper.)
10000
Net weight
10.5299 kg
Nom. values w/cable size (mm²)
240
Number of poles
3
Product type
KEM 3400 MF03
Rated breaking cap. ICN AC-23A 415V (A)
3200
Rated breaking cap. ICN AC-23A 500V (A)
3200
Rated breaking cap. ICN AC-23A 690V (A)
3200
Rated fused short-ckt current back-up fuse opt 1 (A)
400
Rated fused short-ckt current peak value (kA)
42
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
400
Rated operational current AC-21A 500V (A)
400
Rated operational current AC-21A 690V (A)
400
Rated operational current AC-22A 415V (A)
400
Rated operational current AC-22A 500V (A)
400
Rated operational current AC-22A 690V (A)
400
Rated operational current AC-22B 800V (A)
400
Rated operational current AC-23A 1000V (A)
200
Rated operational current AC-23A 415V (A)
400
Rated operational current AC-23A 500V (A)
400
Rated operational current AC-23A 690V (A)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
250
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
355
Rated short-ckt. making cap. Icm 690V (kA)
27.5
Rated short-time withstand current 1s Icw 1000V (kA)
13.5
Rated therm. current Ithe (A)
400
Rated therm. current Ith (A)
400
Short product description
Isolating switch 3x400A IP66
Switch type
Load Break Switch
Technical name
3x400A 400V 200kW
Terminals bolt size (Cu mm²)
M10
Volume
38.304 l
Width
380 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
106 mm
Package size 1 GTIN code
6419410444320
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 width
96.4 mm
Sales unit
1
