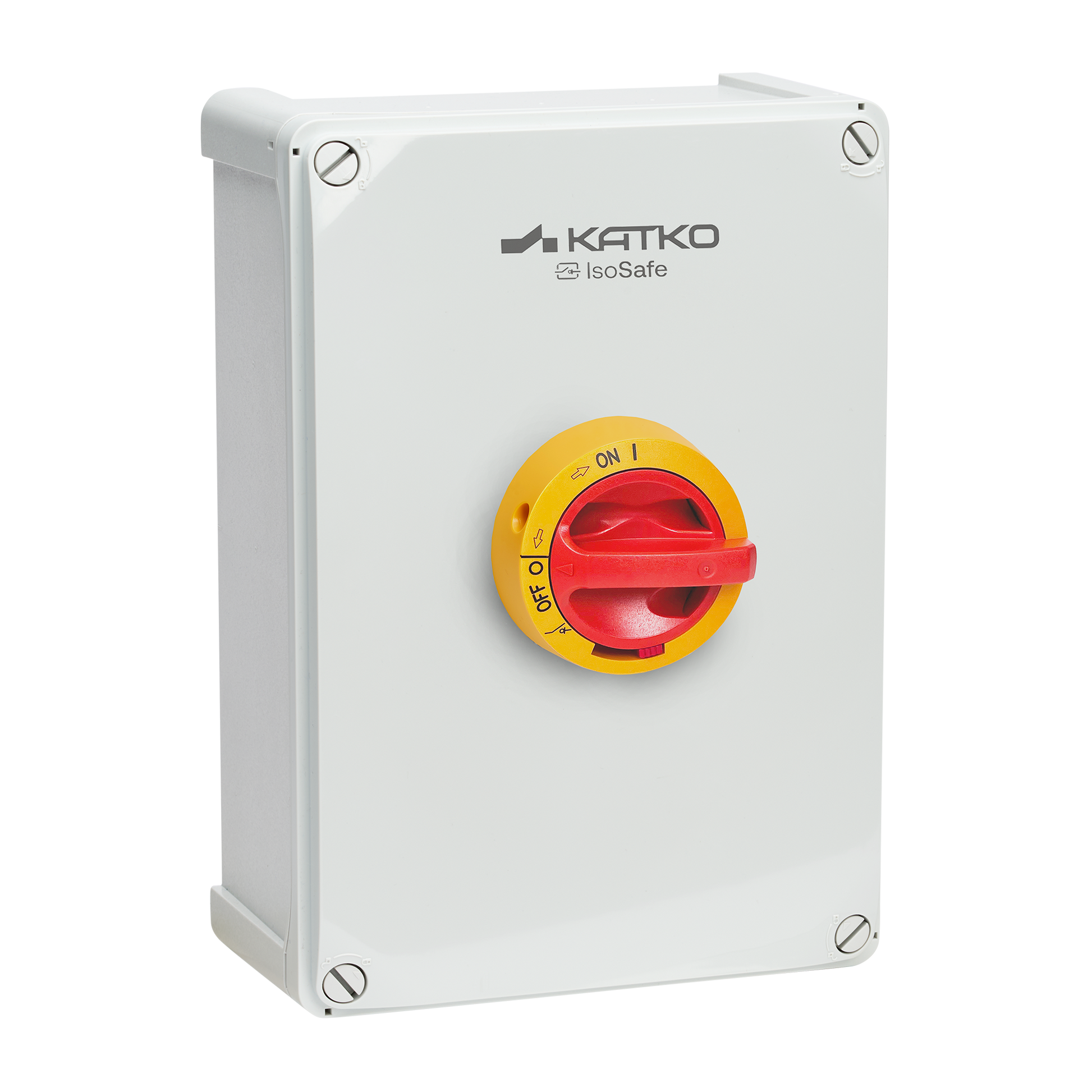

Isolating switch 4x100A IP66

KEM 4100 YR M4

Isolating switch 4x100A IP66

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410315156
Rated operational current AC-23A 415V (A)
100
Enclosure type
Polycarbonate
Enclosure
M4 (190 x 270 x 100 mm)
View full details

Product details and documents

Technical data

Depth
100 mm
EMC
false
Enclosure
M4 (190 x 270 x 100 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315156
Height
270 mm
IP rating
IP66
Long product name
4-pole, Yellow-red handle, Polycarbonate enclosure; W190 x H270 x D100
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
1.5018 kg
Nom. values w/cable size (mm²)
70
Number of poles
4
Product type
KEM 4100 YR M4
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Isolating switch 4x100A IP66
Switch type
Load Break Switch
Technical name
4x100A 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
5.13 l
Width
190 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
96 mm
Package size 1 GTIN code
6419410296073
Package size 1 height
190 mm
Package size 1 volume
2.6266 l
Package size 1 weight
0.7521 kg
Package size 1 width
144 mm
Sales unit
1
