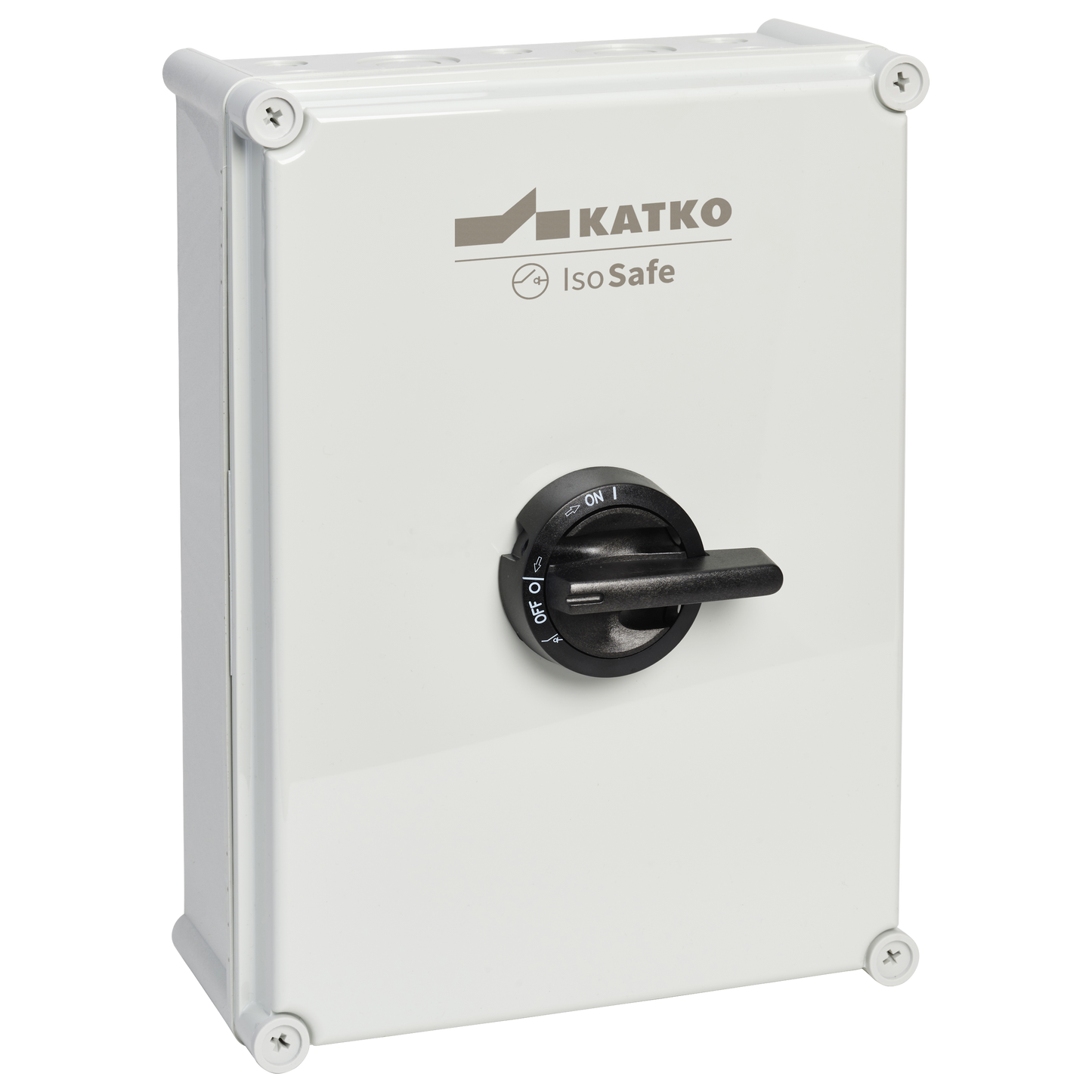

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
100.0
Depth
130 mm
EMC
false
Enclosure
MF11UL (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315637
Height
380 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name
UL98-listed, 4-pole, Polycarbonate enclosure; W280 x H380 x D130
Net weight
2.9659 kg
Number of poles
4
Product type
KEM 4100UL98 MF11UL
Short product description
Manual motor controller 4x100A
Technical name
4x100A 400V 55kW
UL
UL98
Volume
13.832 l
Width
280 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410202043
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
3.0279 kg
Package size 1 width
162 mm
Downloadables
- Dimensional drawings media (34f834c0e351eefb881ce69e7adb562127ecf74c_IsoSafe_MF11UL_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
