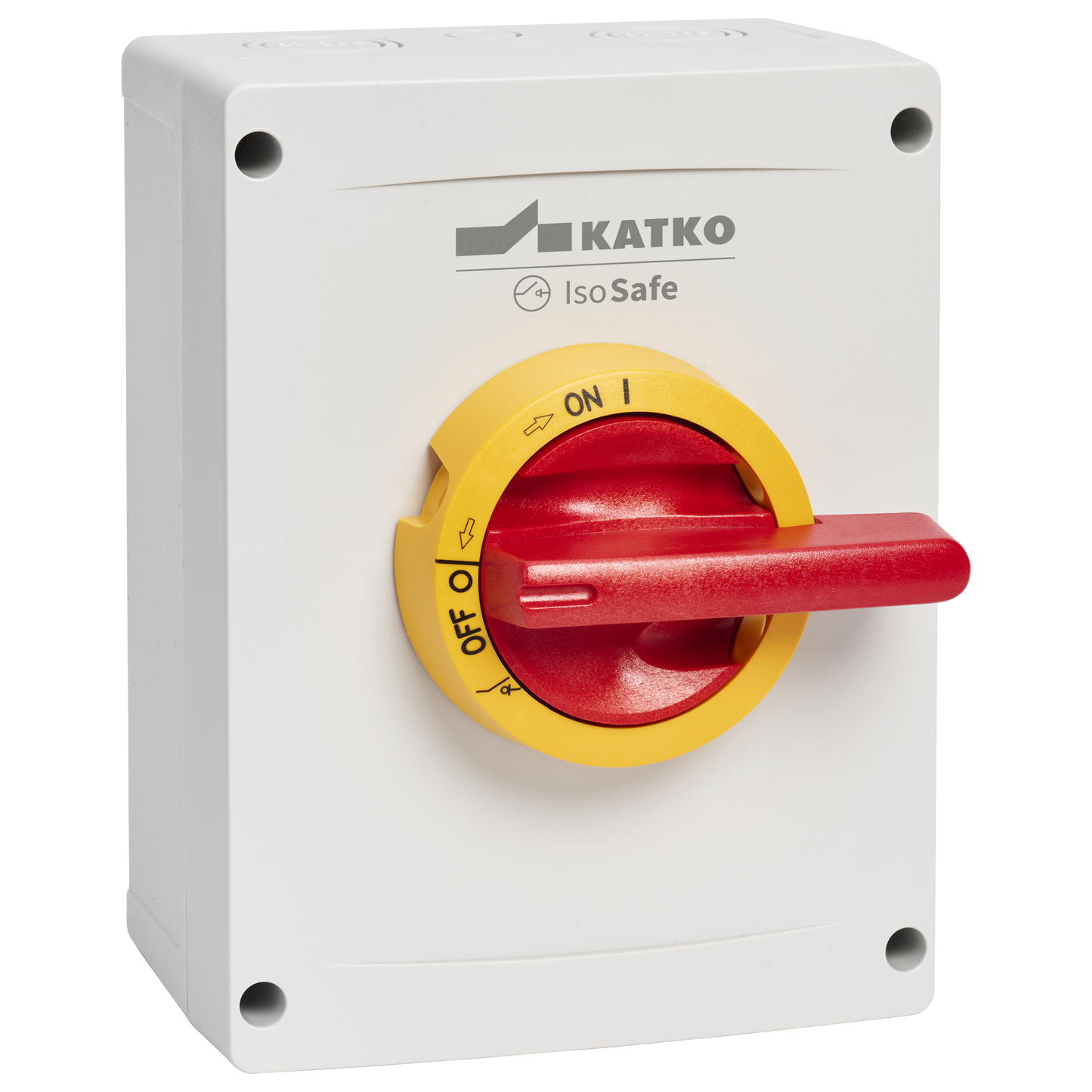

KEM 460UL YR M3

Manual motor controller 4x60A

KEM 460UL YR M3

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

GTIN
6419410351420
Ampere rating 600V
60
Enclosure type
Polycarbonate
Enclosure
M3 (144 x 190 x 96 mm)

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
60.0
Depth
96 mm
EMC
false
Enclosure
M3 (144 x 190 x 96 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410351420
Height
190 mm
HP 208V
10.0
HP 415V
10.0
HP 480V
25.0
HP 600V
25.0
IP rating
IP66
Long product name
UL-listed, 4-pole, Yellow-red handle, Polycarbonate enclosure; W144 x H190 x D96
Net weight
1.1087 kg
Number of poles
4
Product type
KEM 460UL YR M3
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL 60947-4-1A
Volume
2.6266 l
Width
144 mm
Wire size Cu
12-4AWG

Dimensional drawing

Logistical data

Package size 1 depth
120 mm
Package size 1 GTIN code
6419410351420
Package size 1 height
300 mm
Package size 1 volume
5.4 l
Package size 1 weight
1.1087 kg
Package size 1 width
150 mm
