Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
171 mm
EMC
false
Enclosure
MF10 (188 x 280 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315613
Height
280 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name
UL98-listed, 4-pole, Polycarbonate enclosure; W188 x H280 x D171
Net weight
1.8818 kg
Number of poles
4
Product type

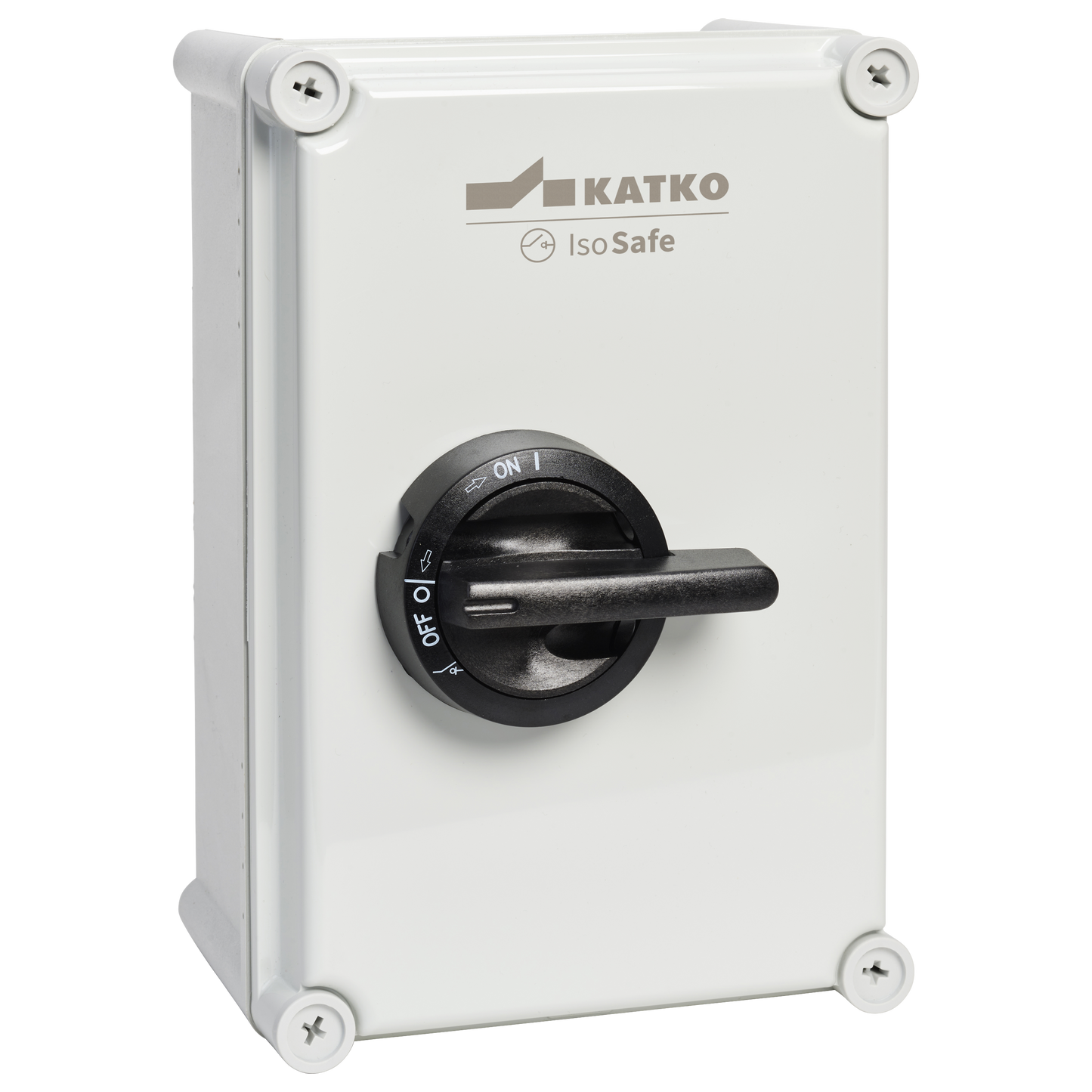

KEM 460UL98 MF10
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL98
Volume
9.0014 l
Width
188 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
113 mm
Package size 1 GTIN code
6419410349939
Package size 1 height
258 mm
Package size 1 volume
3.4985 l
Package size 1 weight
1.9066 kg
Package size 1 width
120 mm
Downloadables
- Dimensional drawings media (cc20568c431f2628b050995ff79bb566ee462ecb_IsoSafe_MF10_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
