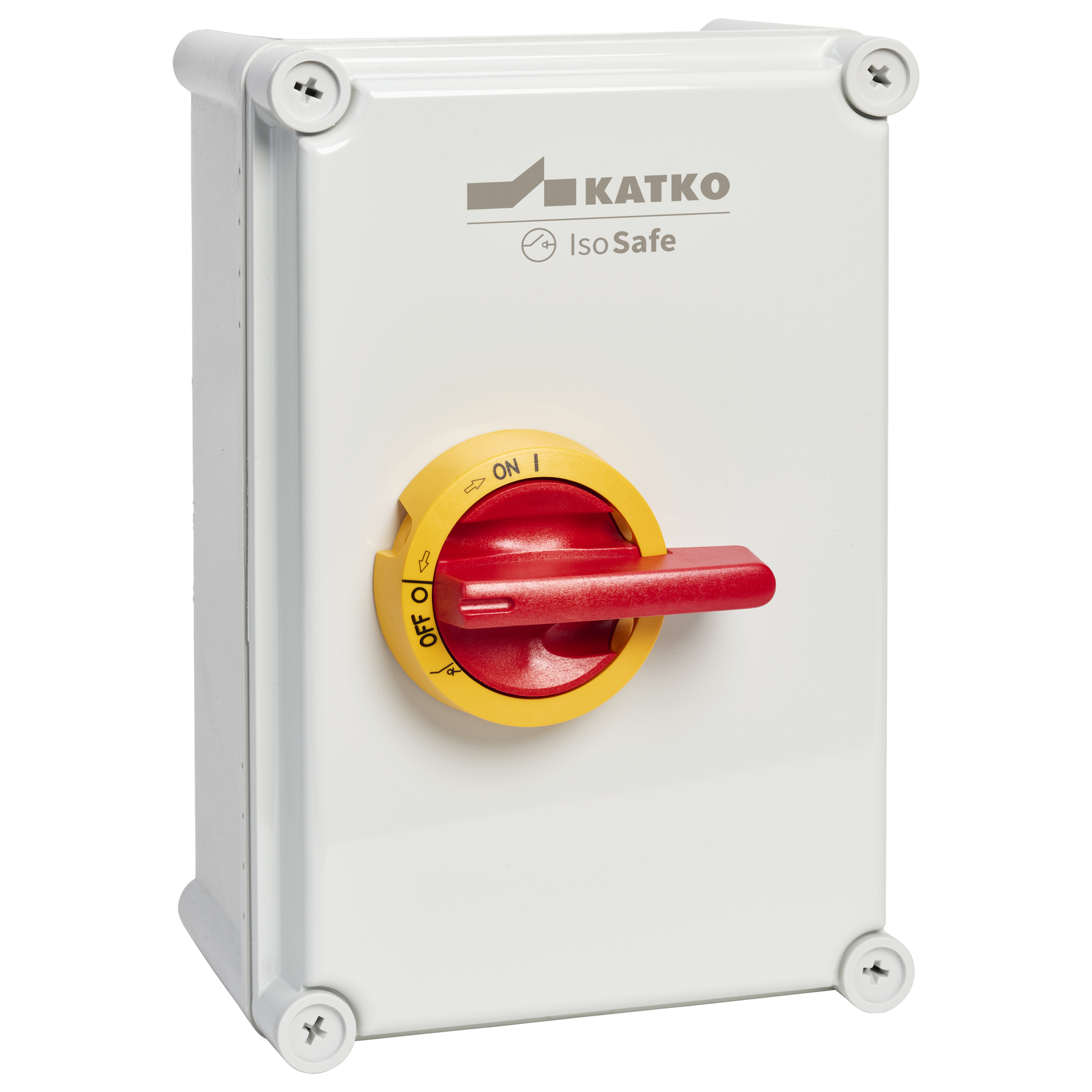

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
171 mm
EMC
false
Enclosure
MF10 (188 x 280 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315736
Height
280 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name
UL98-listed, 4-pole, Yellow-red handle, Polycarbonate enclosure; W188 x H280 x D171
Net weight
1.8828 kg
Number of poles
4
Product type
KEM 460UL98 YR MF10
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL98
Volume
9.0014 l
Width
188 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
120 mm
Package size 1 GTIN code
6419410347843
Package size 1 height
400 mm
Package size 1 volume
14.4 l
Package size 1 weight
7.7924 kg
Package size 1 width
300 mm
