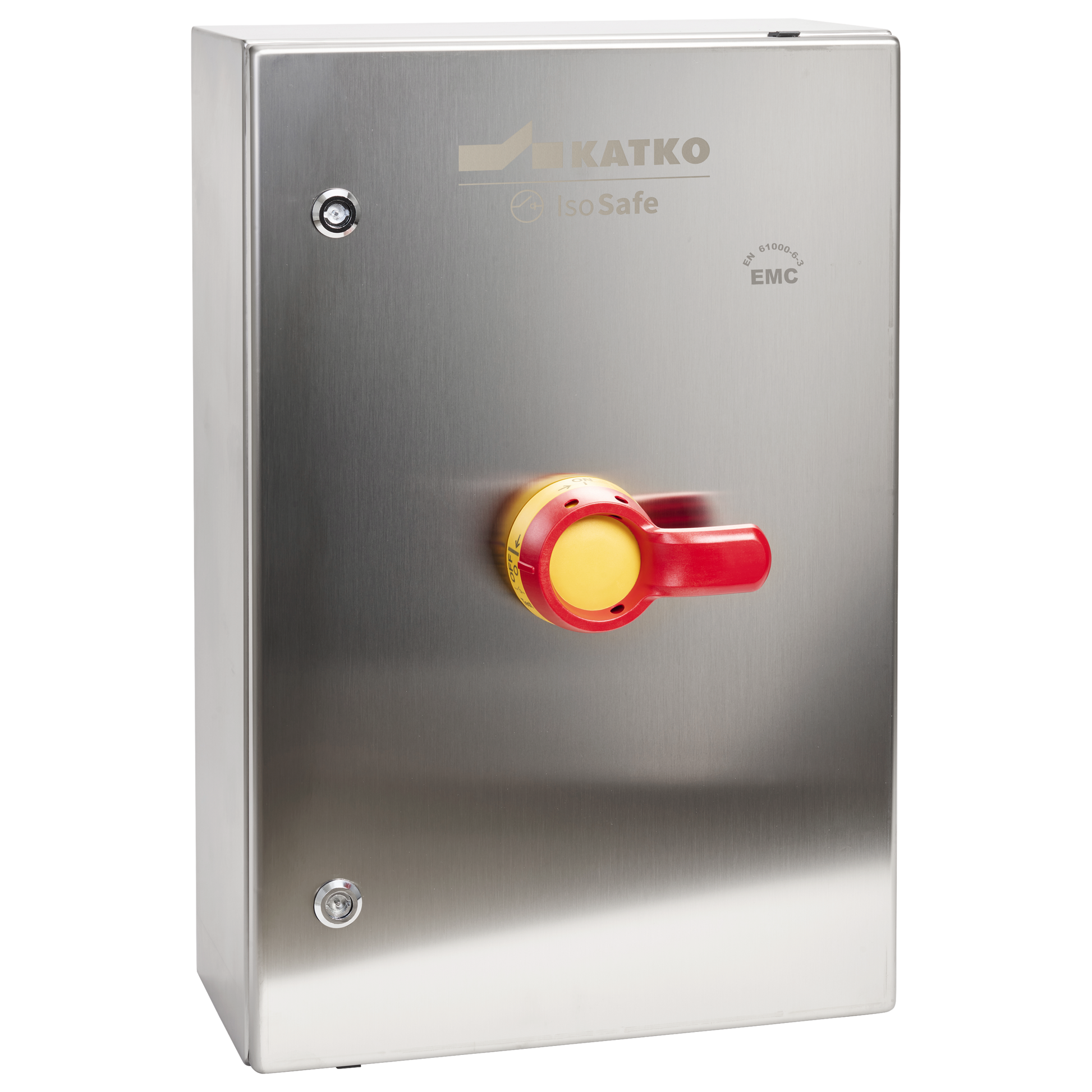

Isolating switch EMC 3x200A IP66

KER 3200 YR R6EMC 2XM50MEMC

Isolating switch EMC 3x200A IP66

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410342404
Rated operational current AC-23A 415V (A)
200
Enclosure type
Stainless steel (AISI 304)
Enclosure
R6 (400 x 600 x 200 mm)
View full details

Product details and documents

Technical data

Cable entries
2 x M50 (27,0-38,0 mm), metal EMC
Depth
200 mm
EMC
true
Enclosure
R6 (400 x 600 x 200 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
GTIN
6419410342404
Height
600 mm
IP rating
IP66
Long product name
3-pole, Yellow-red handle, Stainless steel enclosure (AISI 304); W400 x H600 x D200,EMC shielded, Cable entries: 2 x M50 (27,0-38,0 mm), metal EMC
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
16.8023 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KER 3200 YR R6EMC 2XM50MEMC
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch EMC 3x200A IP66
Switch type
Load Break Switch
Technical name
3x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
48 l
Width
400 mm

Dimensional drawing

Logistical data

Package size 1
1
Sales unit
1
