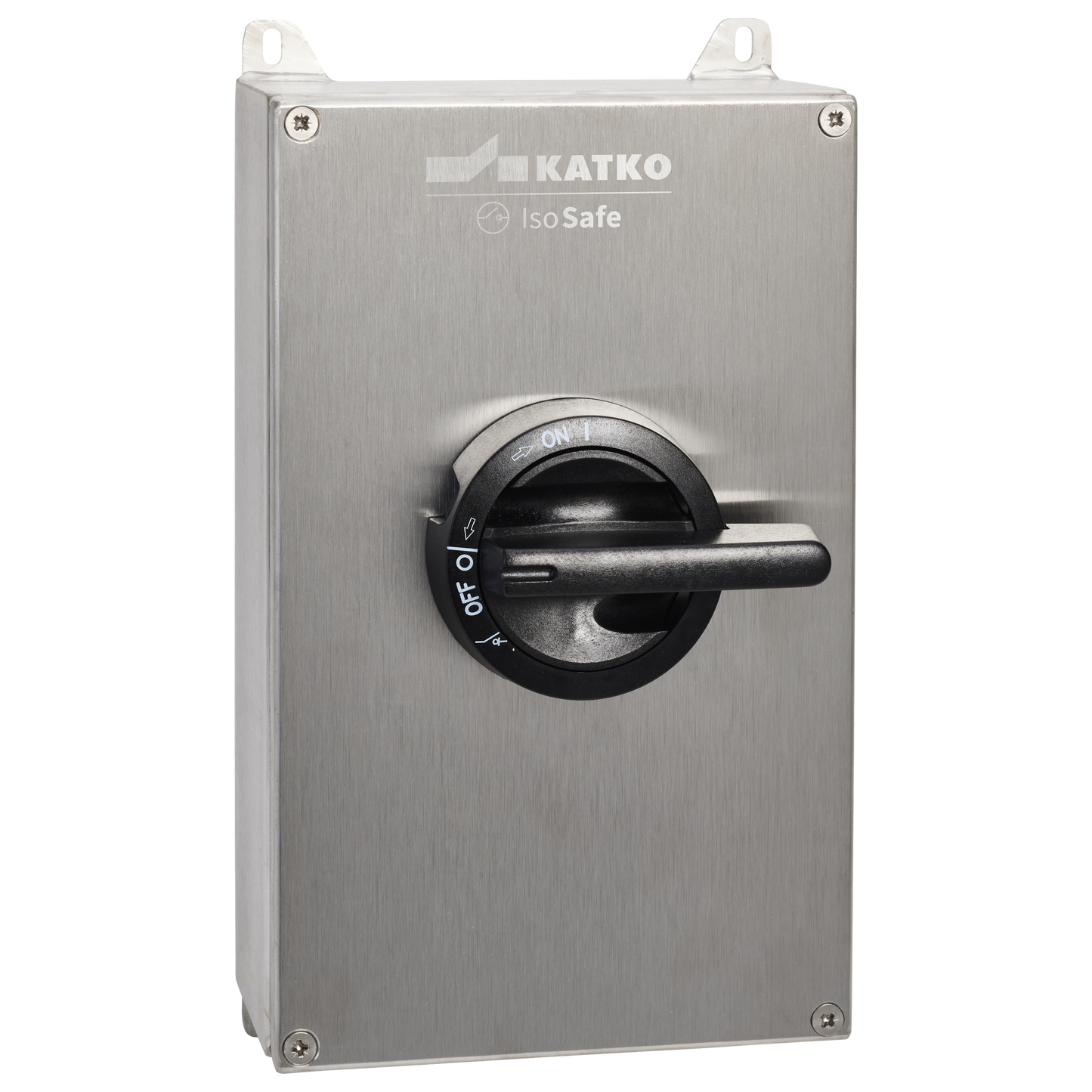

KER 332 1NOIP69K RA4EMC 2XM40MEMC M16M FI

Isolating switch EMC 3x32A IP69K 1NO

KER 332 1NOIP69K RA4EMC 2XM40MEMC M16M FI

Katko IsoSafe IP69K-rated stainless steel safety switches are engineered for environments requiring the highest levels of protection, hygiene and corrosion resistance. Housed in acid-proof AISI 316L enclosures with IP69K protection, these switches withstand high-pressure, high-temperature washdowns and harsh conditions, making them ideal for food processing, pharmaceutical facilities, washdown zones and other demanding applications.

Designed for dependable performance, the range combines robust construction with clear, front-operated switching and padlockable interlocks, ensuring both safety and reliability in challenging environments.

GTIN
6419410300886
Rated operational current AC-23A 415V (A)
32
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA4 (160 x 260 x 90 mm)
Mounted auxiliary contacts
1NO

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Cable entries
2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Cover label
turvakytkin
Depth
90 mm
EMC
true
Enclosure
RA4 (160 x 260 x 90 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
E-number FI
3662199
GTIN
6419410300886
Height
260 mm
IP rating
IP69K
Long product name
3-pole, Auxiliary contact 1NO, IP69K, Acid-resistant stainless steel enclosure (AISI 316L); W160 x H260 x D90,EMC shielded, Cable entries: 2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KER 332 1NOIP69K RA4EMC 2XM40MEMC M16M FI
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
4.5
Rated fused short-ckt current RMS Ik opt 1 (kA)
25
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
32
Rated operational current AC-22A 500V (A)
32
Rated operational current AC-22A 690V (A)
32
Rated operational current AC-23A 415V (A)
32
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating switch EMC 3x32A IP69K 1NO
Switch type
KU 340 / KU 440
Technical name
3x32A 400V 15kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
3.744 l
Width
160 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
300 mm
Package size 1 GTIN code
6419410300886
Package size 1 height
800 mm
Package size 1 volume
192 l
Package size 1 width
800 mm
Sales unit
1
