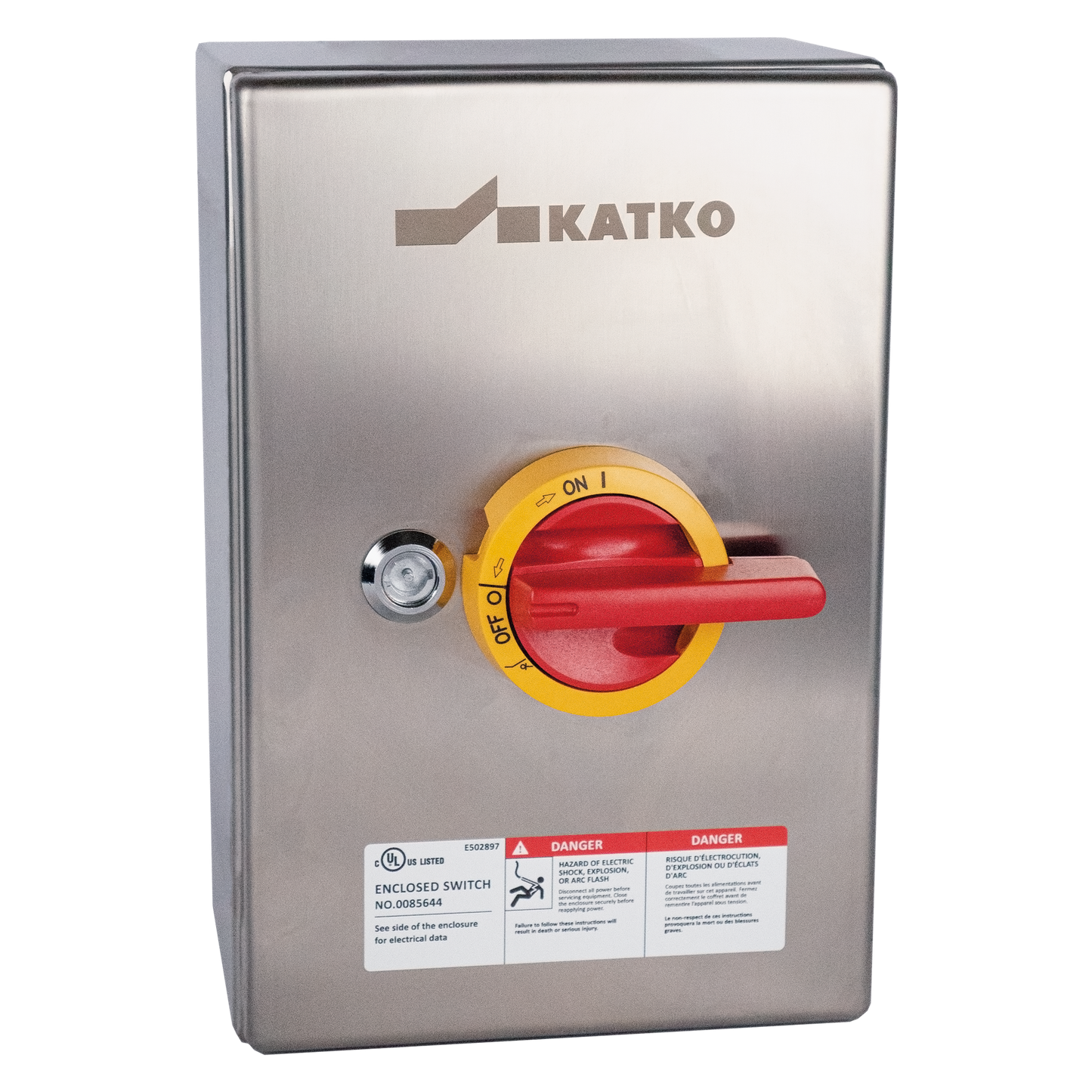

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
Product Number
Ampere rating 600V
Enclosure type
Enclosure
Technical data
GTIN
6419410315811
Ampere rating 600V
60.0
Depth
150 mm
EMC
false
Enclosure
R4B (200 x 300 x 150 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
Height
300 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Net weight
5.6274 kg
Number of poles
4
Product type
KER 460UL98 YR R4B
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL98
Volume
9 l
Width
200 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410315811
Package size 1 height
300 mm
Package size 1 volume
9 l
Package size 1 weight
5.6274 kg
Package size 1 width
200 mm
Downloadables
- Dimensional drawings media (IsoSafe_R4B_Dim.png)
- Connection diagram media (Katko_KU4P_diagram)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators EN)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- Brochures (Katko IsoSafe UL Listed Selection Brochure EN)
- Brochures (Katko IsoSafe Brochure – UL 98 Listed Open and Enclosed Disconnect Switches EN)
