Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
100.0
Depth
150 mm
EMC
false
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410315781
Height
400 mm
HP 208V
1.5
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
IP rating
IP66
Long product name

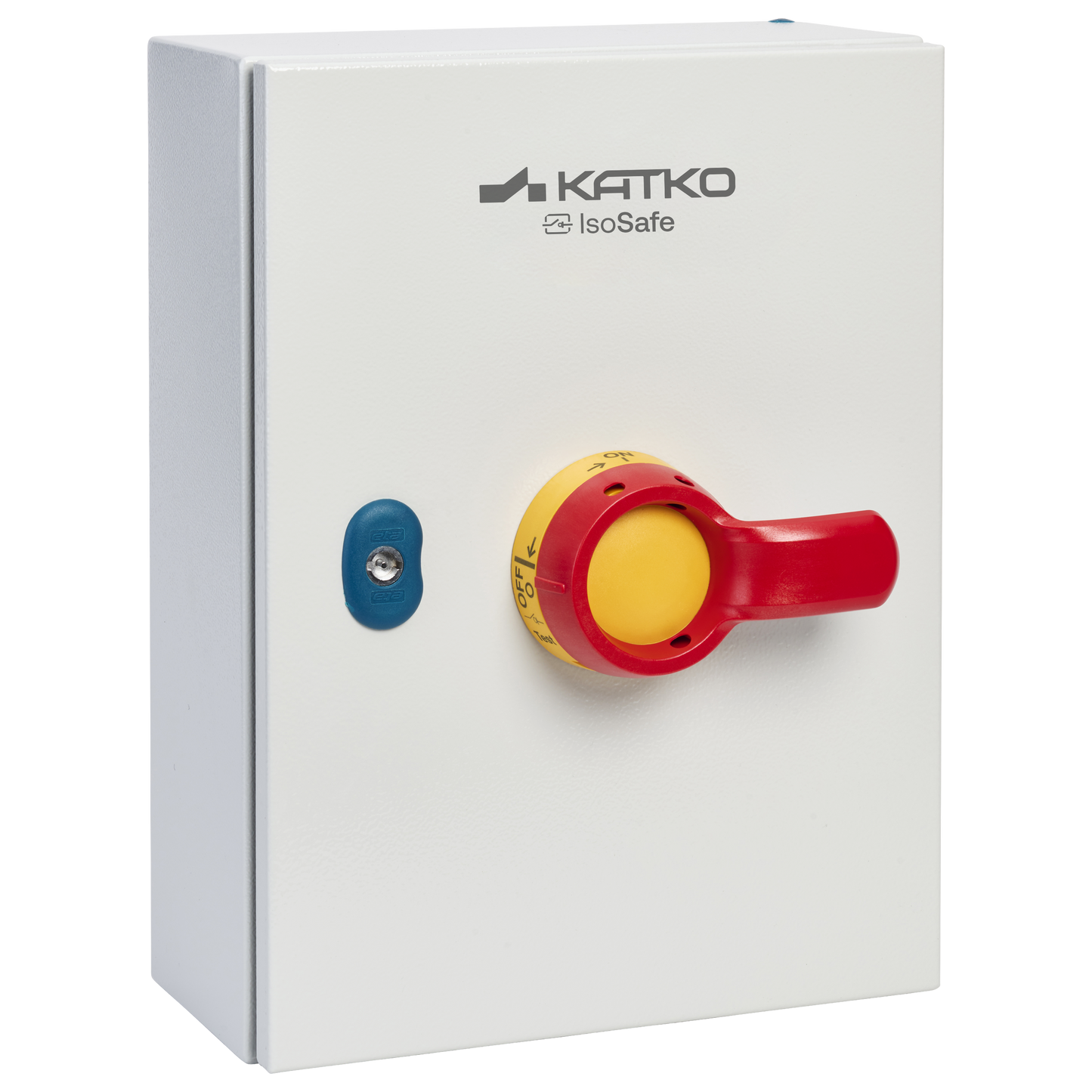

UL98-listed, 3-pole, Yellow-red handle, Sheet steel enclosure; W300 x H400 x D150
Net weight
7.9455 kg
Number of poles
3
Product type
KET 3100UL98 YR T5
Short product description
Manual motor controller 3x100A
Technical name
3x100A 400V 55kW
UL
UL98
Volume
18 l
Width
300 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
106 mm
Package size 1 GTIN code
6419410346969
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 width
96.4 mm
Downloadables
- Dimensional drawings media (949ab4b67a6386a6ca4f5938872ac06dd3aae60b_IsoSafe_T5_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
