Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
120 mm
EMC
false
Enclosure
T4 (150 x 300 x 120 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410315644
Height
300 mm
HP 208V
1.5
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
IP rating
IP66
Long product name
UL98-listed, 3-pole, Sheet steel enclosure; W150 x H300 x D120
Net weight
3.3178 kg
Number of poles
3
Product type

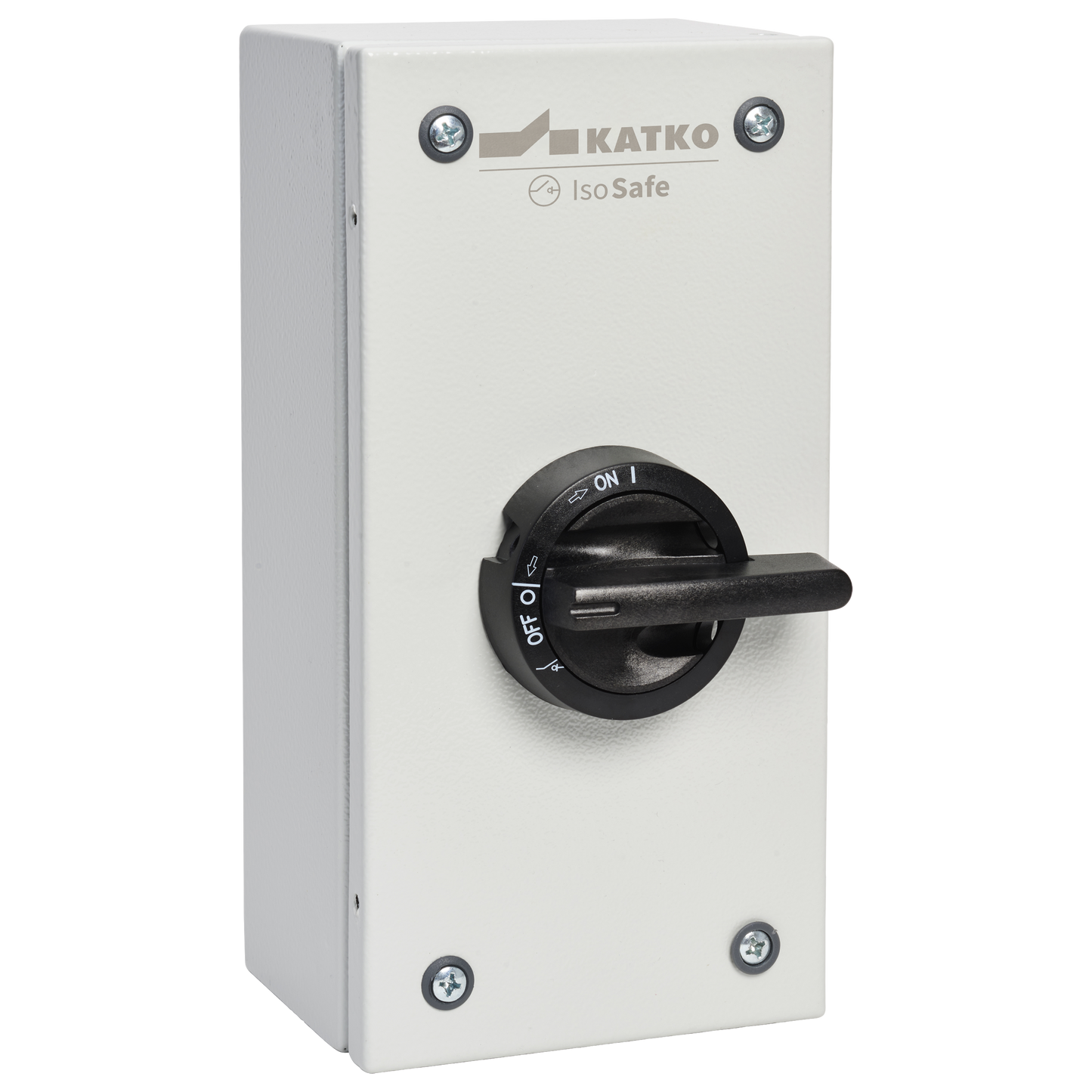

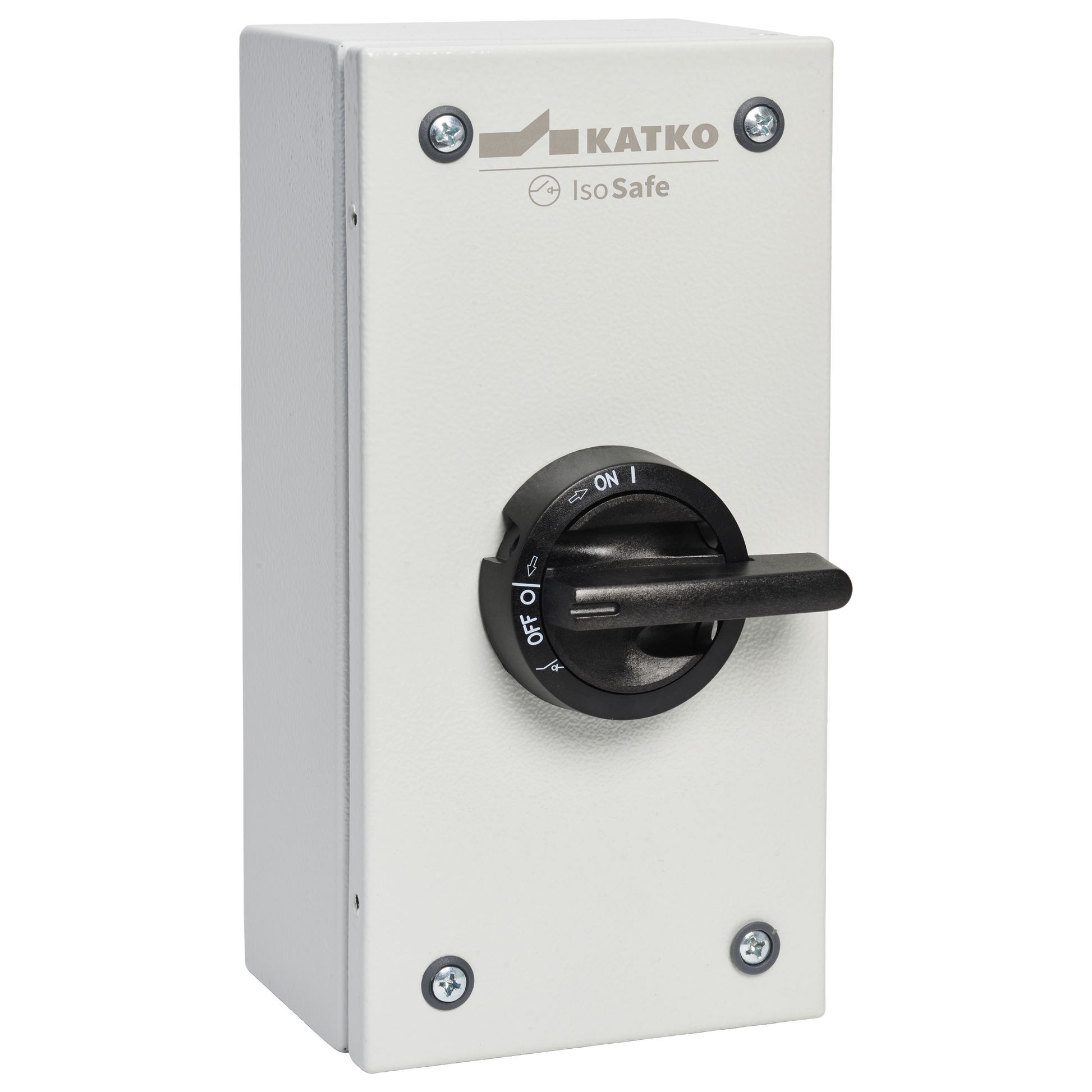

KET 360UL98 T4
Short product description
Manual motor controller 3x60A
Technical name
3x40A 400V 22kW
UL
UL98
Volume
5.4 l
Width
150 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
77 mm
Package size 1 GTIN code
6419410275634
Package size 1 height
160 mm
Package size 1 volume
1.4784 l
Package size 1 weight
0.6543 kg
Package size 1 width
120 mm
Downloadables
- Dimensional drawings media (9ccd06d76365cf7d844f6066b799de5fb7c8c182_IsoSafe_T4_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
- Installation manuals (8514e98ff24c35edf9d539d39d787bd8c83645b5_KATKO_IsoSafe_T4_installation_manual_108_en.pdf)
