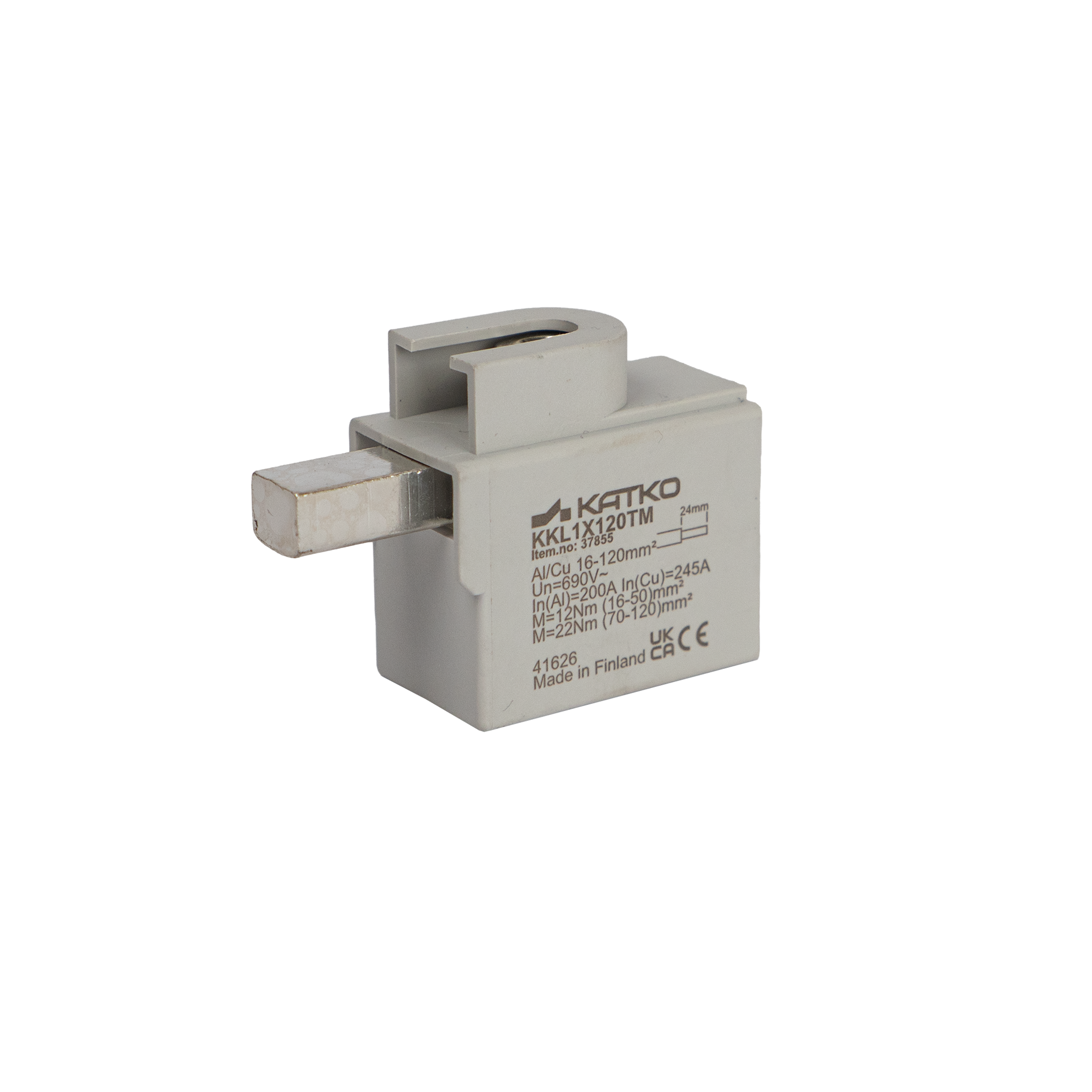

Cable connector KKL 1xAl/Cu 16-120mm2

KKL1X120TM

Cable connector KKL 1xAl/Cu 16-120mm2

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.

E-number FI
In Cu
245
In Al
200
View full details

Product details and documents

Technical data

Depth
57 mm
ETIM Class
EC001284
E-number FI
1942085
GTIN
6419410378557
Height
42 mm
In Al
200.0
In Cu
245.0
Key size
Hex 6
Net weight
0.0913 kg
Product type
KKL1X120TM
Short product description
Cable connector KKL 1xAl/Cu 16-120mm2
Technical name
1x16-120mm² Al/Cu
Torque Al/Cu (Nm)
12 (16-50 mm²) / 22 (70-120 mm²)
Volume
0.0575 l
Width
24 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Downloadables

    No downloadable files available for this product.
