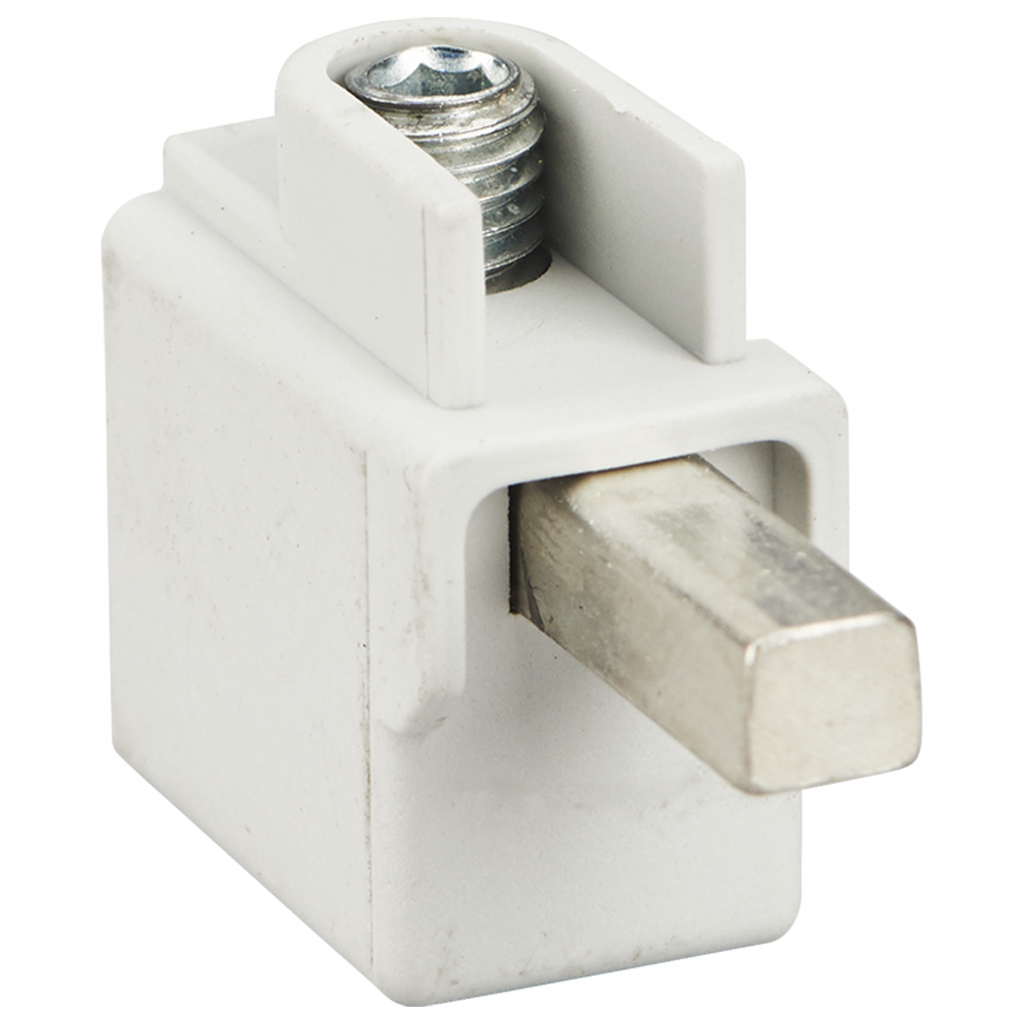

KKL1X16

Cable connector KKL 1xAl/Cu 1,5-16mm2

KKL1X16

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.

E-number FI
1942079
In Cu
63
In Al
63
Cu (mm²)
1,5-16
Al (mm²)
1,5-16

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Al (mm²)
1,5-16
Cu (mm²)
1,5-16
Depth
35 mm
ETIM Class
EC001284
E-number FI
1942079
GTIN
6419410378496
Height
24 mm
In Al
63.0
In Cu
63.0
Key size
Hex 3
Net weight
0.0266 kg
Product type
KKL1X16
Short product description
Cable connector KKL 1xAl/Cu 1,5-16mm2
Technical name
1x1,5-16mm² Al/Cu
Torque Al/Cu (Nm)
2,2 (1,5-16mm²)
Volume
0.0109 l
Width
13 mm

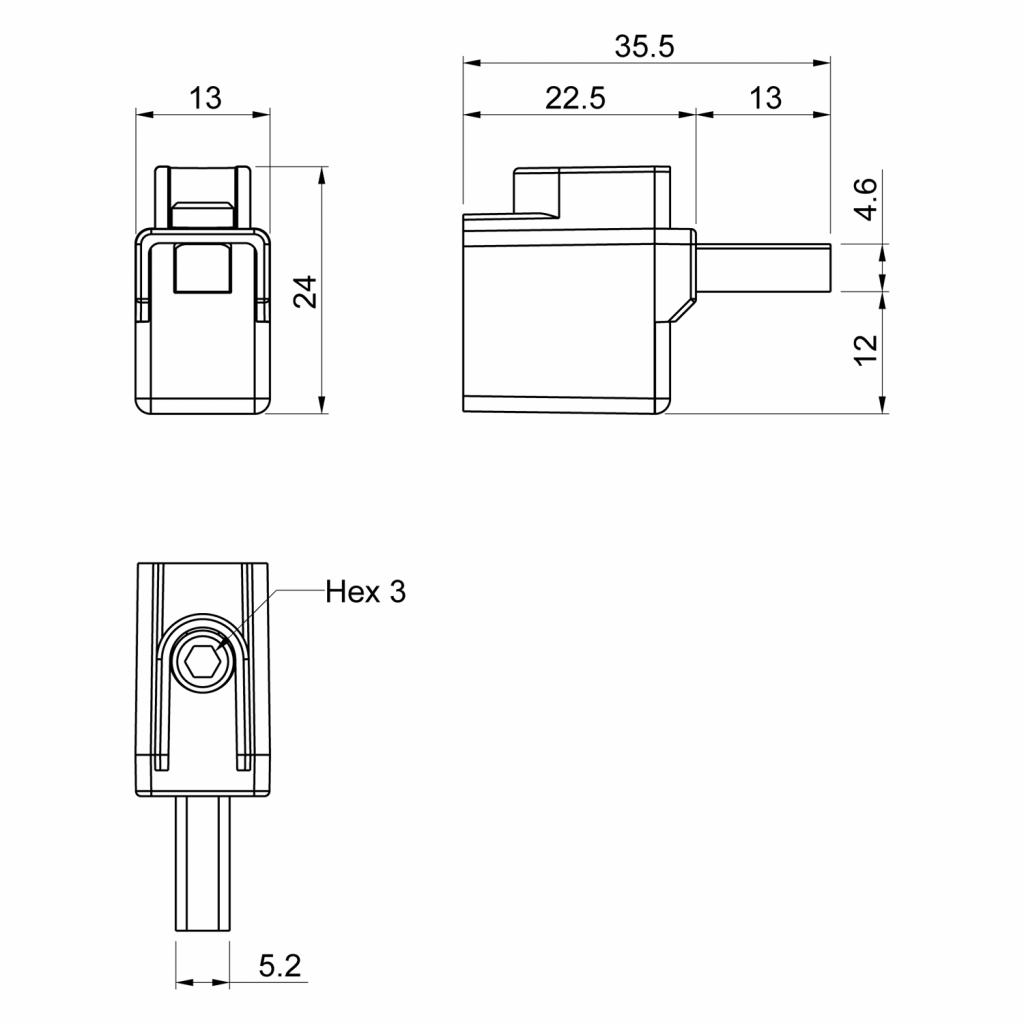

Dimensional drawing

Logistical data

Package size 1
30
Package size 1 GTIN code
6419410378496
Package size 1 weight
0.0266 kg
