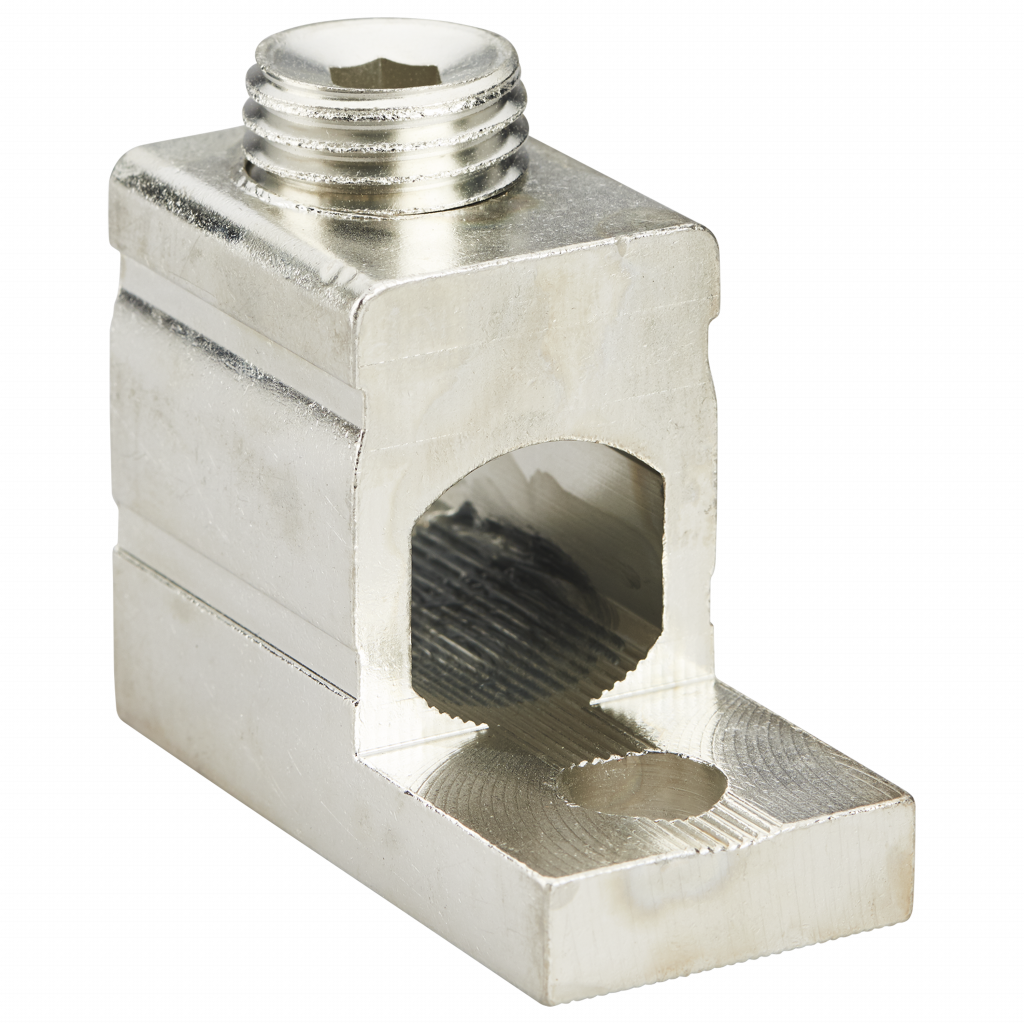

Cable connector KKL 1xAl/Cu 35-240mm2

KKL1X240M8

Cable connector KKL 1xAl/Cu 35-240mm2

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.

E-number FI
In Cu
424
In Al
315
View full details

Product details and documents

Technical data

Depth
47 mm
ETIM Class
EC000897
E-number FI
1942146
GTIN
6419410229149
Height
65 mm
In Al
315.0
In Cu
424.0
Key size
Hex 8
Net weight
0.2773 kg
Product type
KKL1X240M8
Short product description
Cable connector KKL 1xAl/Cu 35-240mm2
Torque Al/Cu (Nm)
25 (35-120 mm²) / 55 (150-240 mm²)
Volume
0.0978 l
Width
32 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.
