Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Depth
58 mm
ETIM Class
EC000897
E-number FI
1942109
GTIN
6419410484289
Height
92 mm
In Al
400.0
In Cu
520.0
Key size
Hex 12
Net weight
0.4974 kg
Product type
KKL1X300
Short product description

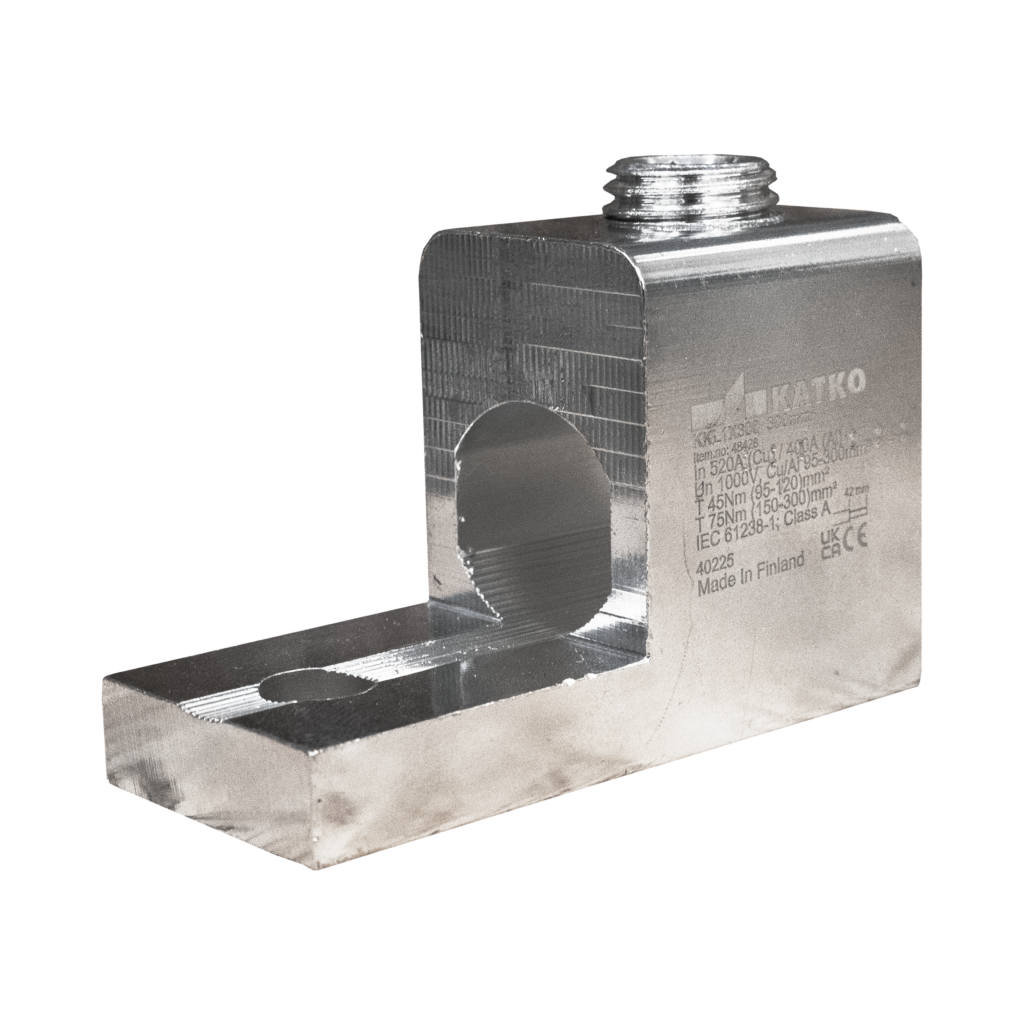

Cable connector KKL 1xAl/Cu 95-300mm2
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.2108 l
Width
39.5 mm
Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (c21f5c96cbb57e299bfdd191816df3a55209ab3d_ConnectSafe_KKL1X300_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
