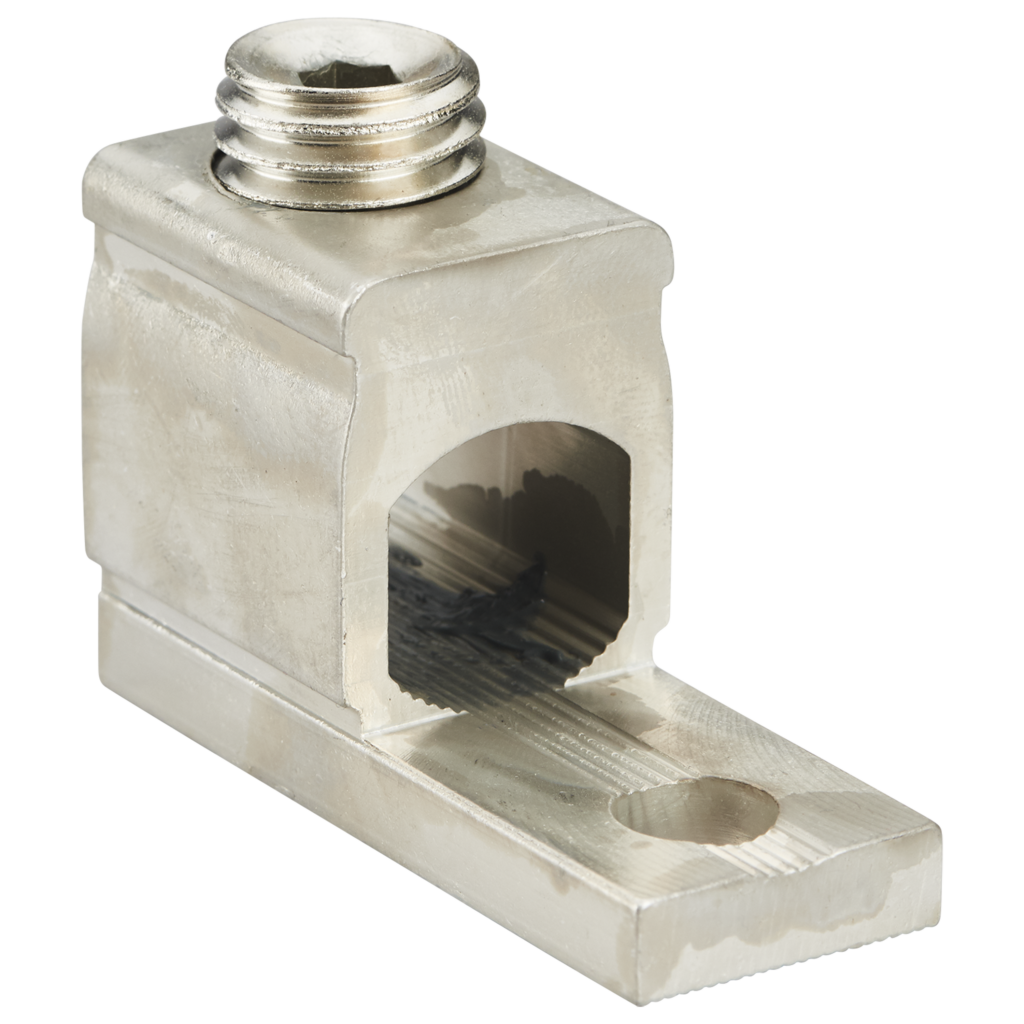

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
16-50
Cu (mm²)
2,5-50
Depth
20 mm
ETIM Class
EC000897
E-number FI
1942087
GTIN
6419410378571
Height
42 mm
In Al
160.0
In Cu
160.0
Key size
Hex 5
Net weight
0.0408 kg
Product type
KKL1X50
Short product description
Cable connector KKL 1xAl/Cu 2,5-50mm2
Torque Al/Cu (Nm)
5 (2,5-16mm²) / 10 (25-50mm²)
Volume
0.0118 l
Width
14 mm
Dimensional drawing
Logistical data
Package size 1
25
Downloadables
- Dimensional drawings media (dd359ed3f3589debcbeebffee72daa75d9946768_ConnectSafe_KKL1X50_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
