KKL2X150VM

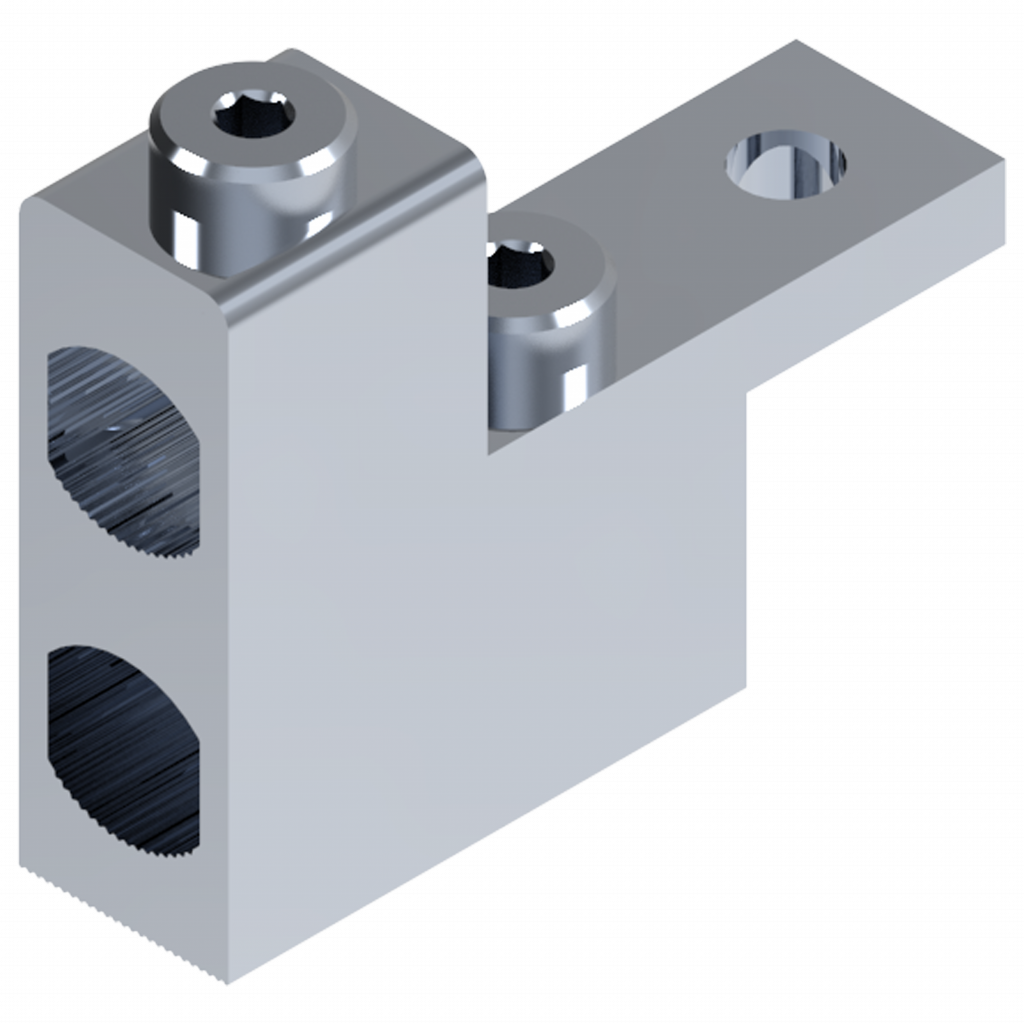

Cable connector KKL 2xAl/Cu 25-150mm2

KKL2X150VM

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.

Product Number
48430
E-number FI
1942111
In Cu
640
In Al
500
Cu (mm²)
25-150
Al (mm²)
25-150
Package size 1
3
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410484302
Al (mm²)
25-150
Cu (mm²)
25-150
Depth
71 mm
ETIM Class
EC000897
E-number FI
1942111
Height
94.5 mm
In Al
500.0
In Cu
640.0
Key size
Hex 6
Net weight
0.3734 kg
Product type
KKL2X150VM
Short product description
Cable connector KKL 2xAl/Cu 25-150mm2
Torque Al/Cu (Nm)
12 (25-50 mm²) / 22 (70-95 mm²) / 38 (120-150 mm²)
Volume
0.1711 l
Width
25.5 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
3
Package size 1 GTIN code
6419410484302
Package size 1 weight
0.3734 kg

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
